365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower (2001) 54" Deck Assembly Parts Diagram

36" Zero-Turn Mower

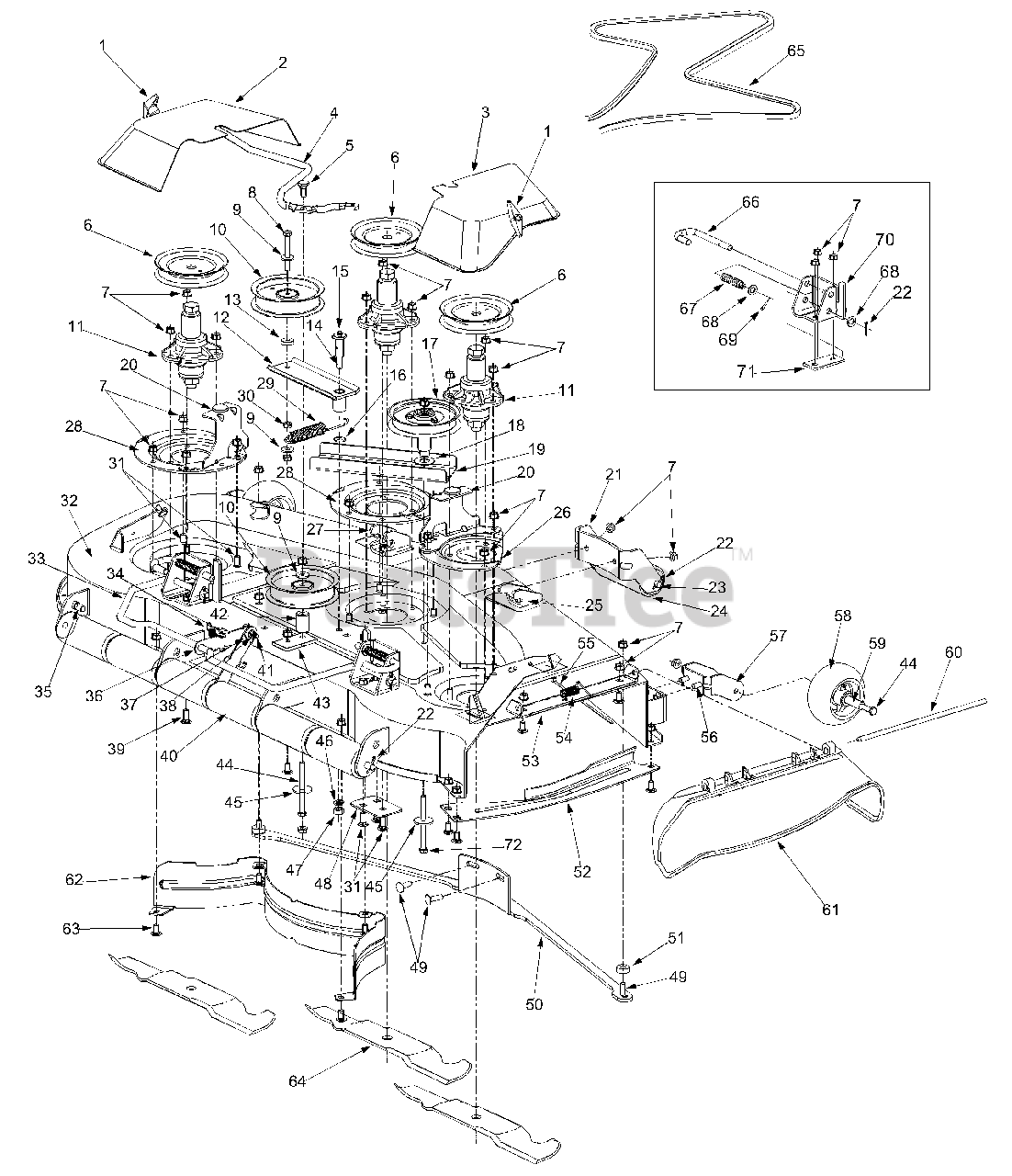

54" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 720-0241

Wing Nut Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 703-2817

Belt Cover LH

Variations

Cub Cadet 703-2817-0498

USE 703-2817-0637 COVER:BELT: - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2817-0637

COVER:BELT:LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2817-0648

USE 703-2817-0637 COVER:BELT: - TECH GRAY (0648)

$

$

Not available

$

$

3

Cub Cadet 703-2816

Belt Cover RH

Variations

Cub Cadet 703-2816-0498

COVER:BELT:RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2816-0637

BELT COVER (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 747-3306

Idler Spring Mounting Rod

$

$

Not available

5

Cub Cadet 738-0380

Shoulder Screw 3/8-16

$7.99

$

In Stock, only 1 left!

0

6

Cub Cadet 756-3106

Pulley
(Superseded to 756-04459A)

$33.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

9

Cub Cadet 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 756-3105

Idler Pulley 5.0

$73.99

$

In Stock, only 3 left!

0

11

Cub Cadet 603-0690

Deck Spindle Ass'y

$

$

Not available

12

Cub Cadet 603-0469A

Idler Bearing Arm Ass'y

Variations

Cub Cadet 603-0469A-0637

IDLER BEARING ARM ASS'Y - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 711-0242

Spacer

$4.49

$

In Stock, Qty 9

0

14

Cub Cadet 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

15

Cub Cadet 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

16

Cub Cadet 736-3015

Flat Washer .469 ID x .875 OD
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 603-0407

Idler Pulley Ass'y 5.0

$

$

Not available

18

Cub Cadet 736-0316

Flat Washer .78 ID x 1.59 OD

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 703-2849

Channel
(Superseded to 703-2849-0637)

Variations

Cub Cadet 703-2849-0637

CHANNEL - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 703-0326

Front End Deck Bracket LH

$

$

Currently unavailable

21

Cub Cadet 703-2091A

Front Roller Bracket

Variations

Cub Cadet 703-2091A-0498

Front Roller Bracket - OLD CUB YELLOW (0498)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2091A-0637

Front Roller Bracket - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2091A-0648

Front Roller Bracket - TECH GRAY (0648)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet 711-3314

Roller Pin
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

24

Cub Cadet 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

25

Cub Cadet 703-2430

Front End Deck Bracket RH

Variations

Cub Cadet 703-2430-0498

Front End Deck Bracket, RH - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2430-0648

FRONT END DECK BRACKET (RH) - TECH GRAY (0648)

$

$

Not available

$

$

26

Cub Cadet 703-2090

Reinforcement Disk RH

Variations

Cub Cadet 703-2090-0498

USE 703-2090-0716 DISK-REINFO - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2090-0637

USE 703-2090-0716 DISK-REINFO - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2090-0716

DISK-REINFORCE RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

Cub Cadet 703-2767

Front End Deck Bracket LH

Variations

Cub Cadet 703-2767-0498

BRACKET DECK FRT (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2767-0637

BRACKET DECK FRT (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 703-2089A

Reinforcement Disk
(Superseded to 703-2089A-0637)

Variations

Cub Cadet 703-2089A-0637

DISK-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 732-0971

Extension Spring

$23.99

$

In Stock, only 1 left!

0

30

Cub Cadet 712-0375

Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

31

Cub Cadet 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 603-0325

Mower Deck Ass'y

Variations

Cub Cadet 603-0325-0498

54" MOWER DECK - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0325-0637

54" MOWER DECK - POWDER BLACK (0637)

$

$

Not available

$

$

33

Cub Cadet 747-3297A

Deck Support Rod

$

$

Not available

34

Cub Cadet 732-0395

Extension Spring .50 OD x 2.51 Lg
(Superseded to 932-0395)

$

$

Not available

35

Cub Cadet 711-1103

Pin Roller

$

$

Not available

36

Cub Cadet 703-2929

Deck Support Link

Variations

Cub Cadet 703-2929-0498

DECK SUPPORT LINK - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2929-0637

LINK-DECK SUPPORT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 736-0231

Flat Washer .344 ID x 1.125 OD

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

41

Cub Cadet 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 750-3243

Spacer

$

$

Not available

43

Cub Cadet 703-3381

Idler Support Plate

Variations

Cub Cadet 703-3381-0637

PLATE-IDLER SUPPOR - POWDER BLACK (0637)

$

$

Not available

$

$

44

Cub Cadet 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 12

0

45

Cub Cadet 736-0227

Flat Washer

$6.49

$

In Stock, Qty 13

0

46

Cub Cadet 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

47

Cub Cadet 712-3019

Hex Nut 7/16-14

$6.99

$

In Stock, only 1 left!

0

48

Cub Cadet 703-2988

Support Plate

Variations

Cub Cadet 703-2988-0637

SUPPORT PLATE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

49

Cub Cadet 710-3034

Carriage Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

50

Cub Cadet 603-0144

Front Bar

Variations

Cub Cadet 603-0144-0498

BAR-54" FRONT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0144-0648

BAR-54" FRONT - TECH GRAY (0648)

$

$

Not available

$

$

51

Cub Cadet 750-3119

Spacer

$11.99

$

In Stock, only 4 left!

0

52

Cub Cadet 703-2099

Finger Guard
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 703-2099-0498

Finger Guard, Black - OLD CUB YELLOW (0498)

$69.99

$

In Stock, Qty 20+

0

Cub Cadet 703-2099-0637

Finger Guard, Black - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 20+

0

Cub Cadet 703-2099-0716

Finger Guard, Black - CUB YELLOW-99 (0716)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

53

Cub Cadet 703-2392

Bracket
(Superseded to 631-04070C)

Variations

Cub Cadet 703-2392-0498

Deflector Chute Assembly - OLD CUB YELLOW (0498)

$122.99

$

In Stock, only 4 left!

0

Cub Cadet 703-2392-0637

Deflector Chute Assembly - POWDER BLACK (0637)

$122.99

$

In Stock, only 4 left!

0

Cub Cadet 703-2392-0648

Deflector Chute Assembly - TECH GRAY (0648)

$122.99

$

In Stock, only 4 left!

0

$122.99

$

In Stock, only 4 left!

0

54

Cub Cadet 732-3070

Torsion Spring
(Superseded to 732-3070A)

$11.99

$

In Stock, only 4 left!

0

55

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 710-3001

Hex Cap Screw 3/8-16 x .880

$7.49

$

In Stock, Qty 9

0

57

Cub Cadet 703-2410

Castor Bracket

Variations

Cub Cadet 703-2410-0498

Deck Wheel Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2410-0637

BRACKET-DECK WHEEL PWDR BLK - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2410-0648

BRACKET-DECK - TECH GRAY (0648)

$

$

Not available

$

$

58

Cub Cadet 634-3159

Wheel Complete

$34.99

$

In Stock, Qty 20+

0

59

Cub Cadet 750-3193

Spacer

$18.99

$

In Stock, Qty 20+

0

60

Cub Cadet 711-3318

Hinge Pin

$

$

Not available

61

Cub Cadet 731-3131

Deflector Chute
(Superseded to 931-3131A)

$108.99

$

In Stock, only 4 left!

0

62

Cub Cadet 703-2093

Inner Baffle
(Superseded to 703-2093C)

Variations

Cub Cadet 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2093-0716

Inner Rear Baffle, Black - CUB YELLOW-99 (0716)

$96.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 710-3178

Carriage Bolt 3/8 - 16

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 742-3013

Blade
(Superseded to 759-3820)

Variations

Cub Cadet 742-3013-0637

Mower Blade, 18.50" Lg Hi-Lift - POWDER BLACK (0637)

$35.99

$

In Stock, Qty 6

0

$35.99

$

In Stock, Qty 6

0

65

Cub Cadet 754-3078

Belt
(Superseded to 954-3078)

$

$

Not available

Cub Cadet 754-3083

Belt
(Superseded to 954-3083)

$147.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 747-3013

Support Pin

$22.99

$

In Stock, only 2 left!

0

67

Cub Cadet 732-0802

Compression Spring

$4.49

$

In Stock, only 1 left!

0

68

Cub Cadet 736-0160

Flat Washer .536 ID x .93 OD

$4.49

$

In Stock, only 2 left!

0

69

Cub Cadet 715-3003

Spring Pin

$6.99

$

In Stock, Qty 7

0

70

Cub Cadet 603-0351

Rear Hanger Bracket LH

Variations

Cub Cadet 603-0351-0498

BRACKET. HANGER LH RR - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0351-0637

HANGER BRACKET (LH) RR - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 603-0350

Rear Hanger Bracket RH

Variations

Cub Cadet 603-0350-0498

USE 603-0350-0637 BRACKET. HA - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0350-0637

BRACKET. HANGER RH RR - POWDER BLACK (0637)

$

$

Not available

$

$

71

Cub Cadet 703-2683

Rear Hanger Bracket Spacer

Variations

Cub Cadet 703-2683-0637

SPACER-HANGER BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

72

Cub Cadet 710-0693

Hex Cap Screw 3/8-16 x 4.5

$14.99

$

In Stock, only 2 left!

0
