365 - Husqvarna Chainsaw CYLINDER PISTON 7 Parts Diagram

Chainsaw

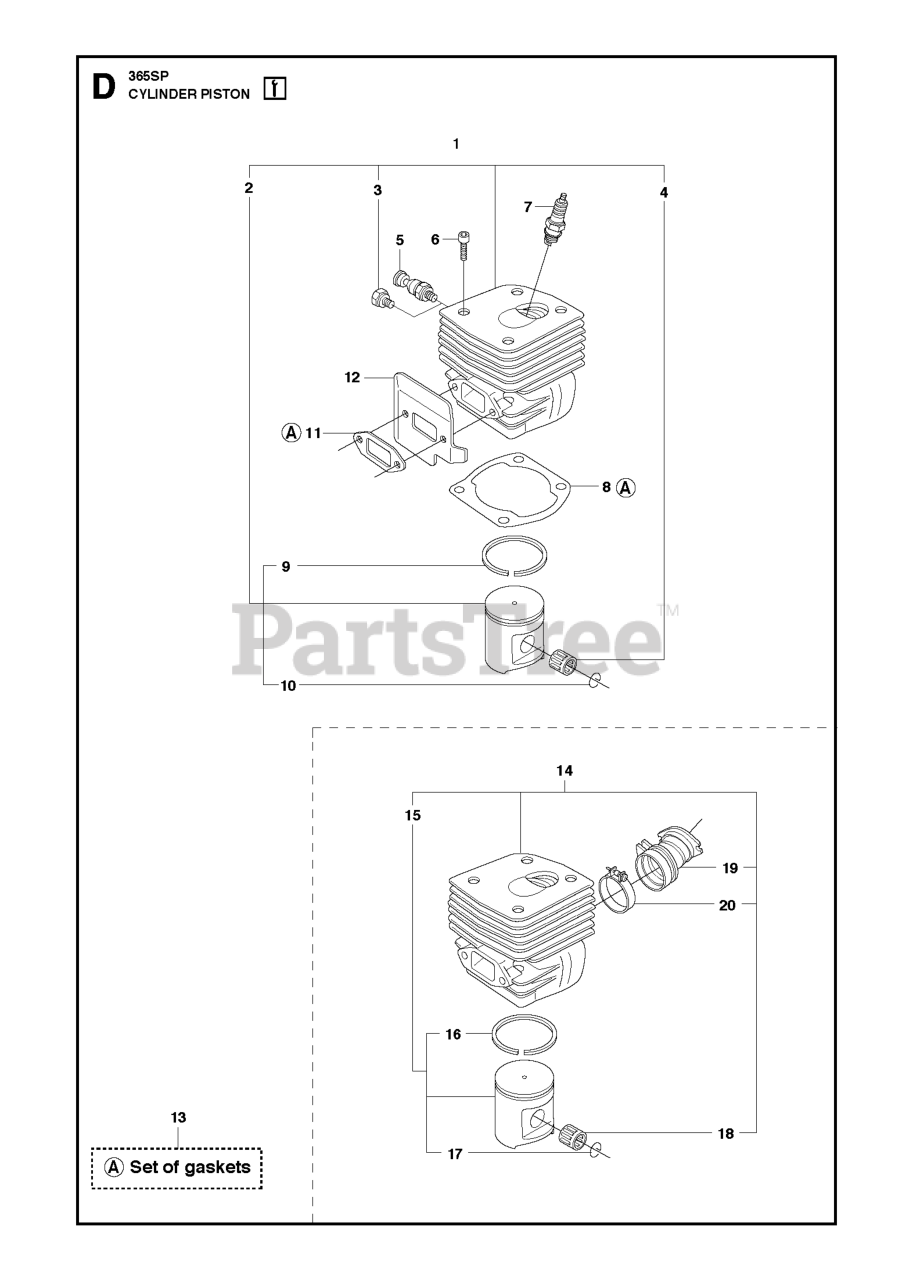

CYLINDER PISTON 7 Parts Diagram

  • Title

6

Husqvarna 525824903

SCREW ITXSCM M5X25 T27 12.9 T

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 577572401

NEEDLE BEARING PISTON PIN 12X1

$21.99

$

In Stock, only 1 left!

0

17

Husqvarna 737431200

WRIST PIN CLIP

Note: For 967 08 24 s/n up to 20100400017

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 503691303

PISTON CPL 48 MM
(Superseded to 581968502)

Note: For 967 08 24 s/n up to 20100400017

$157.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503939003

CYLINDER
(Superseded to 503939005)

Note: For 967 08 24 s/n up to 20100400017

$169.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503647201

GASKET SET

Note: A = Set of gaskets

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503715301

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 505283301

CLAMP
(Superseded to 505283309)

Note: For 967 08 24 s/n up to 20100400017

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 577572401

NEEDLE BEARING PISTON PIN 12X1

Note: For 967 08 24 s/n up to 20100400017

$21.99

$

In Stock, only 1 left!

0

12

Husqvarna 503775802

DEFLECTOR

$6.99

$

In Stock, only 1 left!

0

1

Husqvarna 503939007

CYLINDER ASSY

$169.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503961501

GASKET

$9.49

$

In Stock, Qty 6

0

10

Husqvarna 737431200

WRIST PIN CLIP

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

Note: BPMR7A

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 503289015

PISTON RING

$31.99

$

In Stock, only 3 left!

0

19

Husqvarna 503964501

INTAKE PIPE - EPA

Note: For 967 08 24 s/n up to 20100400017

$11.99

$

In Stock, only 1 left!

0

2

Husqvarna 581968502

PISTON CPL 48 MM

$157.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

11

Husqvarna 503775901

GASKET

$9.49

$

In Stock, only 3 left!

0

16

Husqvarna 503289015

PISTON RING

Note: For 967 08 24 s/n up to 20100400017

$31.99

$

In Stock, only 3 left!

0
