365 - Husqvarna Chainsaw (SN: 20020100001 - 20034400000) CARBURETOR DETAILS 3 Parts Diagram

Chainsaw

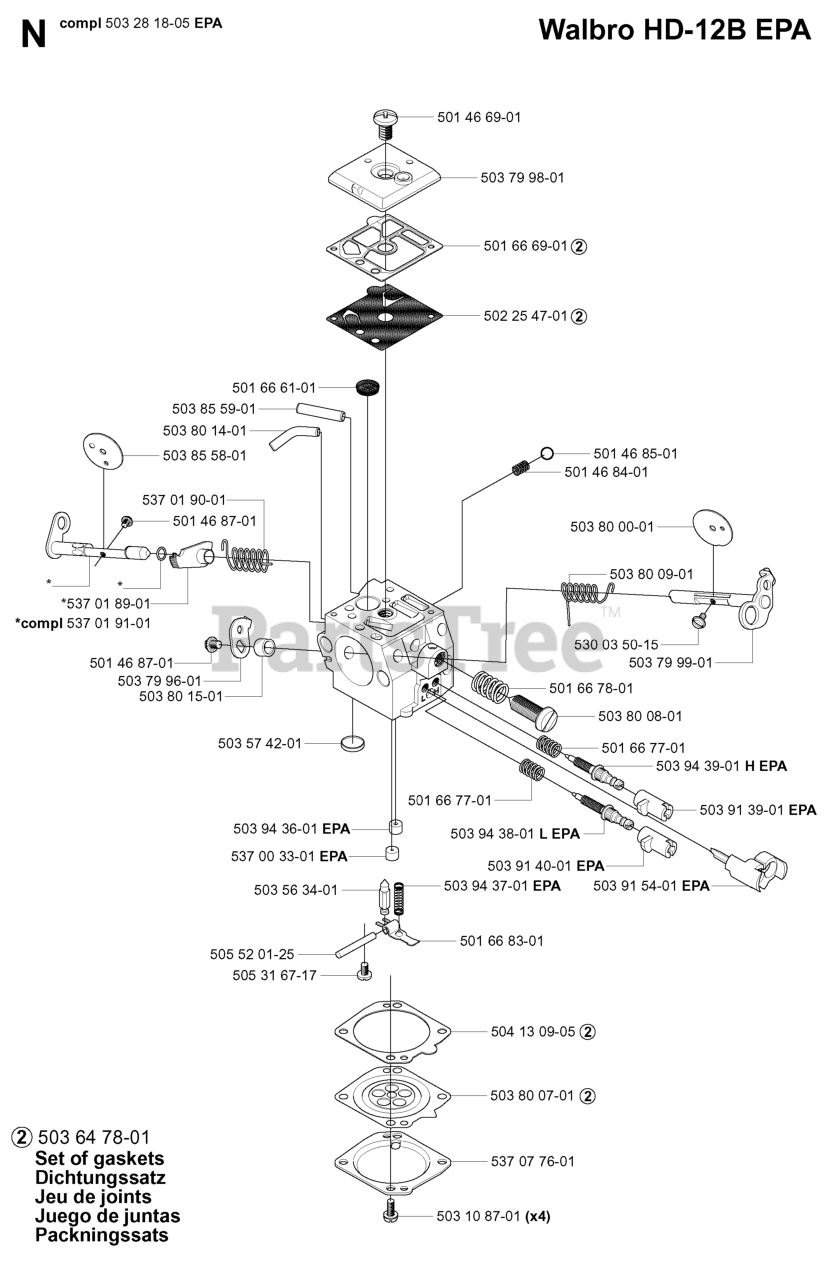

CARBURETOR DETAILS 3 Parts Diagram

  • Title

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

Usually ships in 3-10 days

0

501 46 69-01

Husqvarna 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

501 66 83-01

Husqvarna 501668301

LEVER

$17.99

$

Usually ships in 3-10 days

0

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

503 94 37-01

Husqvarna 503943701

SPRING

Note: EPA

$

$

Not available

503 94 38-01

Husqvarna 503943801

ADJUSTING SCREW

Note: L EPA

$10.99

$

In Stock, only 1 left!

0

537 01 90-01

Husqvarna 537019001

SPRING

$10.99

$

In Stock, only 4 left!

0

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$7.99

$

In Stock, only 4 left!

0

503 80 09-01

Husqvarna 503800901

SPRING

$10.99

$

Usually ships in 3-10 days

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 9

0

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

502 25 47-01

Husqvarna 502254701

PUMP DIAPHRAGM

Note: 503 64 78-01 SET OF GASKETS

$22.99

$

In Stock, only 2 left!

0

503 80 15-01

Husqvarna 503801501

BUSHING

$13.99

$

In Stock, only 1 left!

0

537 07 76-01

Husqvarna 537077601

IMPULSE COVER

$6.49

$

Usually ships in 3-10 days

0

537 01 89-01

Husqvarna 537018901

LEVER

$4.99

$

In Stock, only 1 left!

0

503 91 54-01

Husqvarna 503915401

CAP

Note: EPA

$9.49

$

Usually ships in 3-10 days

0

537 01 91-01

Husqvarna 537019101

CHOKE SHAFT

$14.99

$

Usually ships in 3-10 days

0

503 79 98-01

Husqvarna 503799801

COVER

$6.99

$

Usually ships in 3-10 days

0

501 46 87-01

Husqvarna 501468701

SCREW

$7.99

$

Usually ships in 3-10 days

0

503 28 18-05

Husqvarna 503281805

CARBURETOR HD-12B EPA WALBRO

Note: EPA

$113.99

$

In Stock, only 1 left!

0

503 80 14-01

Husqvarna 503801401

TUBE

$4.99

$

In Stock, only 4 left!

0

503 85 59-01

Husqvarna 503855901

RP NIPPLE

$17.30

$

Usually ships in 3-10 days

0

503 80 08-01

Husqvarna 503800801

SCREW

$22.99

$

Usually ships in 3-10 days

0

503 80 07-01

Husqvarna 503800701

GASKET

Note: 503 64 78-01 SET OF GASKETS

$74.99

$

Usually ships in 3-10 days

0

501 66 77-01

Husqvarna 501667701

SPRING

$9.49

$

In Stock, only 3 left!

0

503 85 58-01

Husqvarna 503855801

CHOKE FLAP

$4.99

$

In Stock, only 1 left!

0

503 91 39-01

Husqvarna 503913901

LIMITER CAP

Note: EPA

$

$

Not available

537 00 33-01

Husqvarna 537003301

JET

Note: EPA

$6.99

$

Usually ships in 3-10 days

0

503 79 96-01

Husqvarna 503799601

LEVER

$4.99

$

Usually ships in 3-10 days

0

503 94 39-01

Husqvarna 503943901

IDLE SCREW

Note: H EPA

$17.99

$

Usually ships in 3-10 days

0

503 79 99-01

Husqvarna 503799901

SHAFT

$13.99

$

Usually ships in 3-10 days

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

504 13 09-05

Husqvarna 504130905

GASKET

Note: 503 64 78-01 SET OF GASKETS

$3.49

$

In Stock, Qty 5

0

503 94 36-01

Husqvarna 503943601

JET

Note: EPA

$10.99

$

Usually ships in 3-10 days

0

503 91 40-01

Husqvarna 503914001

LIMITER CAP

Note: EPA

$5.99

$

In Stock, only 1 left!

0

501 66 69-01

Husqvarna 501666901

GASKET, PUMP SIDE

Note: 503 64 78-01 SET OF GASKETS

$17.99

$

In Stock, Qty 6

0

503 80 00-01

Husqvarna 503800001

THROTTLE FLAP

$5.99

$

Usually ships in 3-10 days

0

501 46 85-01

Husqvarna 501468501

BALL

$7.99

$

Usually ships in 3-10 days

0

505 31 67-17

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

501 46 84-01

Husqvarna 501468401

SPRING

$7.99

$

In Stock, only 1 left!

0

530 03 50-15

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available
