365 - Husqvarna Chainsaw (SN: 19991400001 - 19994699999) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

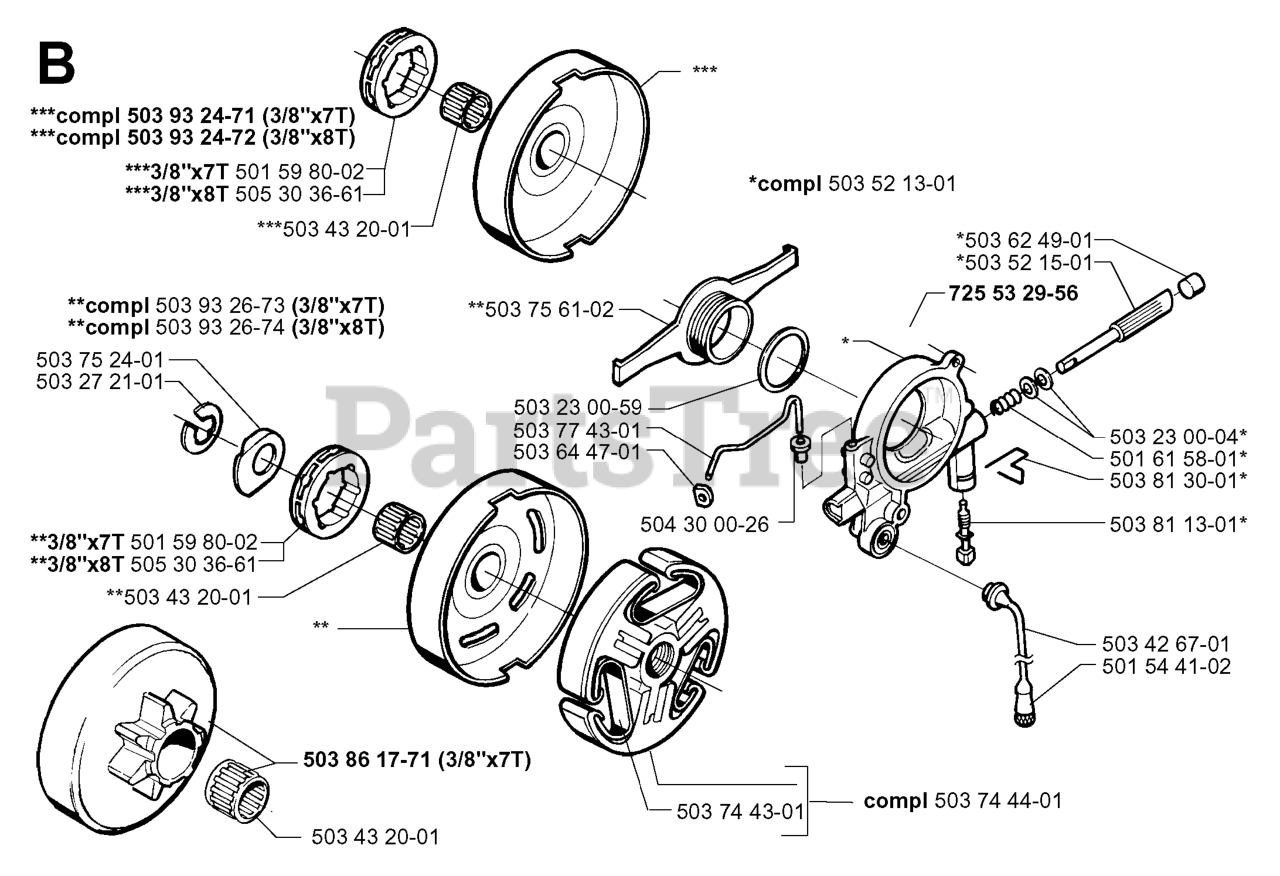

CLUTCH & OIL PUMP Parts Diagram

  • Title
503 74 44-01

Husqvarna 503744401

CLUTCH
(Superseded to 586798401)

$56.99

$

In Stock, only 1 left!

0

501 59 80-02

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3/8X7T

$8.49

$

In Stock, Qty 5

0

503 93 24-71

Husqvarna 503932471

CLUTCH DRUM
(Superseded to 586980601)

Note: 3/8X7T

$78.99

$

In Stock, only 3 left!

0

503 77 43-01

$11.99

$

In Stock, only 1 left!

0

503 27 21-01

Husqvarna 503272101

RETAINING RING

$3.99

$

In Stock, Qty 14

0

503 75 24-01

$6.49

$

In Stock, Qty 6

0

503 43 20-01

Husqvarna 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, only 4 left!

0

503 64 47-01

$6.99

$

In Stock, only 1 left!

0

503 75 61-02

Husqvarna 503756102

GEAR WHEEL
(Superseded to 582270107)

$21.99

$

In Stock, Qty 15

0

503 81 13-01

$4.99

$

In Stock, only 2 left!

0

503 93 26-73

Husqvarna 503932673

CLUTCH DRUM
(Superseded to 586980601)

Note: 3/8X7T

$78.99

$

In Stock, only 3 left!

0

503 86 17-71

Husqvarna 503861771

CLUTCH DRUM
(Superseded to 503861703)

Note: 3/8X7T

$51.99

$

In Stock, only 1 left!

0

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 2 left!

0

505 30 36-61

Husqvarna 505303661

22273 Sprocket 3/8"x8T
(Superseded to 640200216)

Note: 3/8X8T

$7.99

$

Usually ships in 3-10 days

0

503 52 15-01

Husqvarna 503521501

PUMP PISTON

$17.99

$

Usually ships in 3-10 days

0

504 30 00-26

$4.99

$

In Stock, Qty 6

0

503 93 26-74

Husqvarna 503932674

CLUTCH DRUM
(Superseded to 586980602)

Note: 3/8X8T

$66.99

$

Usually ships in 3-10 days

0

503 74 43-01

Husqvarna 503744301

CLUTCH SPRING

$7.99

$

In Stock, only 2 left!

0

503 52 13-01

Husqvarna 503521301

OIL PUMP
(Superseded to 503521305)

$109.99

$

In Stock, only 2 left!

0

503 23 00-04

Husqvarna 503230004

WASHER 6.1X9

$4.99

$

Usually ships in 3-10 days

0

725 53 29-56

Husqvarna 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$7.99

$

In Stock, Qty 20+

0

503 42 67-01

$18.99

$

Usually ships in 3-10 days

0

503 23 00-59

$4.99

$

In Stock, only 1 left!

0

503 62 49-01

$8.99

$

Usually ships in 3-10 days

0

501 61 58-01

$6.99

$

Usually ships in 3-10 days

0

503 81 30-01

Husqvarna 503813001

SPRING CLIP

$4.99

$

In Stock, only 2 left!

0

503 93 24-72

Husqvarna 503932472

CLUTCH DRUM
(Superseded to 586980602)

Note: 3/8X8T

$66.99

$

Usually ships in 3-10 days

0
