365 (53CA1B6K100) - Cub Cadet 36" Zero-Turn Mower Engine Flywheel & Starter (Model 365) Parts Diagram

36" Zero-Turn Mower

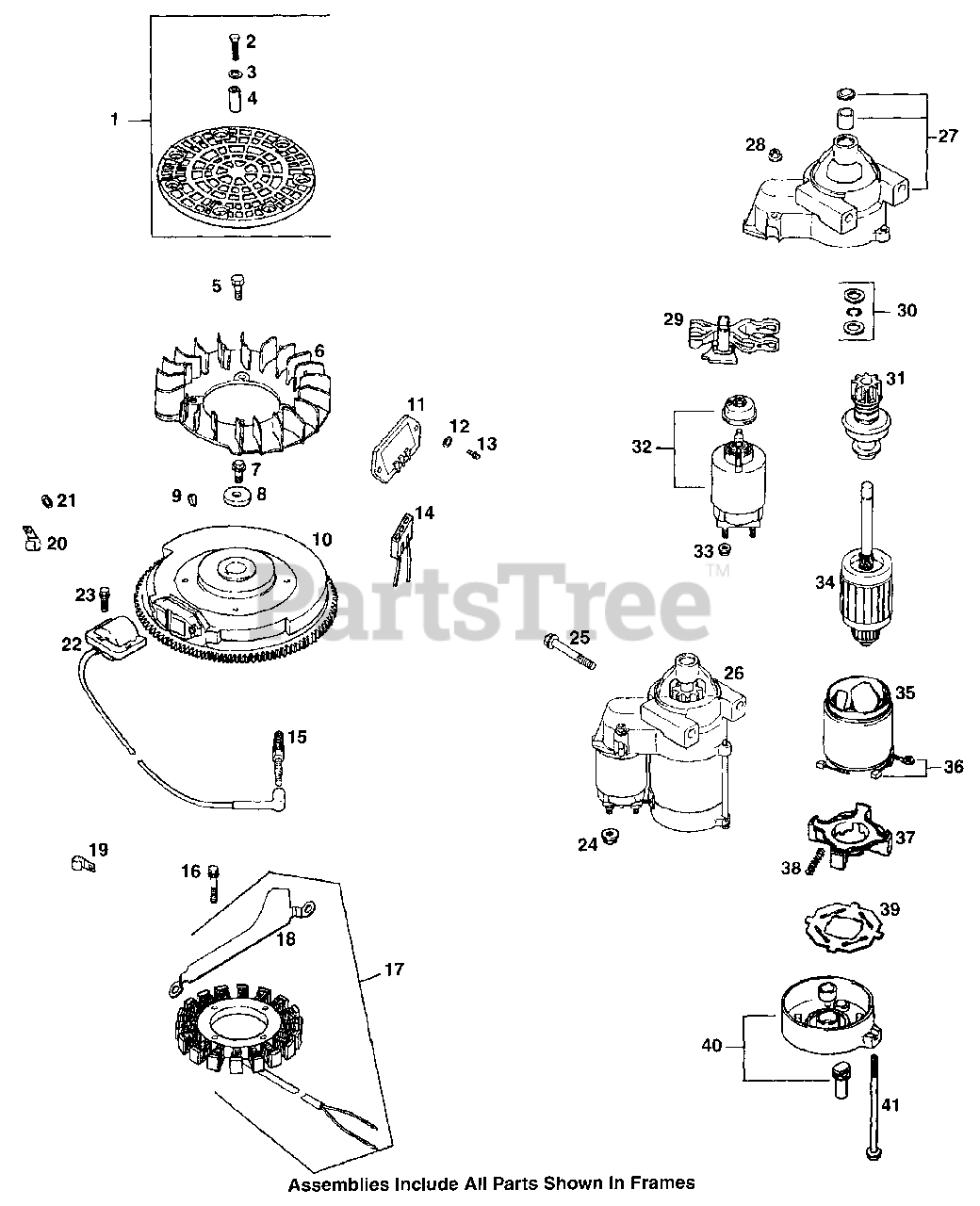

Engine Flywheel & Starter (Model 365) Parts Diagram

  • Title

1

Cub Cadet KH-54-755-15

Grass Screen Kit

$

$

Not available

2

Cub Cadet KH-M-403025

Hex Cap Screw, M4 x.7 x 25

$

$

Not available

3

Cub Cadet KH-X-25-92

Washer, 5/16

$

$

Not available

4

Cub Cadet KH-24-112-04

Grass Screen Spacer

$

$

Not available

5

Cub Cadet KH-25-086-47

Shoulder Bolt, M6 x 1.0 x 16

$

$

Not available

6

Cub Cadet KH-24-157-03

Fan
(Superseded to KH-24-755-253-S)

$50.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-12-086-14

Hex Flange Screw, M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$4.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-12-468-03

Washer, 3/8

$

$

Not available

9

KH-x-42-15

Key

$

$

Not available

10

Cub Cadet KH-24-025-04

Flywheel
(Superseded to KH-24-025-55-S)

$310.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-25-403-03

Regulator Rectifier
(Superseded to KH-41-403-10-S)

$126.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-X-25-92

Washer, 3/16

$

$

Not available

13

Cub Cadet KH-24-086-18

Phillips Head Screw, 11-16 x 7/8

$

$

Not available

14

Cub Cadet KH-236602

Three Contact Connector
(Superseded to KH-25-155-41-S)

$29.99

$

In Stock, only 2 left!

0

15

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-M-548025

Hex Cap Screw, M5 x .8 x 25

$

$

Currently unavailable

17

Cub Cadet KH-54-755-09

Stator Kit, 15A
(Superseded to KH-237878)

$

$

Not available

18

Cub Cadet KH-24-126-71

Stator Wire Bracket
(Superseded to KH-24-126-139-S)

$19.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-235173

Cable Clip

$

$

Not available

20

Cub Cadet KH-48-154-02

Cable Clip

$

$

Not available

21

Cub Cadet KH-X-25-63

Washer, 1/4

$

$

Not available

22

Cub Cadet KH-24-584-01

Ignition Module
(Superseded to KH-24-584-45-S)

$116.99

$

Usually ships in 3-6 days

0

23

Cub Cadet KH-M-545020

Hex Flange Screw, M5 x .8 x 20

$

$

Currently unavailable

24

Cub Cadet KH-M-841080

Hex Flange Nut, M8 x 1.25
(Superseded to 712-3086)

$4.99

$

In Stock, only 3 left!

0

25

Cub Cadet KH-M-839080

Hex Flange Screw, M8 x 1.25 x 80
(Superseded to KH-M-851080-S)

$4.49

$

In Stock, only 1 left!

0

26

Cub Cadet KH-12-098-03

Starter Assembly
(Superseded to KH-25-098-24-S)

Note: (Nippon Denso)

$368.99

$

In Stock, only 4 left!

0

27

Cub Cadet KH-12-081-02

Drive End Cap

$

$

Not available

28

Cub Cadet KH-52-100-10

Starter Nut

$

$

Not available

29

Cub Cadet KH-12-090-10

Drive Lever

$

$

Not available

30

Cub Cadet KH-24-755-84

Starter Repair Kit

$

$

Not available

31

Cub Cadet KH-21-239-01

Pinion Drive

$

$

Currently unavailable

32

Cub Cadet KH-52-435-02

Solenoid

$651.99

$

Usually ships in 2-5 days

0

33

Cub Cadet KH-52-100-09

Starter Nut

$

$

Not available

34

Cub Cadet KH-12-170-03

Armature

$

$

Not available

35

Cub Cadet KH-12-471-01

Frame

$

$

Not available

36

Cub Cadet KH-52-221-01

Brush Kit

$

$

Not available

37

Cub Cadet KH-52-323-03

Brush Holder

$

$

Not available

38

Cub Cadet KH-52-089-09

Brush Spring

$

$

Not available

39

Cub Cadet KH-52-168-01

Starter Insulator

$

$

Not available

40

Cub Cadet KH-12-301-01

Commutator End Cap

$

$

Not available

41

Cub Cadet KH-52-211-05

Thru Bolt

$

$

Not available

Cub Cadet KH-54-755-02

Wiring Harness Kit
(Superseded to KH-54-755-02-S)

$150.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-113-18

Grass Screen Decal

$

$

Currently unavailable

Cub Cadet KH-M-839080

Screw, hex. flange M8x1.25x80
(Superseded to KH-M-851080-S)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet KH-M-0841080

Nut, hex. flange M8x1.25
(Superseded to 712-3086)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$4.99

$

In Stock, only 3 left!

0

Cub Cadet KH-25-098-09-S

Starter assembly solenoid shift (Delco)
(Superseded to KH-25-098-24-S)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$368.99

$

In Stock, only 4 left!

0

Cub Cadet KH-25-755-33-S

Kit, pinion drive

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$

$

Not available

Cub Cadet KH-25-141-05-S

Ring

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$

$

Not available

Cub Cadet KH-25-221-01-S

Kit, brush

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$81.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-435-05-S

Kit
(Superseded to KH-25-435-06-S)

Note: (Includes 3 Torx head screws), solenoid (plunger is part of the solenoid); Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$243.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-086-113-S

Screw, external Torx head M4x0.7x26

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$18.99

$

Usually ships in 2-5 days

0
