365 (53CA1B6K100) - Cub Cadet 36" Zero-Turn Mower Engine Controls & Blower Housing (Model 365) Parts Diagram

36" Zero-Turn Mower

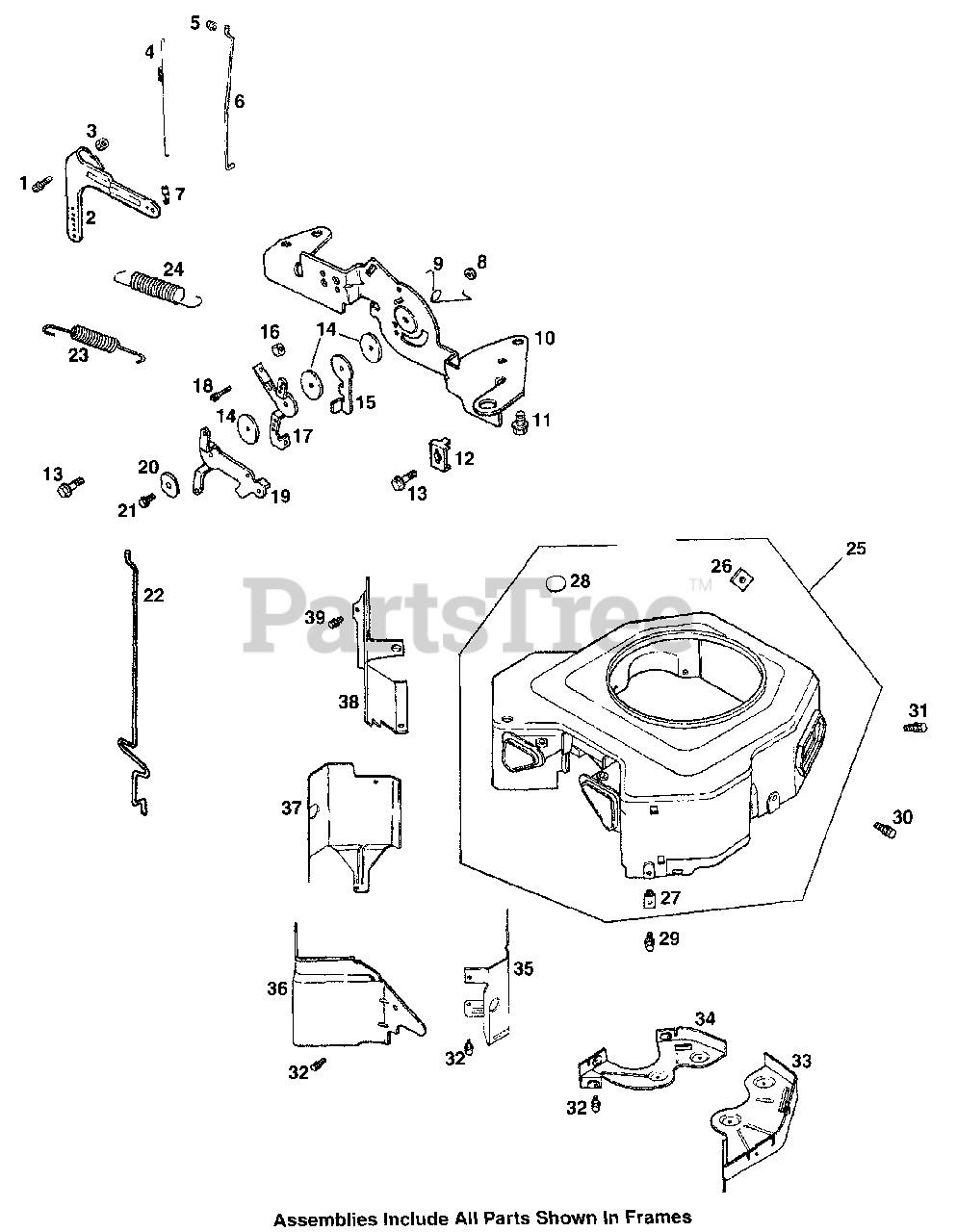

Engine Controls & Blower Housing (Model 365) Parts Diagram

  • Title

1

Cub Cadet KH-SM-642025

Hex Flange Screw
(Superseded to KH-M-642025-S)

Note: (Before Ser# 3004000017)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-211-03

Rd Hd Sq Neck Bolt

Note: (After Ser# 3004000017)

$

$

Currently unavailable

2

Cub Cadet KH-24-090-14

Governor Lever

Note: (Before Ser# 3004000017)

$

$

Not available

Cub Cadet KH-24-090-33

Governor Lever

Note: (After Ser# 3004000017)

$

$

Currently unavailable

3

Cub Cadet KH-M-641060

Hex Flange Nut, M6 x 1.0

$

$

Currently unavailable

4

Cub Cadet KH-24-089-01

Linkage Spring

$

$

Not available

5

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Throttle Linkage

$

$

Not available

7

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

8

Cub Cadet KH-M-547050

Hex Nut, M5 x.8

$

$

Currently unavailable

9

Cub Cadet KH-24-089-03

Choke Return Spring

$

$

Not available

10

Cub Cadet KH-24-126-56

Control Bracket
(Superseded to KH-24-126-176-S)

$

$

Not available

11

Cub Cadet KH-M-645016

Hex Flange Screw, M6 x 1.0 x 16

$

$

Currently unavailable

12

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-M-545016

Hex Flange Screw, M6 x.8 x 16

$

$

Currently unavailable

14

Cub Cadet KH-24-468-01

Washer, 5mm

$

$

Not available

15

Cub Cadet KH-24-090-07

Throttle Actuator Lever
(Superseded to KH-24-090-65-S)

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet KH-M-446030

Hex Nut, M4 x.7

$

$

Currently unavailable

17

Cub Cadet KH-24-090-13

Throttle Control Lever

$

$

Not available

18

Cub Cadet KH-M-403025

Hex Cap Screw, M4 x.7 x 25

$

$

Not available

19

Cub Cadet KH-24-090-05

Choke Lever

$

$

Not available

20

Cub Cadet KH-41-468-03

Spring Washer, 1/4"

$

$

Not available

21

Cub Cadet KH-M-545020

Hex Flange Screw, M5 x.8 x 20

$

$

Currently unavailable

22

Cub Cadet KH-24-079-05

Choke Linkage

$

$

Currently unavailable

23

Cub Cadet KH-24-089-51

Throttle Limiter Spring

$

$

Currently unavailable

24

Cub Cadet KH-24-089-15

Governor Spring

Note: (Before Ser# 3004000017)

$

$

Not available

Cub Cadet KH-24-089-48

Governor Spring

Note: (After Ser# 3004000017)

$

$

Currently unavailable

25

Cub Cadet KH-24-027-20

Blower Housing
(Superseded to KH-24-027-477-S)

$111.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-24-100-01

Plastic Nut
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

27

Cub Cadet KH-24-100-02

Plastic Nut

$

$

Not available

28

Cub Cadet KH-25-139-16

Button Plug, 9/16"

$

$

Not available

29

Cub Cadet KH-M-545020

Hex Flange Screw, M5 x .8 x 20

$

$

Currently unavailable

30

Cub Cadet KH-M-545016

Hex Flange Screw, M5 x.8 x 16

$

$

Currently unavailable

31

Cub Cadet KH-M-551016

Hex Flange Screw, M5 x.8 x 16

$

$

Currently unavailable

32

Cub Cadet KH-M-645016

Hex Flange Screw, M6 x 1.0 x 16

$

$

Currently unavailable

33

Cub Cadet KH-24-146-16

Backing Plate, #2 Side
(Superseded to KH-24-146-16-S)

$

$

Not available

34

Cub Cadet KH-24-146-20

Backing Plate, #1 Side

$

$

Not available

35

Cub Cadet KH-24-063-20

Cylinder Barrel Baffle, #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

36

Cub Cadet KH-24-063-14

Valley Baffle, #2 Side

$

$

Currently unavailable

37

Cub Cadet KH-24-063-30

Cylinder Barrel Baffle, #1 Side

$

$

Not available

38

Cub Cadet KH-24-063-23

Valley Baffle, #1 Side

$

$

Currently unavailable

39

Cub Cadet KH-M-545010

Hex Flange Screw, M5 x .8 x 10
(Superseded to KH-M-0545010)

$

$

Not available
