365 (53CA1B6K100) - Cub Cadet 36" Zero-Turn Mower Engine Assembly (Model 365) Parts Diagram

36" Zero-Turn Mower

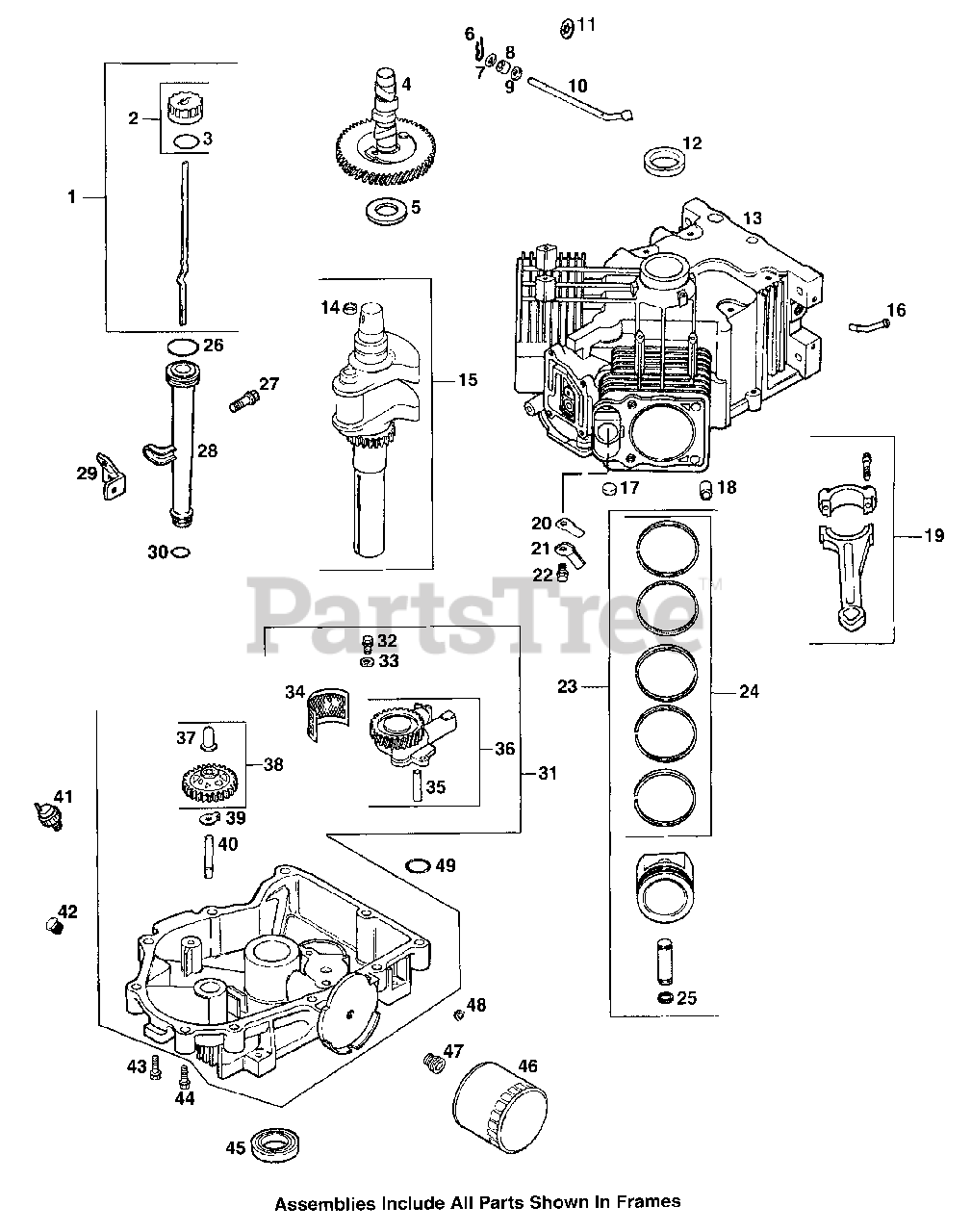

Engine Assembly (Model 365) Parts Diagram

  • Title

1

Cub Cadet KH-24-038-04

Dipstick Assembly
(Superseded to KH-24-038-04-S)

$19.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-25-755-13

Oil Fill Cap Kit

$

$

Not available

3

Cub Cadet KH-12-153-03

Dipstick O-Ring
(Superseded to KH-25-153-02-S)

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-012-10

Camshaft
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-12-422-09

Camshaft Shim (A.R.)
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-13

Camshaft Shim (A.R.)
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-07

Camshaft Shim (A.R.)
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Camshaft Shim (A.R.)
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-10

Camshaft Shim
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Camshaft Shim (A.R.)
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Camshaft Shim (A.R.)
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-12-380-04

Hitch Pin

Note: (Before Ser# 3004000017)

$

$

Not available

7

Cub Cadet KH-M-631005

Washer 6mm

Note: (Before Ser# 3004000017)

$

$

Not available

Cub Cadet KH-M-931010

Washer, 9mm

Note: (After Ser# 3004000017)

$

$

Currently unavailable

8

Cub Cadet KH-12-032-01

Seal

Note: (Before Ser# 3004000017)

$

$

Not available

Cub Cadet KH-28-032-09

Seal

Note: (After Ser# 3004000017)

$

$

Currently unavailable

9

Cub Cadet KH-X-25-102

Washer, 1/4"
(Superseded to KH-X-25-102-S)

Note: (Before Ser# 3004000017)

$2.49

$

In Stock, Qty 5

0

Cub Cadet KH-24-468-15

Washer, 1/4"

Note: (After Ser# 3004000017)

$

$

Currently unavailable

10

Cub Cadet KH-24-144-01

Gov. Shaft

Note: (Before Ser# 3004000017)

$

$

Not available

Cub Cadet KH-24-144-33

Gov. Shaft

Note: (After Ser# 3004000017)

$

$

Currently unavailable

11

Cub Cadet KH-24-018-09

Retainer Ring

Note: (After Ser# 3004000017)

$

$

Currently unavailable

12

Cub Cadet KH-24-032-01

Front Oil Seal
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-24-782-24

Crankcase

Note: (Miniblock Part Number)

$

$

Not available

14

Cub Cadet KH-52-139-09

Cup Plug (Crankshaft)
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-014-42

Crankshaft
(Superseded to KH-24-014-364-S)

$517.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

17

Cub Cadet KH-52-139-09

Cup Plug
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-12-380-17

Locating Pin
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

19

Cub Cadet KH-24-067-13

Connecting Rod (Std)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-067-14

Connecting Rod (.25)

$

$

Not available

20

Cub Cadet KH-24-402-05

Breather Reed
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet KH-24-018-04

Reed Retainer

$

$

Not available

22

Cub Cadet KH-M-545010

Hex Flange Screw, M5 x .8 x 10
(Superseded to KH-M-0545010)

$

$

Not available

23

Cub Cadet KH-24-874-01

Piston w/ Ring Set (Std)
(Superseded to KH-24-874-46-S)

$

$

Not available

Cub Cadet KH-24-874-02

Piston w/ Ring Set (.25)
(Superseded to KH-24-874-48-S)

$

$

Not available

Cub Cadet KH-24-874-19

Piston w/ Ring Set (.50)

$

$

Currently unavailable

Cub Cadet KH-24-874-14

Piston w/ Ring Set (.08)

$

$

Currently unavailable

24

Cub Cadet KH-24-108-01

Ring Set (Std)
(Superseded to KH-24-108-22-S)

$

$

Not available

Cub Cadet KH-24-108-02

Ring Set (.25)
(Superseded to KH-24-108-24-S)

$

$

Not available

Cub Cadet KH-24-108-03

Ring Set (.50)
(Superseded to KH-24-108-25-S)

$

$

Not available

25

Cub Cadet KH-24-018-01

Piston Pin Retainer
(Superseded to KH-24-018-01-S)

$2.99

$

In Stock, Qty 7

0

26

Cub Cadet KH-12-153-02

Upper Oil Fill Tube O-Ring
(Superseded to KH-12-153-02-S)

$2.49

$

In Stock, Qty 8

0

27

Cub Cadet KH-M-545016

Hex Flange Screw, M5 x.8 x 16

$

$

Currently unavailable

28

Cub Cadet KH-12-123-04

Oil Fill Tube
(Superseded to KH-32-755-04-S)

$

$

Not available

29

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet KH-12-153-01

Lower Oil Fill Tube O-Ring
(Superseded to KH-12-153-01-S)

$4.99

$

In Stock, Qty 16

0

31

Cub Cadet KH-24-199-07

Oil Pan Assembly
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

32

Cub Cadet KH-M-645025

Hex Flange Screw, M6 x 1.0 x 25

$

$

Currently unavailable

33

Cub Cadet KH-M-631005

Washer, 6mm

$

$

Not available

34

Cub Cadet KH-24-162-26

Oil Screen

$

$

Currently unavailable

35

Cub Cadet KH-24-123-05

Oil Pickup Tube
(Superseded to KH-24-381-11-S)

$

$

Not available

36

Cub Cadet KH-24-393-08

Oil Pump Assembly
(Superseded to KH-24-393-53-S)

$

$

Not available

37

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

38

Cub Cadet KH-24-043-12

Governor Gear Kit

$

$

Not available

39

Cub Cadet KH-52-448-02

Locking Tab
(Superseded to KH-24-448-01-S)

$2.49

$

In Stock, only 2 left!

0

40

Cub Cadet KH-12-144-02

Governor Gear Shaft

$

$

Not available

41

Cub Cadet KH-25-099-24

Pressure Switch
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0

42

Cub Cadet KH-52-139-02

Hex Head Plug, 3/8"

$

$

Not available

43

Cub Cadet KH-24-086-16

Hex Flange Screw, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

44

Cub Cadet KH-24-086-17

Hex Flange Screw, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

45

Cub Cadet KH-52-032-08

Oil Seal, PTO Side
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

46

Cub Cadet KH-12-050-01

Oil Filter
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

47

Cub Cadet KH-24-136-01

Oil Filter Nipple
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

48

Cub Cadet KH-X-75-32

Hex Countersunk Plug, 3/8"
(Superseded to KH-25-139-62-S)

$3.49

$

In Stock, only 2 left!

0

49

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

Cub Cadet KH-24-522-222

Short Block

$

$

Not available
