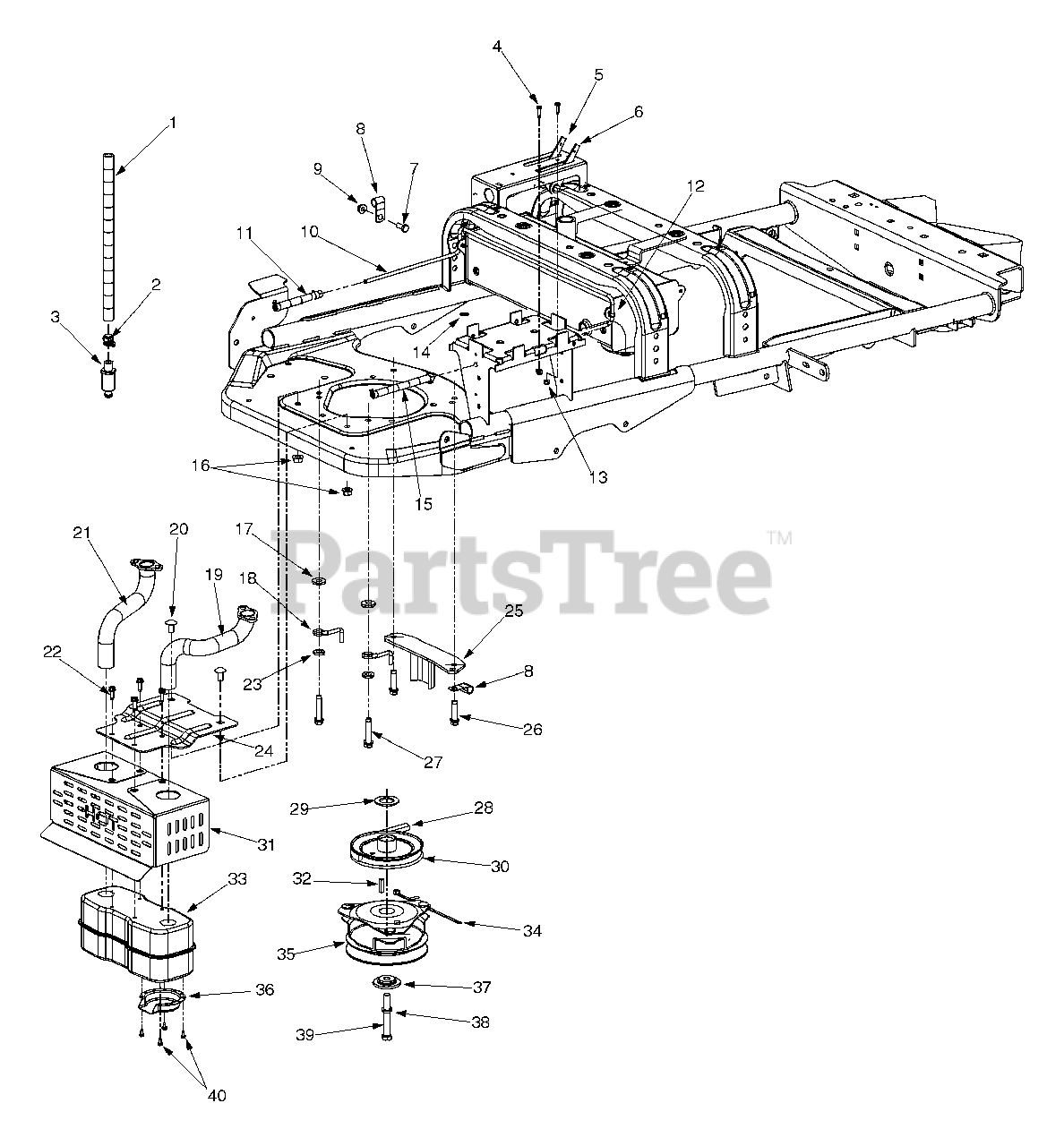

365 (53CA1B6K100) - Cub Cadet 36" Zero-Turn Mower Choke & Throttle Cable, Muffler Assembly, PTO Clutch, Engine Acc's Parts Diagram

36" Zero-Turn Mower

Choke & Throttle Cable, Muffler Assembly, PTO Clutch, Engine Acc's Parts Diagram

  • Title

1

Cub Cadet 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

2

Cub Cadet 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

3

Cub Cadet 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

4

Cub Cadet 710-3009

Screw #10-24 x .750

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 746-3070

Throttle Control Cable 40.5"

$

$

Not available

6

Cub Cadet 746-3066

Choke Control Cable 38.0"

$

$

Not available

7

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 726-3008

Cable Clip Heat Shield

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 749-3048

Fuel Line

$

$

Not available

11

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

12

Cub Cadet 725-1711

Retainer Clip

$

$

Not available

13

Cub Cadet 712-0161

Lock Nut #10-24

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0607

Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

16

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 747-3362

Rear Belt Retainer Rod

$

$

Not available

19

Cub Cadet 751-0644A

Exhaust Pipe LH
(Superseded to 751-0644B)

$146.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 751-0645

Exhaust Pipe RH
(Superseded to 751-0645A)

$93.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-3010

Flat Washer .407 ID x .812 OD

$4.99

$

In Stock, only 1 left!

0

24

Cub Cadet 703-2859

Muffler Bracket

$

$

Not available

25

Cub Cadet 603-0317

Clutch Retainer Ass'y

Variations

Cub Cadet 603-0317-0637

RETAINER-CLUTCH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 710-1007

Hex Washer Screw 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

27

Cub Cadet 710-1008

Hex Washer Screw 3/8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

28

Cub Cadet 754-3076

V-Belt
(Superseded to 954-3076)

$71.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0250

Flat Washer 1.0 ID x 1.75 OD

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 756-3060

Drive Pulley
(Superseded to 756-3060A)

$97.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 703-3004

Muffler Bracket
(Superseded to 703-3004-0637)

Variations

Cub Cadet 703-3004-0637

SHIELD-MUFFLER - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 714-0128

Key

$4.99

$

In Stock, Qty 6

0

33

Cub Cadet 751-0805

Duel Muffler
(Superseded to 951-0805A)

$123.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 717-3389

Electric PTO Clutch
(Superseded to 917-3389)

$642.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

37

Cub Cadet 750-3106

Spacer Clutch

$35.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

39

Cub Cadet 710-3157

Hex Cap Screw 7/16-20 x 3.25
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0148

Hex Washer Screw #8-32 x .375

$4.49

$

In Stock, Qty 16

0

Cub Cadet 629-3034

Engine Harness Assembly

Note: (Not Shown)

$

$

Not available
