365 (53CA1B6K100) - Cub Cadet 36" Zero-Turn Mower (2001) Body Cover & Console Parts Diagram

36" Zero-Turn Mower

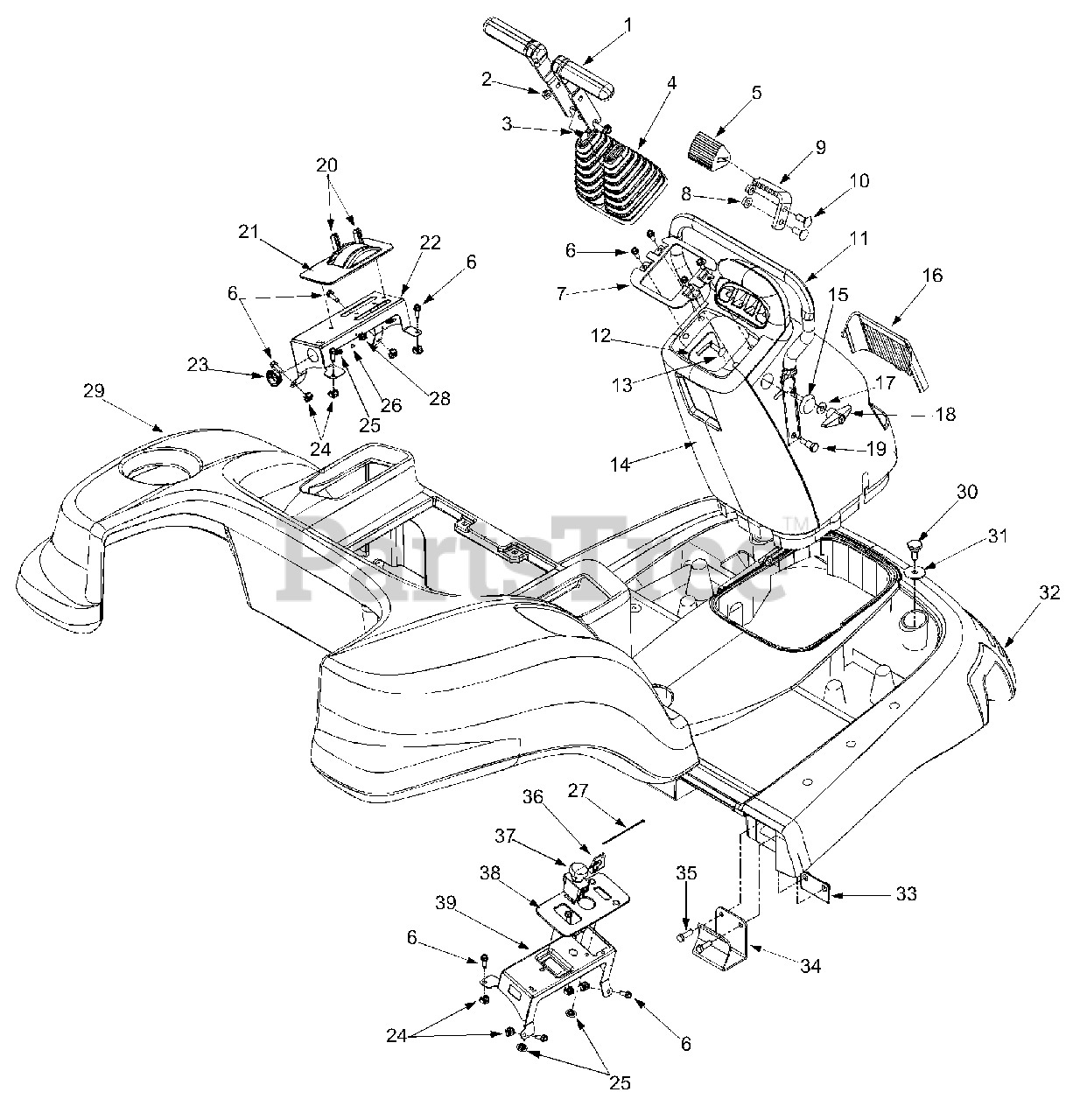

Body Cover & Console Parts Diagram

  • Title

1

Cub Cadet 731-3263

Control Handle
(Superseded to 931-3263)

$

$

Not available

2

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0451

Carriage Bolt 5/16-18

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 731-3185

Bellow

$

$

Not available

5

Cub Cadet 735-0251

Foot Pad

$

$

Not available

6

Cub Cadet 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 703-2648

Bellow Retainer Bracket

Variations

Cub Cadet 703-2648-0637

BRACKET:RET:BELLOWS (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-2807B

Foot Pad Mounting Bracket

Variations

Cub Cadet 703-2807B-0637

BRACKET, MGT. FOOTPAD(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 749-3081

Cruise Control Tube

Variations

Cub Cadet 749-3081-0637

TUBE-CRUISE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 703-3288

Control Tube Mounting Bracket

Variations

Cub Cadet 703-3288-0637

CONTROL TUBE MOUNT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 710-0276

Carriage Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 14

0

14

Cub Cadet 731-3310

Console

$

$

Not available

15

Cub Cadet 726-0289

Plug

$

$

Not available

16

Cub Cadet 731-3128A

Lens

$

$

Not available

17

Cub Cadet 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 720-0241

Wing Nut Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 738-0754

Shoulder Screw

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 720-0302

Knob

$

$

Not available

21

Cub Cadet 731-3195B

LH Control Panel Cover

$

$

Not available

22

Cub Cadet 703-2703

LH Control Panel

Variations

Cub Cadet 703-2703-0637

PANEL (LH) CONTROL (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 723-3042

Snap Bushing

$4.49

$

In Stock, only 1 left!

0

24

Cub Cadet 712-0453

Retainer Nut 1/4-20

$

$

Not available

25

Cub Cadet 726-3047

Push Nut
(Superseded to 926-3047)

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 728-0117

Pop Rivet

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

28

Cub Cadet 732-0830

Spring Clip
(Superseded to 932-0830)

$

$

Not available

29

Cub Cadet 731-3293

Rear Body

$

$

Not available

30

Cub Cadet 738-3163A

Shoulder Screw 3/8-16

$

$

Not available

31

Cub Cadet 736-3039

Flat Washer .406 ID x 1.5 OD

$5.49

$

In Stock, Qty 8

0

32

Cub Cadet 731-3312

Floor Body

$

$

Not available

33

Cub Cadet 603-0578

Body Plate Assembly

$

$

Not available

34

Cub Cadet 703-3474

Body Clip

Variations

Cub Cadet 703-3474-0637

CLIP-BODY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, only 4 left!

0

36

Cub Cadet 703-1345A

Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

37

Cub Cadet 725-3233

Electric PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 12

0

38

Cub Cadet 731-3196A

RH Control Panel Cover

$

$

Not available

39

Cub Cadet 703-3583

RH Control Panel

Variations

Cub Cadet 703-3583-0637

CONTROL PANEL (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$
