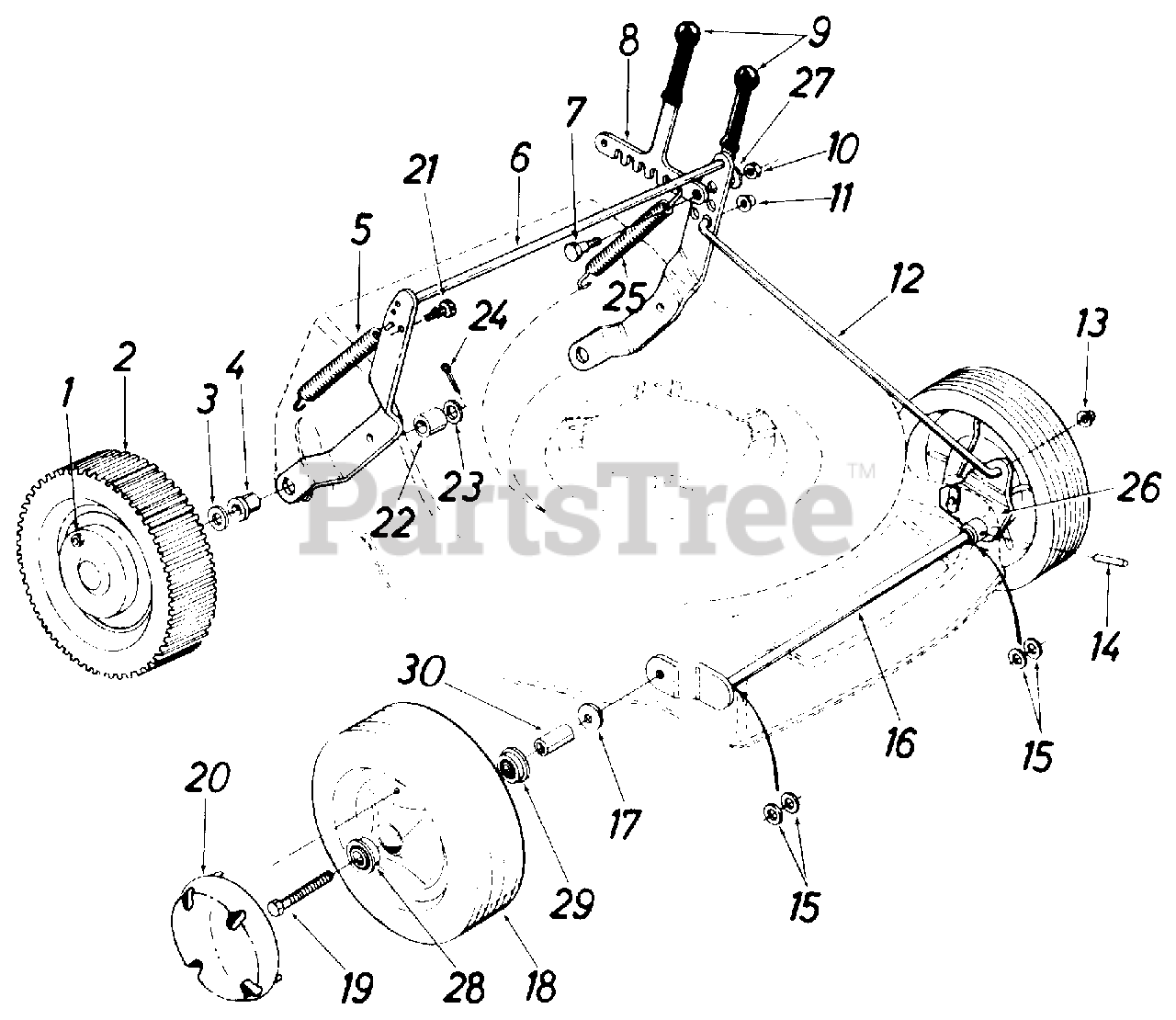

365 (124-365-100) - Cub Cadet Self-Propelled Walk-Behind Mower (1984) Wheel Assembly Parts Diagram

Self-Propelled Walk-Behind Mower

Wheel Assembly Parts Diagram

  • Title

1

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 15

0

2

Cub Cadet 734-0880

Rear Wheel Ass'y.

$

$

Not available

3

Cub Cadet 736-0160

Fl-Wash. .510 I.D. x .930 O.D.

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 741-0324

Flange Brg. .506 I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

5

Cub Cadet 732-0352

Extension Spring .50 O.D. x 4.25

$

$

Not available

6

Cub Cadet 14931

Rear Wheel Pivot Brkt. Ass'y.

$

$

Currently unavailable

7

Cub Cadet 738-0140

Shld. Bolt. .437 Dia. x .180

$5.99

$

In Stock, Qty 15

0

8

Cub Cadet 13419

Height Adjusting Lever

$

$

Not available

9

Cub Cadet 720-0143

Grip Black

$

$

Not available

10

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 726-0135

Push Cap 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 747-0333

Linkage Rod .31 O.D. x 23.25" Lg.

$

$

Currently unavailable

13

Cub Cadet 726-0135

Push Cap 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 715-0120

Spring Pin Roll 3/16" Dia. x 1.00" Lg.

$10.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0326

Fl-Wash. .510 I.D. x 1.00 O.D.

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 13624

Wheel Axle Brkt. Ass'y.

$

$

Currently unavailable

17

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 734-0643

Front Wheel Ass'y. Comp.

$

$

Not available

19

Cub Cadet 710-0427

Hex Scr. 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 731-0354

Hub Cap

$

$

Not available

21

Cub Cadet 735-0199

Rubber Bumper
(Superseded to 935-0199A)

$7.99

$

In Stock, only 2 left!

0

22

Cub Cadet 750-0190

Spacer .70 I.D. x .88 O.D. x 1.00" Lg

$

$

Not available

23

Cub Cadet 736-0160

Fl-Wash. .510 I.D. x .930 O.D. x .050

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 12

0

25

Cub Cadet 732-0352

Extension Spring .50 O.D. x 4.25

$

$

Not available

26

Cub Cadet 12871

Front Wheel Brkt. Ass'y.

$

$

Currently unavailable

27

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available

29

Cub Cadet 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

30

Cub Cadet 750-0434

Spacer 3/8" I.D.

$6.99

$

Usually ships in 3-6 days

0
