364 (53AA1A5L100) - Cub Cadet 36" Zero-Turn Mower Parking Brake And Linkage Parts Diagram

36" Zero-Turn Mower

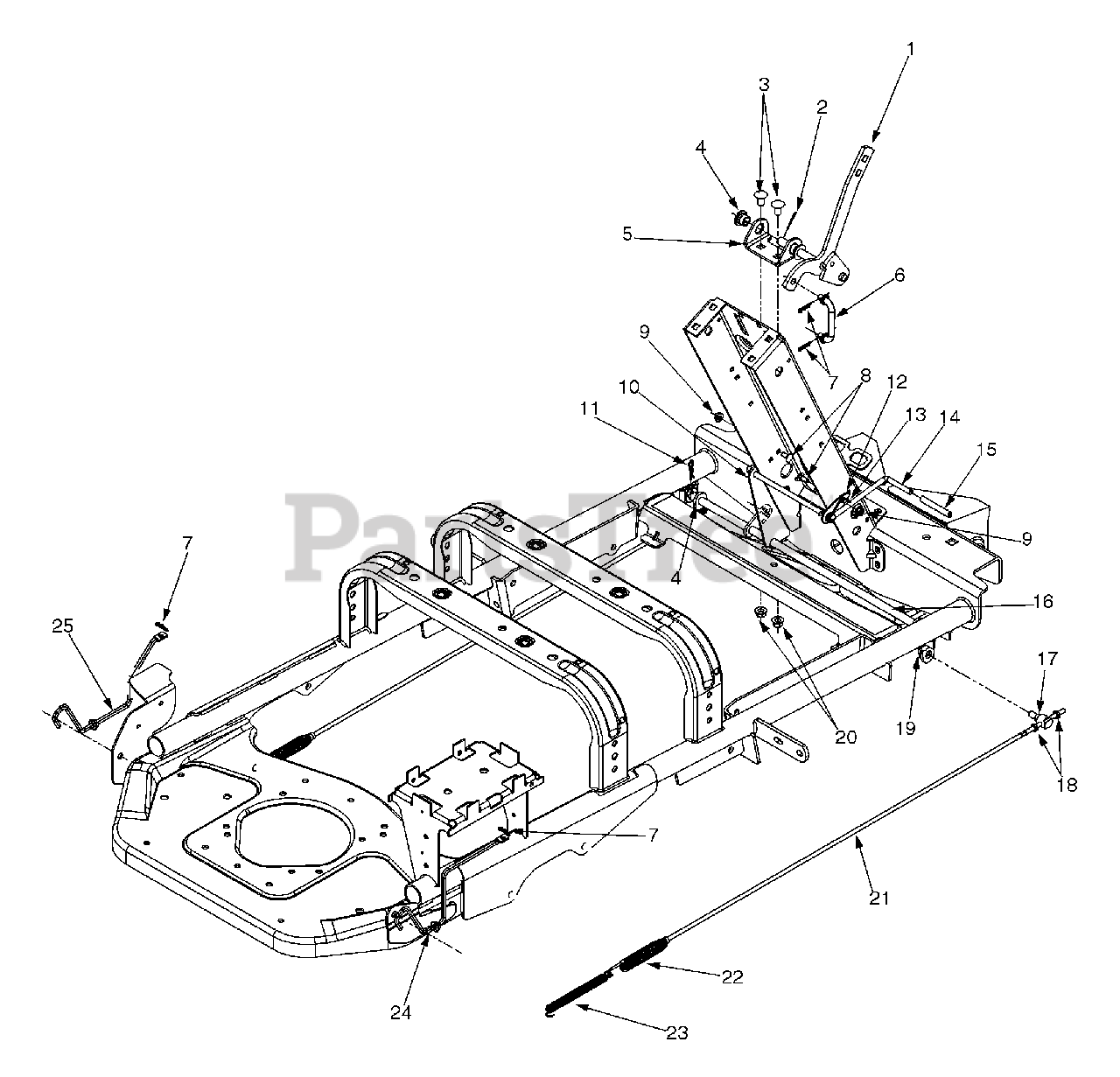

Parking Brake And Linkage Parts Diagram

  • Title
1

Cub Cadet 603-0649

Parking Brake Shift Ass'y

$

$

Not available

2

Cub Cadet 714-3004

Cotter Pin

$4.99

$

In Stock, Qty 9

0

3

Cub Cadet 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 741-0324

Hex Flange Bearing .506 ID x .590
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

5

Cub Cadet 703-3400

Brake Mounting Bracket

$

$

Not available

6

Cub Cadet 747-3404

Connecting Brake Rod

$

$

Not available

7

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 703-3405

Support Plate

$

$

Not available

11

Cub Cadet 714-0101

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-2857

Retaining Rod Bracket

$

$

Not available

13

Cub Cadet 732-0827

Torsion Spring 5/16

$

$

Not available

14

Cub Cadet 747-3397

Parking Brake Retaining Rod

$

$

Not available

15

Cub Cadet 735-0664

Parking Brake Pad

$

$

Not available

16

Cub Cadet 603-0683

Brake Rod Ass'y

$

$

Not available

17

$

$

Not available

18

Cub Cadet 712-0314

Jam Nut 1/4-28

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 747-3266A

Bracket Rod

$

$

Not available

22

Cub Cadet 732-0463

Extension Spring
(Superseded to 732-0463A)

$18.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-0800

Extension Spring

$

$

Not available

24

Cub Cadet 747-3284

Release Pump Rod RH

$

$

Not available

25

Cub Cadet 747-3363

Release Pump Rod LH

$

$

Not available
