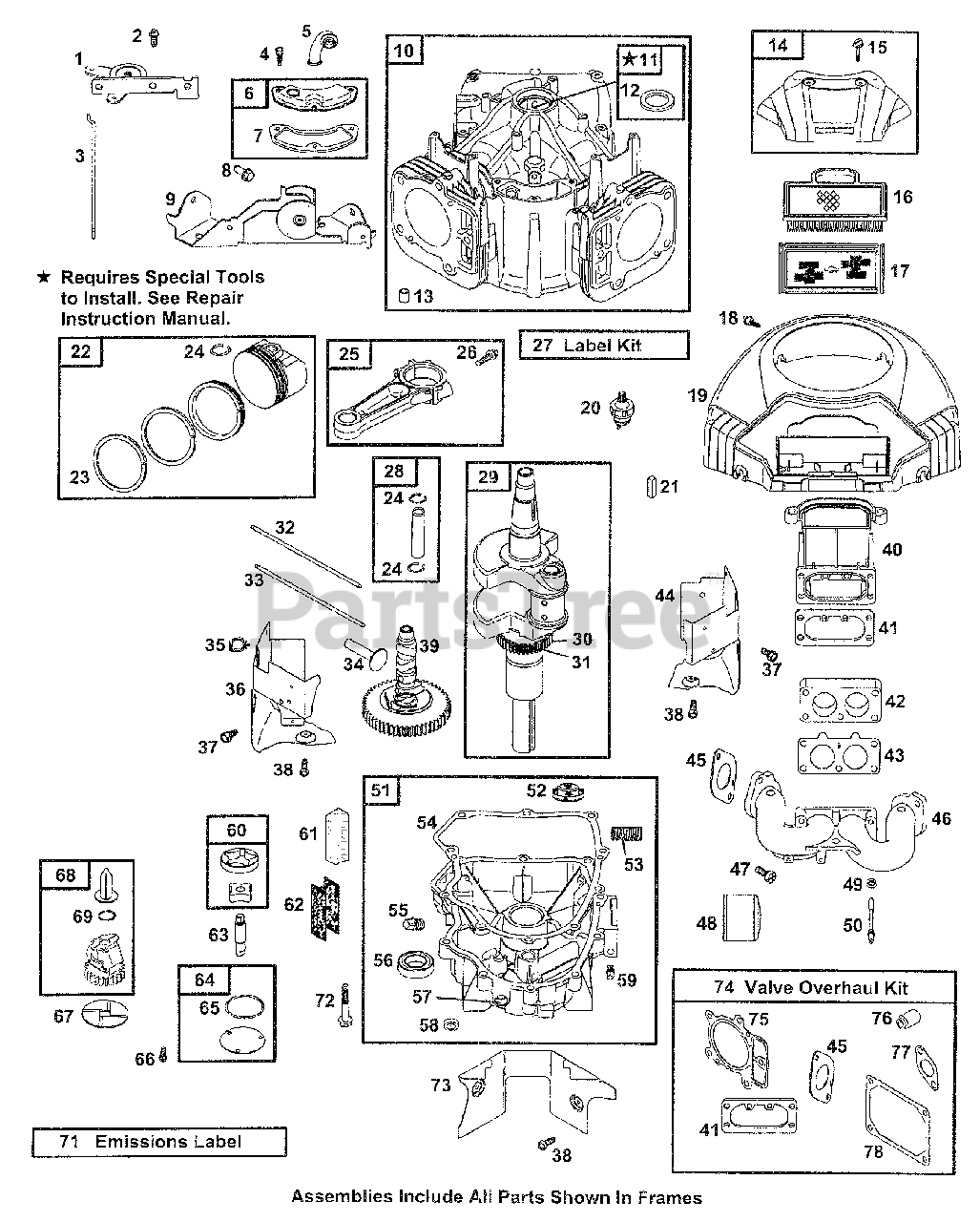

364 (53AA1A5L100) - Cub Cadet 36" Zero-Turn Mower Engine Parts Diagram

36" Zero-Turn Mower

Engine Parts Diagram

  • Title

1

Cub Cadet BS-691021

Choke Control Bracket

$10.99

$

In Stock, only 3 left!

0

2

Cub Cadet BS-94930

Screw (Choke Control Bracket)

$

$

Not available

3

Cub Cadet BS-691022

Choke Link

$8.49

$

In Stock, only 1 left!

0

4

Cub Cadet BS-690960

Screw (Breather Assembly)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-690942

Breather Tube
(Superseded to BS-792184)

$14.99

$

In Stock, only 3 left!

0

6

Cub Cadet BS-499601

Breather Assembly
(Superseded to BS-792185)

$

$

Not available

7

Cub Cadet BS-690937

Breather Gasket

$8.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-690960

Screw (Control Bracket)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet BS-691023

Control Bracket

$

$

Not available

10

Cub Cadet BS-690231

Cylinder Assembly

$

$

Not available

11

Cub Cadet BS-499585

Bushing/Seal Kit (Magneto Side)

$18.99

$

In Stock, Qty 8

0

12

Cub Cadet BS-391086

Oil Seal (Magneto Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-230192

Locating Pin
(Superseded to BS-690959)

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-499788

Air Cleaner Cover
(Superseded to BS-790692)

$

$

Not available

15

Cub Cadet BS-691008

Air Cleaner Knob

$13.99

$

In Stock, only 2 left!

0

16

Cub Cadet BS-499486S

Air Cleaner Cartridge Filter

$15.99

$

In Stock, Qty 20+

0

17

Cub Cadet BS-273638S

Pre-Cleaner Filter

$6.49

$

In Stock, Qty 19

0

18

Cub Cadet BS-691005

Screw (Blower Housing)
(Superseded to BS-594618)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet BS-691004

Blower Housing

$201.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-491657

Oil Pressure Switch
(Superseded to BS-491657S)

$31.99

$

In Stock, only 4 left!

0

21

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-499588

Piston Assembly
(Superseded to BS-793647)

Note: (Standard)

$137.99

$

In Stock, only 1 left!

0

Cub Cadet BS-499589

Piston Assy. (.010 Oversize)

$60.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499590

Piston Assy. (.020 Oversize)
(Superseded to BS-793648)

$159.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499591

Piston Assy. (.030 Oversize)

$96.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-499604

Ring Set

Note: (Standard)

$69.99

$

In Stock, only 1 left!

0

Cub Cadet BS-499605

Ring Set (.010 Oversize)

$43.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499606

Ring Set (.020 Oversize)

$61.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499607

Ring Set (.030 Oversize)

$53.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-263181

Piston Pin Lock
(Superseded to BS-690975)

$3.99

$

In Stock, Qty 10

0

25

Cub Cadet BS-499583

Connecting Rod

$37.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

In Stock, Qty 17

0

27

Cub Cadet BS-690103

Label Kit

$

$

Not available

28

Cub Cadet BS-690229

Piston Pin

$17.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-691046

Crankshaft
(Superseded to BS-699701)

$

$

Not available

30

Cub Cadet BS-94388

Timing Key
(Superseded to BS-690979)

$3.49

$

In Stock, Qty 7

0

31

Cub Cadet BS-690980

Timing Gear

$14.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-690981

Rod-Push (Steel)
(Superseded to BS-597785)

$7.99

$

In Stock, Qty 20+

0

33

Cub Cadet BS-690982

Rod-Push (Aluminum)

$7.99

$

In Stock, Qty 20+

0

34

Cub Cadet BS-262679

Valve Tappet
(Superseded to BS-690977)

$7.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-691010

Clip

$6.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-691012

Air Guide Cover (Cylinder #1)

$

$

Not available

37

Cub Cadet BS-94930

Screw (Air Guide Cover)

$

$

Not available

38

Cub Cadet BS-690960

Screw (Air Guide Cover)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

39

Cub Cadet BS-690978

Camshaft

$100.99

$

Usually ships in 2-12 days

0

40

Cub Cadet BS-691011

Air Adapter

$45.99

$

Usually ships in 2-12 days

0

41

Cub Cadet BS-691001

Air Cleaner Gasket

$3.49

$

In Stock, Qty 5

0

42

Cub Cadet BS-690952

Carburetor Spacer

$10.99

$

In Stock, only 1 left!

0

43

Cub Cadet BS-690950

Intake Gasket

$2.99

$

In Stock, Qty 13

0

44

Cub Cadet BS-691014

Air Guide Cover (Cylinder #2)

$

$

Not available

45

Cub Cadet BS-690949

Intake Gasket

$3.49

$

In Stock, Qty 20+

0

46

Cub Cadet BS-693996

Intake Manifold

$

$

Not available

47

Cub Cadet BS-94913

Screw (Intake Manifold)
(Superseded to BS-690953)

$5.99

$

Usually ships in 2-12 days

0

48

Cub Cadet BS-492932

Oil Filter
(Superseded to BS-492932S)

$12.99

$

In Stock, Qty 20+

0

49

Cub Cadet BS-94010

Nut (Carburetor)
(Superseded to BS-690958)

$3.49

$

In Stock, only 3 left!

0

50

Cub Cadet BS-690951

Stud (Carburetor)

$7.49

$

In Stock, only 1 left!

0

51

Cub Cadet BS-690069

Engine Sump

$

$

Not available

52

Cub Cadet BS-690770

Oil Pump Screen

$

$

Not available

53

Cub Cadet BS-690954

Oil Filter Nipple

$7.99

$

In Stock, Qty 5

0

54

Cub Cadet BS-690945

Crankcase Gasket
(Superseded to BS-594195)

$37.99

$

In Stock, Qty 20+

0

55

Cub Cadet BS-94239

Oil Drain Plug
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

56

Cub Cadet BS-690947

Oil Seal (PTO Side)
(Superseded to BS-795387)

$7.49

$

In Stock, Qty 20+

0

57

Cub Cadet BS-690552

Governor Crank Bushing

$8.49

$

In Stock, Qty 9

0

58

Cub Cadet BS-690657

Governor Shaft Seal
(Superseded to BS-790574)

$5.99

$

In Stock, Qty 20+

0

59

Cub Cadet BS-690283

Oil Plug
(Superseded to BS-794903)

$5.49

$

Usually ships in 2-12 days

0

60

Cub Cadet BS-499054

Oil Pump
(Superseded to BS-795259)

$32.99

$

In Stock, only 3 left!

0

61

Cub Cadet BS-690956

Oil Collector
(Superseded to BS-794389)

$7.99

$

In Stock, only 1 left!

0

62

Cub Cadet BS-690957

Breather Retainer

$6.99

$

In Stock, only 1 left!

0

63

Cub Cadet BS-691042

Pump Shaft
(Superseded to BS-794644)

$35.99

$

In Stock, only 1 left!

0

64

Cub Cadet BS-499613

Oil Pump Cover

$13.99

$

In Stock, Qty 9

0

65

Cub Cadet BS-690589

O-Ring Seal (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

66

Cub Cadet BS-691033

Screw (Oil Pump Cover)

$

$

Not available

67

Cub Cadet BS-690412

Washer (Governor Gear)

$

$

Not available

68

Cub Cadet BS-394348

Governor Gear
(Superseded to BS-793338)

$27.99

$

In Stock, Qty 20+

0

69

Cub Cadet BS-690317

Governor Shaft Retainer
(Superseded to BS-698290)

$4.49

$

In Stock, Qty 9

0

71

Cub Cadet BS-695104

Emissions Label

$3.99

$

Usually ships in 2-12 days

0

72

Cub Cadet BS-690308

Screw (Engine Sump)

$

$

Not available

73

Cub Cadet BS-691015

Air Guide Cover

$27.99

$

Usually ships in 2-12 days

0

74

Cub Cadet BS-499890

Valve Overhaul Kit
(Superseded to BS-694013)

$69.99

$

In Stock, only 1 left!

0

75

Cub Cadet BS-690962

Cylinder Head Gasket
(Superseded to BS-693997)

$24.99

$

In Stock, Qty 20+

0

76

Cub Cadet BS-690968

Valve Seal

$10.99

$

In Stock, Qty 20+

0

77

Cub Cadet BS-690970

Exhaust Gasket

$4.99

$

In Stock, Qty 19

0

78

Cub Cadet BS-690971

Rocker Cover Gasket

$7.49

$

In Stock, Qty 20+

0

Cub Cadet BS-692714

Short Block
(Superseded to BS-698172)

$

$

Not available
