364 (53AA1A5L100) - Cub Cadet 36" Zero-Turn Mower 44" Deck Assembly Parts Diagram

36" Zero-Turn Mower

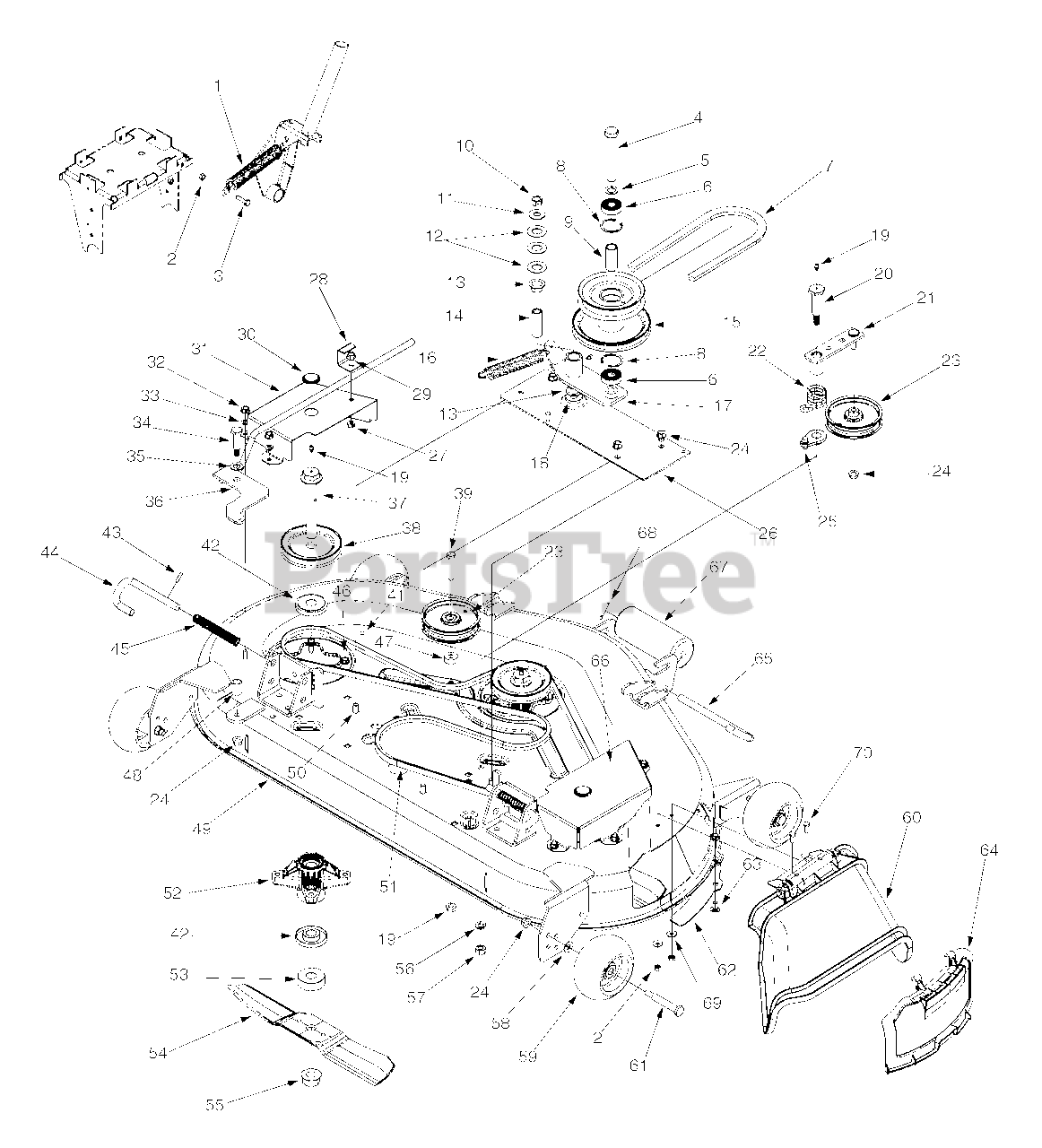

44" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 732-0556

Extension Spring .94 OD x 7.57
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

3

Cub Cadet 710-0597

Hex Cap Screw 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

4

Cub Cadet 710-3151

Hex Cap Screw 5/8-18 x 4.25

$20.99

$

In Stock, Qty 12

0

5

Cub Cadet 736-0290

Flat Washer 5/8 ID x 1.0 OD

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet 741-0524

Bearing .625 ID x 1.574 OD
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

7

Cub Cadet 754-3091

Belt
(Superseded to 954-3091)

$94.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 716-3020

Snap Ring
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 750-3164

Spacer .635 ID x 2.0

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0239

Hex Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0179

Flat Washer 1/2 x 1.25

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 736-0188

Flat Washer .76 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 741-0338

Flange Bearing 3/4 ID x .52

$9.49

$

In Stock, only 2 left!

0

14

Cub Cadet 750-0656

Spacer .50 OD x .75 ID

$11.99

$

In Stock, only 1 left!

0

15

Cub Cadet 756-3108

Pulley

$142.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-0850

Extension Spring 1.0 OD x 6.140
(Superseded to 932-0850)

$24.99

$

In Stock, Qty 5

0

17

Cub Cadet 603-0743

Idler Assembly

$

$

Not available

18

Cub Cadet 736-0100

Flat Washer .531 ID x 1.25 OD

$6.99

$

In Stock, Qty 7

0

19

Cub Cadet 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 738-3172

Shoulder Screw

$20.99

$

In Stock, only 1 left!

0

21

Cub Cadet 603-0741

Idler Arm Assembly

Variations

Cub Cadet 603-0741-0716

Idler Arm Assembly - CUB YELLOW-99 (0716)

$107.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0741-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-3067

Torsion Spring

$23.99

$

In Stock, only 1 left!

0

23

Cub Cadet 756-3005

Flat Pulley

$45.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 748-3100

Retainer Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

26

Cub Cadet 603-0763

Deck Mounting Plate Assembly
(Superseded to 603-0763-0637)

Variations

Cub Cadet 603-0763-0637

PLATE ASM-DECK MTG - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 703-2559

Stop Bracket

Variations

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 726-3045

Button Plug
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 7

0

31

Cub Cadet 703-3742

Belt Cover LH

Variations

Cub Cadet 703-3742-0716

Belt Cover, LH Yellow - CUB YELLOW-99 (0716)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3742-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-3742-0650

COVER-BELT LH - RED METALLIC (0650)

$

$

Not available

Cub Cadet 703-3742-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$

$

Not available

$53.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 738-0213

Shoulder Screw .498 x 1.445

$7.99

$

In Stock, only 2 left!

0

35

Cub Cadet 736-0192

Flat Washer .531 x .93

$4.49

$

In Stock, Qty 18

0

36

Cub Cadet 603-0766

Handle Assembly

Variations

Cub Cadet 603-0766-0637

HANDLE ASSEMBLY-TENSION(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 710-1693

Spindle Bolt 3/4-16 x 5

$38.99

$

In Stock, only 2 left!

0

Cub Cadet 710-1852

Spindle Bolt 3/4-16 x 5 3/8

$28.99

$

In Stock, only 2 left!

0

38

Cub Cadet 756-3089

Pulley

$36.99

$

In Stock, only 3 left!

0

39

Cub Cadet 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-1611

Screw 5/16-18 x .750
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

42

Cub Cadet 748-3065

Spindle Spacer
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

43

Cub Cadet 715-3003

Pin

$6.99

$

In Stock, Qty 7

0

44

Cub Cadet 747-3013

Support Pin

$22.99

$

In Stock, only 2 left!

0

45

Cub Cadet 732-0802

Compression Spring .63 OD x 6.3

$4.49

$

In Stock, only 1 left!

0

46

Cub Cadet 710-1260A

Hex Washer Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0

48

Cub Cadet 750-0150

Spacer .550 ID x .750 OD

$

$

Not available

49

Cub Cadet 603-0734

Deck Assembly

Variations

Cub Cadet 603-0734-0637

SHELL-44" (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 754-3039

Belt
(Superseded to 954-3039)

$59.99

$

In Stock, only 2 left!

0

52

Cub Cadet 918-3129

Spindle Assembly
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

53

Cub Cadet 748-3101

Blade Spacer .31 Thk
(Superseded to 748-3101A)

$23.99

$

In Stock, only 3 left!

0

Cub Cadet 948-3020

Blade Spacer .70 Thk

$17.99

$

In Stock, only 2 left!

0

54

Cub Cadet 742-3036

Blade
(Superseded to 759-3939)

$

$

Not available

Cub Cadet 759-3949

High Lift Blade For Discharge Spindle
(Superseded to 742P3038)

Note: (Optional)

$30.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 712-3078

Hex Flange Nut 3/4-16

$9.99

$

In Stock, Qty 20+

0

56

Cub Cadet 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

57

Cub Cadet 712-3019

Hex Nut 7/16-14

$6.99

$

In Stock, only 1 left!

0

58

Cub Cadet 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 703-1890

Deck Wheel
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

60

Cub Cadet 631-0094

Chute Assembly
(Superseded to 631-0094B)

$78.99

$

In Stock, only 1 left!

0

61

Cub Cadet 738-3056

Shoulder Screw 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

62

Cub Cadet 703-3359

Skirt Baffle

Variations

Cub Cadet 703-3359-0716

Skirt Baffle - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3359-0637

Skirt Baffle - POWDER BLACK (0637)

$44.99

$

In Stock, only 2 left!

0

$36.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 731-3316

Mulching Plug

$30.99

$

In Stock, Qty 12

0

65

Cub Cadet 711-3314

Roller Pin
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

66

Cub Cadet 703-3743

Belt Cover RH

Variations

Cub Cadet 703-3743-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3743-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-3743-4021

COVER-BELT RH - CUB YELLOW 2 (4021)

$

$

Not available

$64.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

68

Cub Cadet 714-0115

Pin

$3.99

$

In Stock, only 2 left!

0

69

Cub Cadet 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0
