364 (53AA1A5L100) - Cub Cadet 36" Zero-Turn Mower (2001) Drive Controls & Tower Parts Diagram

36" Zero-Turn Mower

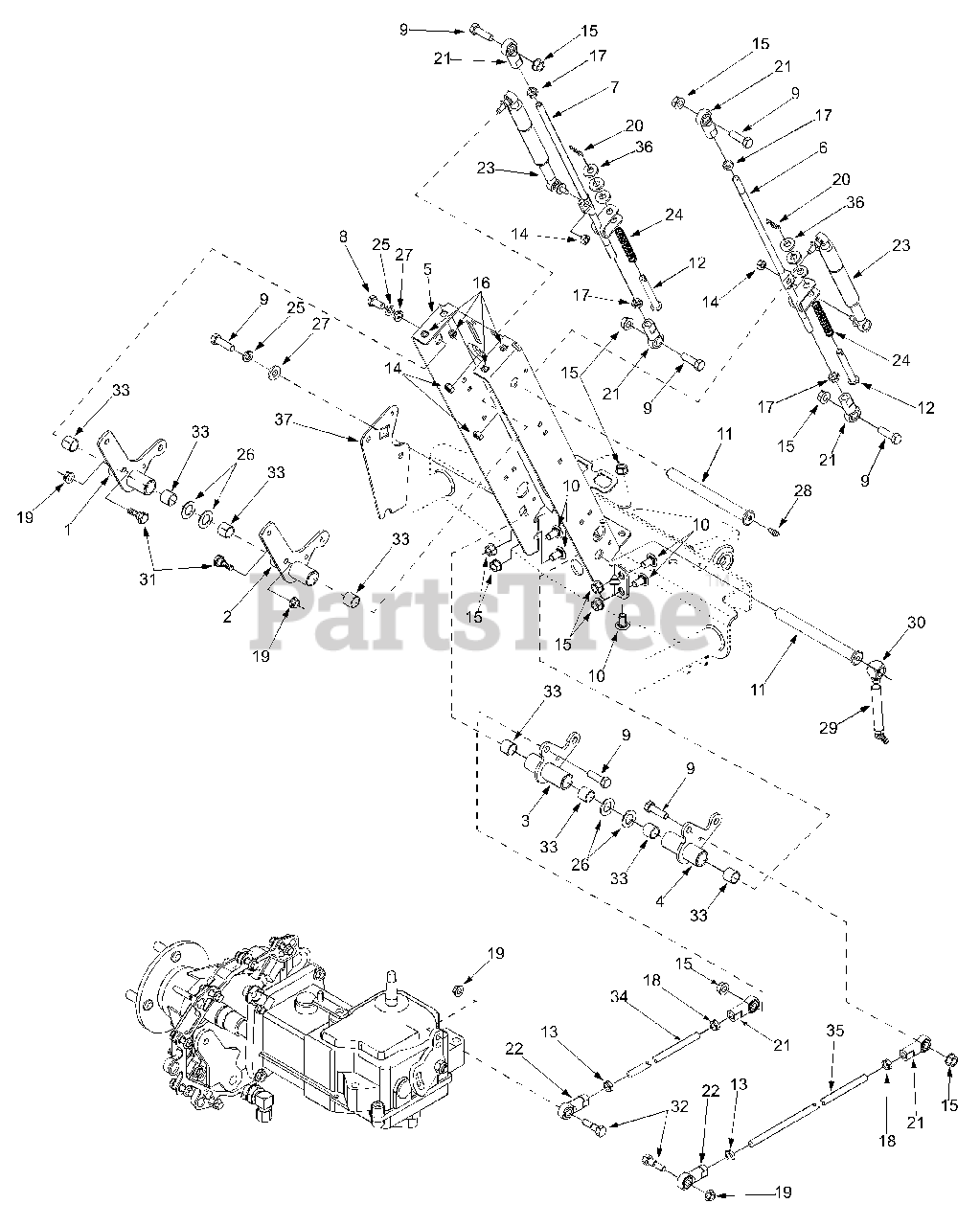

Drive Controls & Tower Parts Diagram

  • Title

1

Cub Cadet 603-0340

Bellcrank Ass'y Upper LH

$

$

Not available

2

Cub Cadet 603-0341

Bellcrank Ass'y Upper RH

Variations

Cub Cadet 603-0341-0637

BELLCRANK ASS'Y UPPER RH - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0342

Bellcrank Ass'y Lower LH

$

$

Not available

4

Cub Cadet 603-0343

Bellcrank Ass'y Lower RH
(Superseded to 603-0343-0637)

Variations

Cub Cadet 603-0343-0637

BELCRNK ASM:W/BRG - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 603-0647

Support Ass'y Tower

Variations

Cub Cadet 603-0647-0637

SUPPORT ASSEMBLY-TOWER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 603-0410

Rod Ass'y Control RH

$

$

Not available

7

Cub Cadet 603-0411

Rod Ass'y Control LH

$

$

Not available

8

Cub Cadet 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

9

Cub Cadet 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 711-1111

Control Shaft

$

$

Not available

12

Cub Cadet 711-1124

Pin

$

$

Not available

13

Cub Cadet 712-0312

Hex Jam Nut LH 3/8-24
(Superseded to 712-0312A)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-0365

Hex Center Lock Nut

$

$

Not available

15

Cub Cadet 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0453

Retainer 1/4-20

$

$

Not available

17

Cub Cadet 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3001

Hex Jam Nut 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

19

Cub Cadet 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 723-0420

Spherical Rod End RH 3/8-24

$

$

Not available

22

Cub Cadet 723-0421

Spherical Rod End LH 3/8-24
(Superseded to 923-0421)

$

$

Not available

23

Cub Cadet 727-3113

Damper Cylinder

$207.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-3084

Spring Compression

$

$

Not available

25

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0539

Thrust Washer .625 ID x 1.12 OD

$

$

Not available

27

Cub Cadet 736-3004

Flat Washer .406 ID x .875 OD

$4.99

$

In Stock, Qty 6

0

28

Cub Cadet 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

29

Cub Cadet 737-3072

Grease Fitting w/Tube

$

$

Not available

30

Cub Cadet 737-3073

Adapter 1/4-20

$

$

Not available

31

Cub Cadet 738-0296

Shoulder Bolt .437 Dia. x .268

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 738-3153

Shoulder Bolt

$

$

Not available

33

Cub Cadet 741-3063

Sleeve Bearing

$17.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-3281

Control Rod LH 31-5/8

$

$

Not available

35

Cub Cadet 747-3282

Control Rod RH 35-3/8

$

$

Not available

36

Cub Cadet 736-0300

Flat Washer .406 ID x .87 OD

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 703-3405

Support Plate

$

$

Not available
