363 (190-363-100) - Cub Cadet 38" Mower Deck att Deck & Attachments Parts Diagram

38" Mower Deck

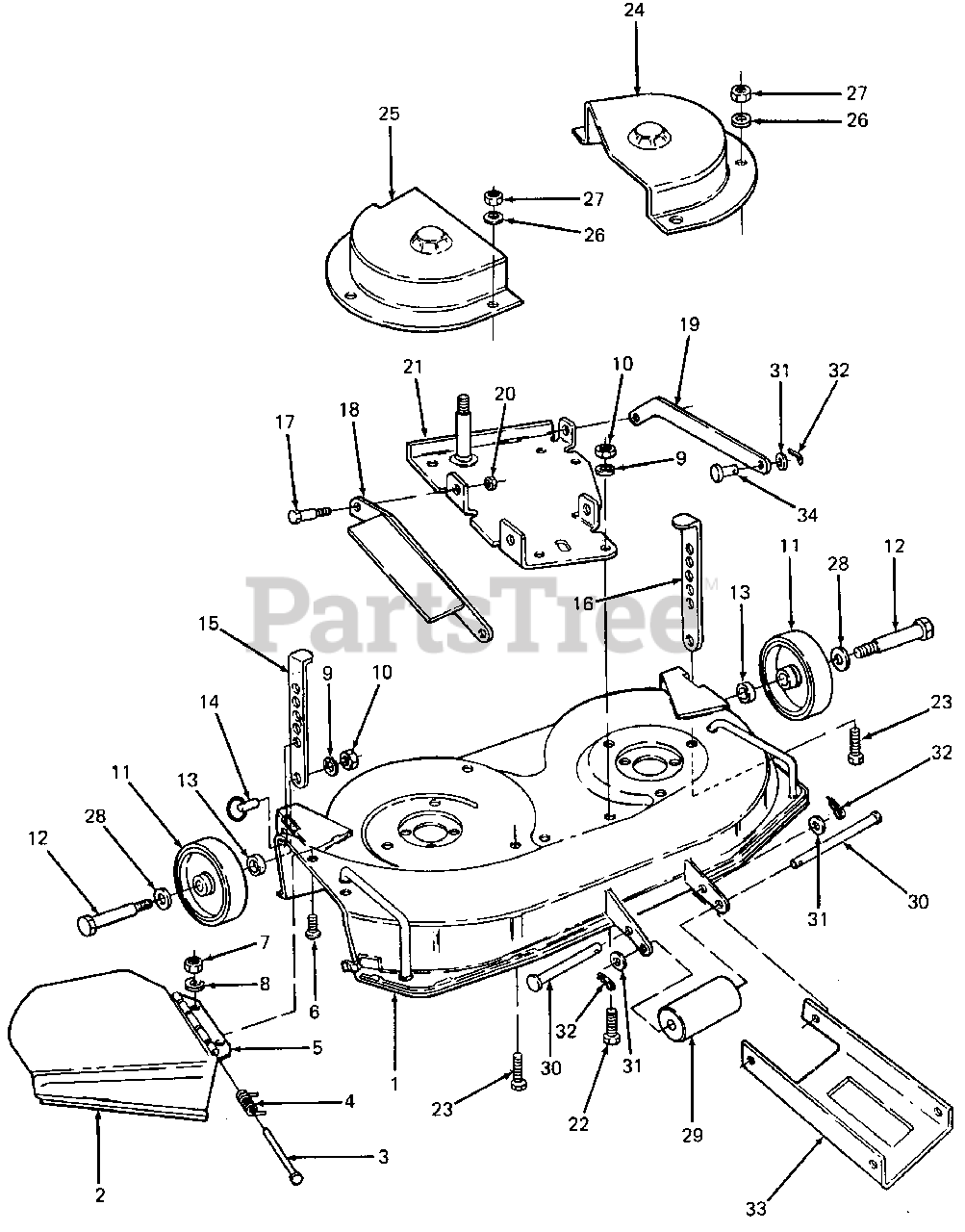

Deck & Attachments Parts Diagram

  • Title

1

Cub Cadet 759-3356

Deck Assembly w/Graphics

Variations

Cub Cadet 759-3356-0498

DECK ASSEMBLY W/GRAPHICS - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 759-3356-0499

DECK ASSEMBLY W/GRAPHICS - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 759-3356-0716

DECK ASSEMBLY W/GRAPHICS - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 777-2549

Graphic, 38" Do Not Step
(Superseded to 777S30018)

$8.49

$

In Stock, only 1 left!

0

Cub Cadet 777-6275

Graphic, Thrown Object

$

$

Currently unavailable

2

Cub Cadet 759-3357

Chute Kit w/Graphic
(Superseded to 759-3492P)

Note: (Includes Ref. No. 2, 3, 4, 5, 6 [Qty 2], 7 [Qty 2] & 8 [Qty 2]

$

$

Not available

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0792

Pin, Hinge, 0.25 Dia 6.75 Long
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 732-0542

Spring, Torsion, 0.29 ID X 1.14 Long
(Superseded to 932-0542)

$

$

Not available

5

Cub Cadet 16521

Bracket, Chute, 38" S.D. Deck

$

$

Not available

6

Cub Cadet 710-0286

Screw, Truss Machine, 1/4-20 X 0.50 Long, Phillips

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet 736-0169

Washer, Lock, 3/8 Dia

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 734-3062

Wheel, Gage, 5" Dia

$21.99

$

In Stock, Qty 16

0

12

Cub Cadet 738-3058

Bolt, Shld, 0.50 Dia X 1.62 Long X 3/8-16
(Superseded to 938-3058)

$23.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-3226

Spacer, 0.385 X 0.75 X 0.75 Long

$

$

Not available

14

Cub Cadet 711-3222

Pin, Clevis, w/Detent Ball
(Superseded to 911-3222)

$18.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-1412

Bar, Height Adjustment, RH

$

$

Not available

16

Cub Cadet 703-1411

Bar, Height Adjustment, LH

$

$

Not available

17

Cub Cadet 738-0183

Bolt, Shld, 0.50 Dia X 3/8-16
(Superseded to 938-0183)

$

$

Not available

18

Cub Cadet 703-1385

Deck Link Assembly, RH

$

$

Not available

19

Cub Cadet 703-1275

Deck Link, LH

$

$

Not available

20

Cub Cadet 712-3000

L-Nut, Hex Cent, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

21

Cub Cadet 703-1613

Deck Plate Assembly

Variations

Cub Cadet 703-1613-0498

PLATE ASSEMBLY-DECK CUB YELO - OLD CUB YELLOW (0498)

$

$

Not available

$

$

22

Cub Cadet 710-3178

Bolt, Short Neck Carr, 3/8-16 X 0.75 Long GR5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3021

Screw, Hex Head Cutting, 5/16-18 X 0.62 Long

$

$

Not available

24

Cub Cadet 703-1413

Cover, Belt, LH

$

$

Not available

25

Cub Cadet 703-1414

Cover, Belt, RH

$

$

Not available

26

Cub Cadet 736-0275

Washer, Flat, 0.34 X 0.68 X 0.06

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-3087

Washer, Flat, 0.510 ID X 1.12 OD X 0.100 Thk

$

$

Not available

29

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

30

Cub Cadet 711-3068

Pin, Clevis, 1/2 X 7.68

$21.99

$

In Stock, only 2 left!

0

31

Cub Cadet 736-0272

Washer, Flat, 0.510 X 1.0 X 0.06

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 714-0149

Pin, Internal Cotter
(Superseded to 914-0149B)

$

$

Not available

33

Cub Cadet 703-1293

Bracket, Deck Front Support
(Superseded to 703-1999-0498)

$88.99

$

In Stock, only 1 left!

0

34

Cub Cadet 711-0332

Pin, Lift Bracket
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 18

0
