362 XP - Husqvarna Chainsaw (SN: 19991900001 - 20013999999) CYLINDER PISTON Parts Diagram

Chainsaw

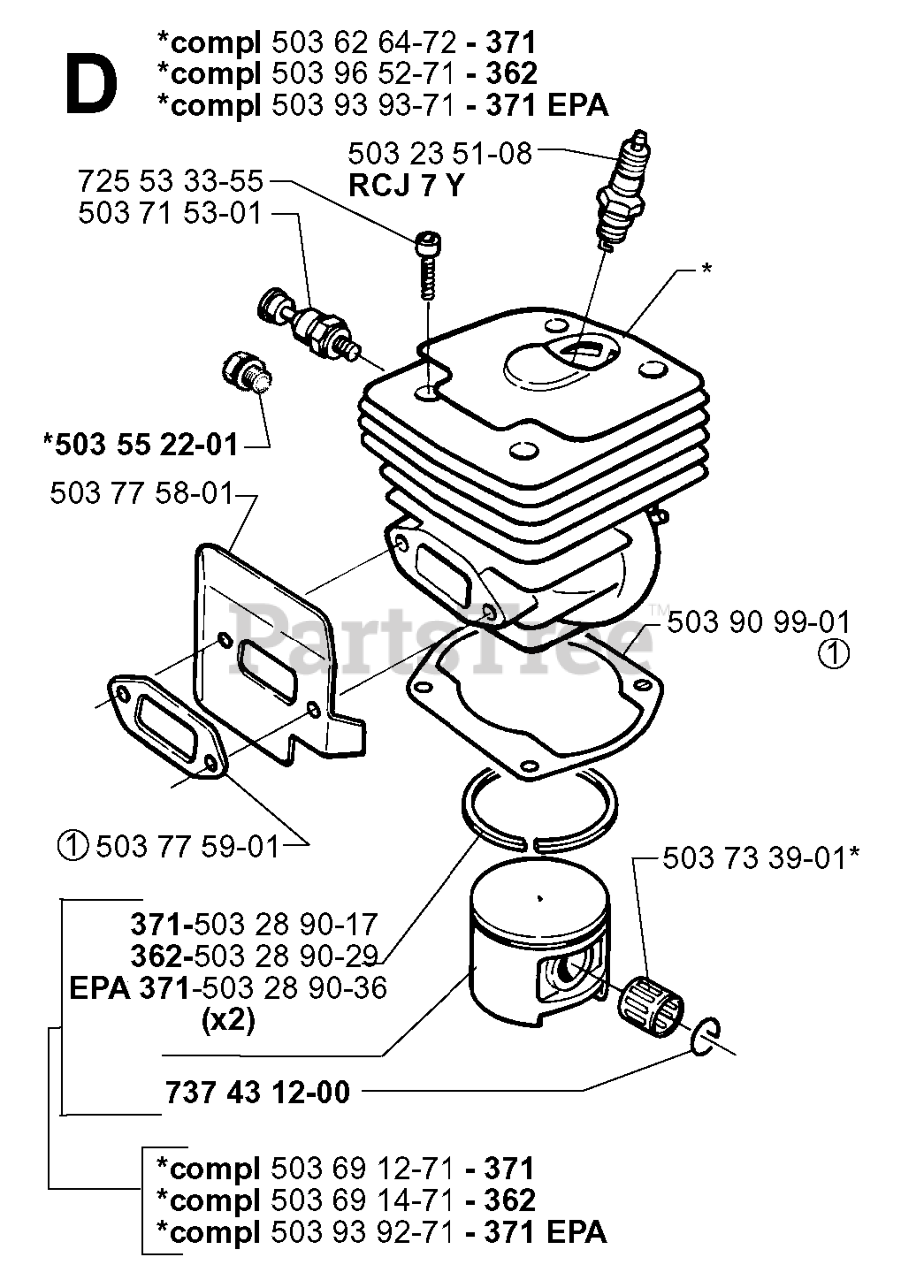

CYLINDER PISTON Parts Diagram

  • Title

503 71 53-01

Husqvarna 503715301

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

503 93 93-71

Husqvarna 503939371

CYLINDER COMP
(Superseded to 593665504)

Note: 371 EPA

$284.99

$

In Stock, only 1 left!

0

503 69 12-71

Husqvarna 503691271

PISTON ASSY

Note: 371

$145.99

$

Usually ships in 3-10 days

0

503 62 64-72

Husqvarna 503626472

CYLINDER ASSY
(Superseded to 593665502)

Note: 371

$

$

Not available

737 43 12-00

Husqvarna 737431200

WRIST PIN CLIP

$7.49

$

In Stock, only 2 left!

0

503 28 90-29

Husqvarna 503289029

%PISTON RING
(Superseded to 503289050)

Note: 362

$40.99

$

In Stock, only 1 left!

0

503 93 92-71

Husqvarna 503939271

PISTON CPL 50 MM

Note: 371 EPA

$125.99

$

Usually ships in 3-10 days

0

503 77 58-01

Husqvarna 503775801

DEFLECTOR
(Superseded to 503775802)

$6.99

$

In Stock, only 1 left!

0

503 55 22-01

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 1 left!

0

725 53 33-55

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

503 96 52-71

Husqvarna 503965271

CYLINDER COMPLETE

Note: 362

$376.99

$

Usually ships in 3-10 days

0

503 28 90-17

Husqvarna 503289017

PISTON RING

Note: 371

$31.99

$

In Stock, only 1 left!

0

503 90 99-01

Husqvarna 503909901

GASKET
(Superseded to 503961501)

$9.49

$

In Stock, only 2 left!

0

503 69 14-71

Husqvarna 503691471

PISTON ASSY

Note: 362

$148.99

$

Usually ships in 3-10 days

0

503 73 39-01

Husqvarna 503733901

BEARING
(Superseded to 577572401)

$21.99

$

In Stock, only 2 left!

0

503 28 90-36

Husqvarna 503289036

RP PISTON RING
(Superseded to 576818401)

Note: EPA 371

$20.99

$

In Stock, only 1 left!

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ 7 Y

$3.49

$

In Stock, Qty 20+

0

503 77 59-01

Husqvarna 503775901

GASKET

$9.49

$

In Stock, only 4 left!

0
