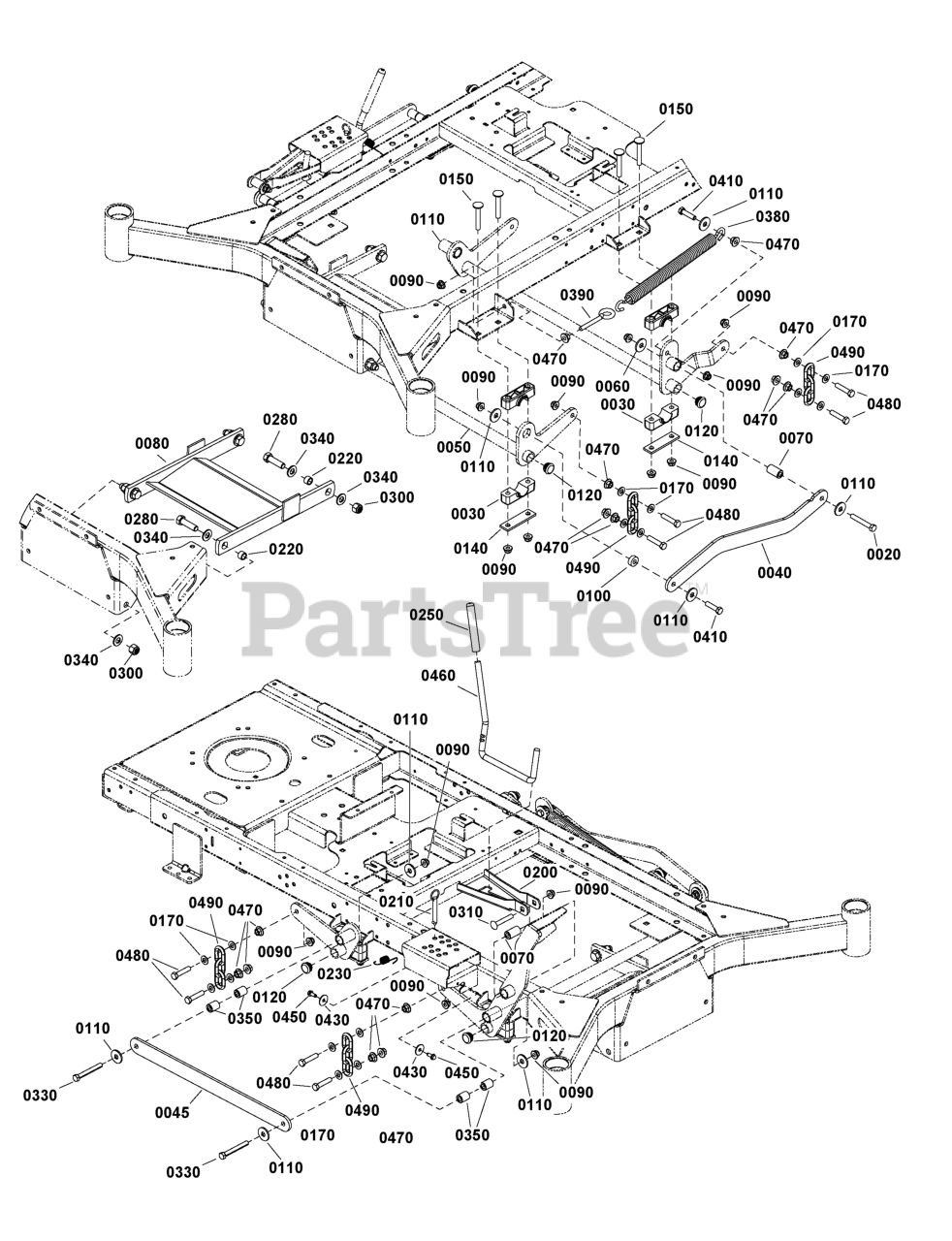

360Z (ZT 2552) (2691816-00) - Snapper 52" Zero-Turn Mower, Fab Deck, 25hp Lift Group Parts Diagram

52" Zero-Turn Mower, Fab Deck, 25hp

Lift Group Parts Diagram

  • Title

0020

Snapper 5025013X20SM

BOLT, 3/8-16 X 2-1/2"
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

0030

Snapper 5100634SM

BLOCK

$7.49

$

Usually ships in 2-12 days

0

0040

Snapper 84006925

LINKAGE, Lift Assist, LH

$29.99

$

Usually ships in 2-12 days

0

0045

Snapper 84006926

LINKAGE, Life Assist, RH

$26.99

$

Usually ships in 2-12 days

0

0050

Snapper 84006914

WELDMENT, Mower Lift

$241.99

$

Usually ships in 2-12 days

0

0060

Snapper 84006915

WELDMENT, Rear Lift Shaft Assembly

$265.99

$

Usually ships in 2-12 days

0

0070

Snapper 1756612YP

BUSHING

$5.49

$

Usually ships in 2-12 days

0

0080

Snapper 84006928

BAR

$175.99

$

Usually ships in 2-12 days

0

0090

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

0110

Snapper 1919384SM

WASHER, 3/8

$5.49

$

In Stock, only 1 left!

0

0120

PLUG

$

$

Not available

0140

Snapper 5403925AYP

PLATE, Pivot

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 1960615SM

BOLT, Carriage, 3/8-16 X 2 1/2

$5.49

$

In Stock, only 1 left!

0

0170

Snapper 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0200

Snapper 1758284AYP

STOP, Height of Cut

$18.99

$

Usually ships in 2-12 days

0

0210

Snapper 5103021YP

PIN, Hitch, 3/8 X 2 1/2

$11.99

$

In Stock, only 2 left!

0

0220

Snapper 5020870SM

INSERT, BEARING

$5.49

$

In Stock, Qty 12

0

0230

Snapper 1758283YP

SPRING, Extension

$6.99

$

In Stock, only 1 left!

0

0250

Snapper 5021880SM

GRIP, FOAM, .475 X 4.35 X .095

$5.99

$

Usually ships in 2-12 days

0

0280

Snapper 5025018X14SM

BOLT, 1/2-20 X 1-3/4" GD5 YZ

$

$

Not available

0300

Snapper 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

In Stock, only 2 left!

0

0310

Snapper 7900009SM

BOLT, Carriage, 3/8-16 X 2 1/4

$3.99

$

In Stock, only 1 left!

0

0330

Snapper 5025013X24SM

CAPSCREW, Hex Head, 3/8-16 x 3

$3.99

$

In Stock, only 1 left!

0

0340

Snapper 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 8

0

0350

Snapper 1733068SM

SPACER, 0.39 x 3/4 x 0.965

$13.99

$

Usually ships in 2-12 days

0

0380

Snapper 5023355SM

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK

$49.99

$

Usually ships in 2-12 days

0

0390

Snapper 5025429SM

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C

$6.49

$

Usually ships in 2-12 days

0

0410

Snapper 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

0430

Snapper 5025288YP

WASHER, 1/4

$3.99

$

In Stock, only 4 left!

0

0450

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0460

Snapper 5105717YP

ROD, Transport

$39.99

$

Usually ships in 2-12 days

0

0470

Snapper 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

In Stock, only 2 left!

0

0480

Snapper 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 2 left!

0

0490

Snapper 5050878X3SM

CHAIN, 5/16" GD30, 3 LINKS

$8.49

$

In Stock, only 2 left!

0
