360Z (ZT 2552) (2691323-00) - Snapper 52"/132cm Zero-Turn Mower, 25hp 52" (132cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

52"/132cm Zero-Turn Mower, 25hp

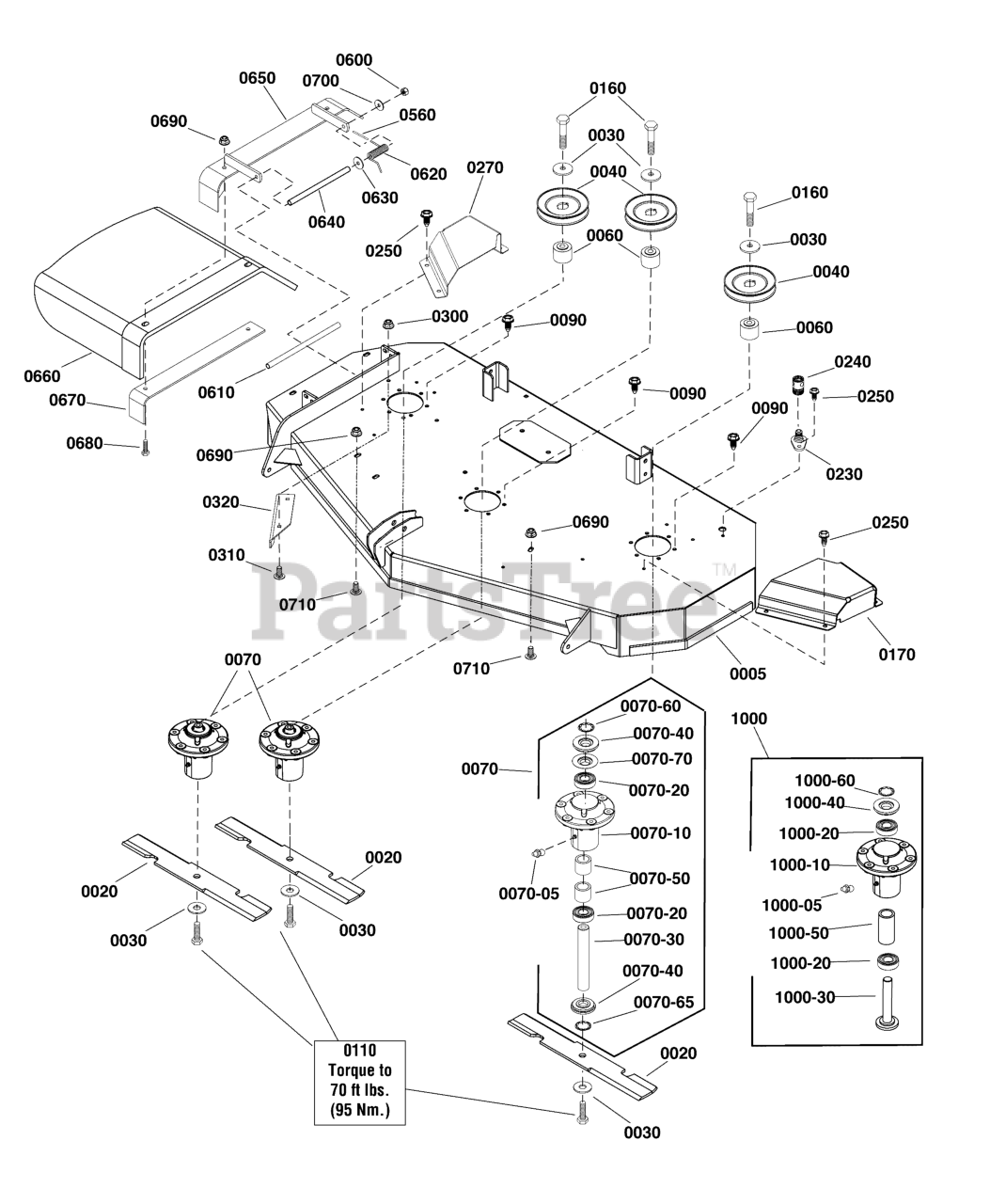

52" (132cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0005

Snapper 1687852YP

DECK, Mower w/Decals Orange, 52"

$1890.99

$

Usually ships in 2-12 days

0

0005

Snapper 1687861YP

DECK, Mower w/Decals Red, 52"

$1823.99

$

Usually ships in 2-12 days

0

0030

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0020

Snapper 1756152SYP

BLADE, Mower, 18" (Set of 3)

$

$

Not available

0030

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Snapper 1732951SM

PULLEY, .68" Deep-Groove OD 4.6"

$19.99

$

In Stock, Qty 20+

0

0060

Snapper 706362

SPACER, Hub

$9.99

$

Usually ships in 2-12 days

0

0070

Snapper 1759614YP

ARBOR ASSEMBLY

Note: (Replaced by Ref. Nos. 1000, this arbor assembly is an exact replacement)

$

$

Not available

0070-05

Snapper 1704314SM

FITTING, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Snapper 1755437YP

HOUSING - Spindle
(Superseded to 1760371YP)

$76.99

$

Usually ships in 2-12 days

0

0070-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Snapper 1759497YP

SHAFT, Spindle

Note: (Replaced by Ref. Nos. 1000-30, this spindle shaft is an exact replacement for the shaft, shield and ring)

$

$

Not available

0070-40

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0070-50

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1000-50, this spacer is an exact replacement)

$6.49

$

In Stock, only 3 left!

0

0070-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0070-65

Snapper 708167

RING, Self Locking, 5/8"

$4.49

$

In Stock, only 2 left!

0

0070-70

Snapper 7106224YP

SEAL, Bearing

$16.99

$

Usually ships in 2-12 days

0

1000

Snapper 84003174

ARBOR ASSEMBLY

$110.99

$

In Stock, Qty 20+

0

1000-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1000-10

Snapper 84003653

HOUSING, w/Lube Fittting

$81.99

$

Usually ships in 2-12 days

0

1000-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-30

Snapper 84003655

SHAFT, Spindle

$28.99

$

In Stock, only 2 left!

0

1000-40

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, Qty 8

0

1000-50

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1000-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0160

Snapper 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$

$

Not available

0170

Snapper 1759303AYP

COVER, Arbor, LH

$45.99

$

Usually ships in 2-12 days

0

0230

Snapper 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0240

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

0250

Snapper 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0270

Snapper 1759305AYP

COVER, Arbor, RH

$45.99

$

Usually ships in 2-12 days

0

0300

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0310

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0320

Snapper 5405557AYP

PLATE, Deflector, 52" Deck - Blk
(Superseded to 5405557YP)

$21.99

$

In Stock, only 1 left!

0

0560

Snapper 5023489SM

CAP, Protector

$3.99

$

Usually ships in 2-12 days

0

0600

Snapper 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 11

0

0610

Snapper 5042555SM

ROD, 5/16 x 13-3/4

$10.99

$

Usually ships in 2-12 days

0

0620

Snapper 5023385SM

SPRING, Torsion

$8.49

$

Usually ships in 2-12 days

0

0630

Snapper 5025164SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 1 left!

0

0640

Snapper 5050086X8SM

TUBE, 8"

$8.99

$

Usually ships in 2-12 days

0

0650

Snapper 5413404AYP

MOUNT, Discharge

$68.99

$

In Stock, only 1 left!

0

0660

Snapper 5413498YP

CHUTE, Discharge

$176.99

$

Usually ships in 2-12 days

0

0670

Snapper 5413401AYP

SUPPORT, Chute

$32.99

$

Usually ships in 2-12 days

0

0680

Snapper 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$3.99

$

Usually ships in 2-12 days

0

0690

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0700

Snapper 703302

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

0710

Snapper 703448

BOLT, Carriage, 3/8-16 X 3/4, GR5

$4.49

$

In Stock, Qty 20+

0
