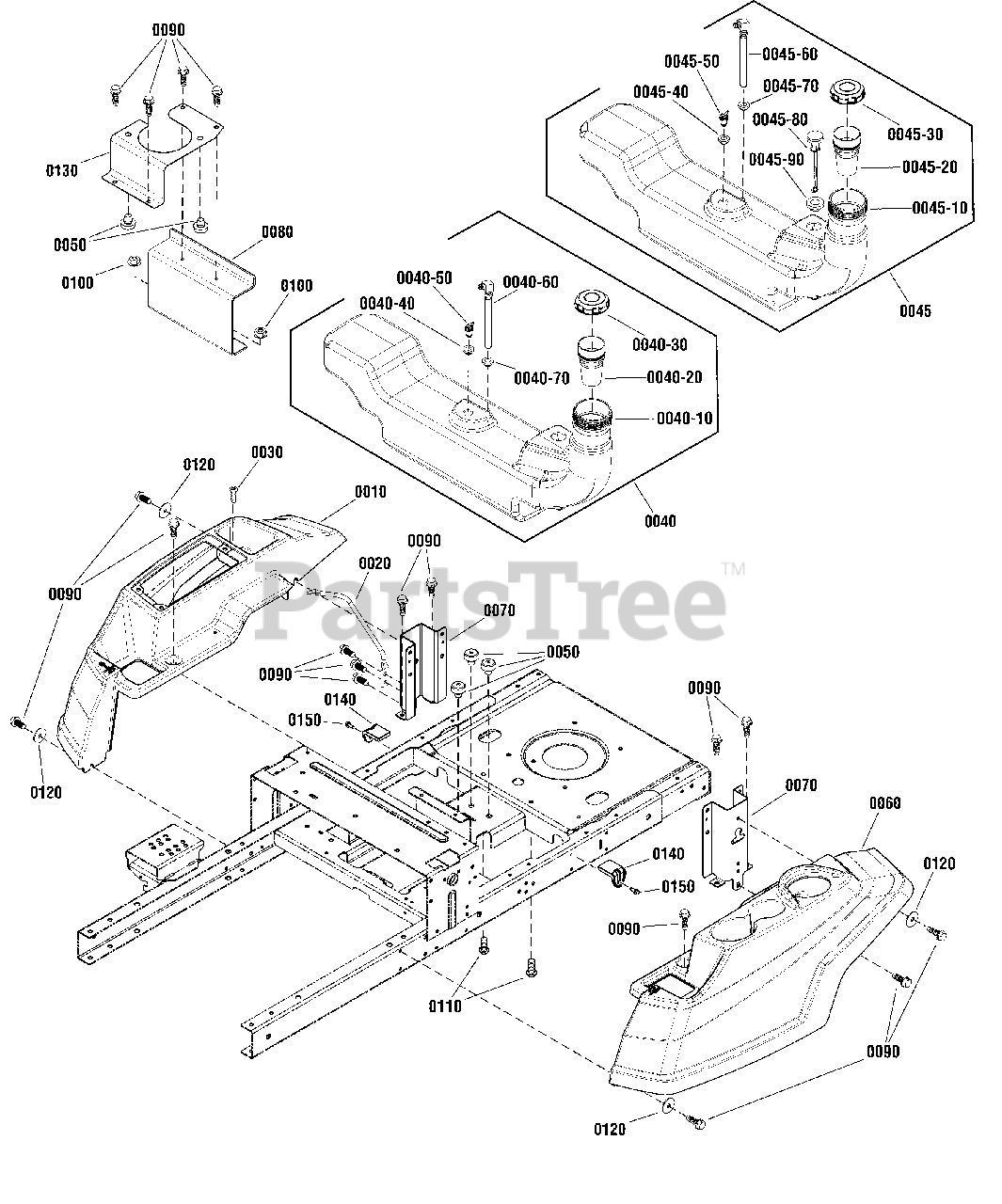

360Z (ZT 2342) (2691506-00) - Snapper 42"/107cm Zero-Turn Mower, FAB Deck, 23hp Body & Fuel Tank Group Parts Diagram

42"/107cm Zero-Turn Mower, FAB Deck, 23hp

Body & Fuel Tank Group Parts Diagram

  • Title

0010

Snapper 1758077YP

FENDER, RH

$253.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759369YP

ROD, Support

$13.99

$

In Stock, only 1 left!

0

0030

Snapper 703953

SCREW, Torx Pan Head Self-Tapping, 1/4-20 X 5/8,

$4.49

$

In Stock, only 2 left!

0

0040

Snapper 1758202YP

FUEL TANK ASSEMBLY, No Fuel Gauge

Note: (Includes item Nos. 0040-10 thru 0040-70)

$451.99

$

Usually ships in 2-12 days

0

0040-10

TANK, Fuel

Note: (Order item 0040)

$

$

Not available

0040-20

Snapper 1758282YP

NECK, Fuel Filter

$16.99

$

Usually ships in 2-12 days

0

0040-30

Snapper 1758314YP

CAP, Fuel (Non Vented)

$35.99

$

Usually ships in 2-12 days

0

0040-40

Snapper 799624

GROMMET

$8.99

$

In Stock, Qty 16

0

0040-50

Snapper 770046

VENT, Remote

$16.99

$

In Stock, only 1 left!

0

0040-60

Snapper 1758927YP

TUBE, Fuel Pickup

$8.99

$

In Stock, Qty 5

0

0040-70

Snapper 1726400SM

BUSHING
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

0045

Snapper 1758919YP

FUEL TANK ASSEMBLY. W / Fuel Gauge

$433.99

$

Usually ships in 2-12 days

0

0045-10

TANK, Fuel

Note: (Order item 0045)

$

$

Not available

0045-20

Snapper 1758282YP

NECK, Fuel Filter

Note: (Includes item Nos. 0045-10 thru 0045-90)

$16.99

$

Usually ships in 2-12 days

0

0045-30

Snapper 1758314YP

CAP, Fuel (Non Vented)

$35.99

$

Usually ships in 2-12 days

0

0045-40

Snapper 799624

GROMMET

$8.99

$

In Stock, Qty 16

0

0045-50

Snapper 770046

VENT, Remote

$16.99

$

In Stock, only 1 left!

0

0045-60

Snapper 1758927YP

TUBE, Fuel Pickup

$8.99

$

In Stock, Qty 5

0

0045-70

Snapper 1726400SM

BUSHING
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

0045-80

Snapper 1758928YP

GAUGE, Fuel

$96.99

$

Usually ships in 2-12 days

0

0150

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0050

Snapper 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0060

Snapper 1758076YP

FENDER, LH

$262.99

$

In Stock, only 1 left!

0

0070

Snapper 1758239AYP

SUPPORT, Rear Fender

$40.99

$

Usually ships in 2-12 days

0

0150

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0090

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0150

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0120

Snapper 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, only 3 left!

0

0130

Snapper 1759140AYP

STRAP, Fuel Tank

$35.99

$

Usually ships in 2-12 days

0

0140

Snapper 1760244YP

SUPPORT, Fuel Tank

$7.49

$

Usually ships in 2-12 days

0

0150

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0045-90

Snapper 84004692

GROMMET

$4.99

$

Usually ships in 2-12 days

0

0080

Snapper 84002196

BRACKET, Seat Spring

$43.99

$

Usually ships in 2-12 days

0

0100

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 704038

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1

$5.99

$

In Stock, only 2 left!

0
