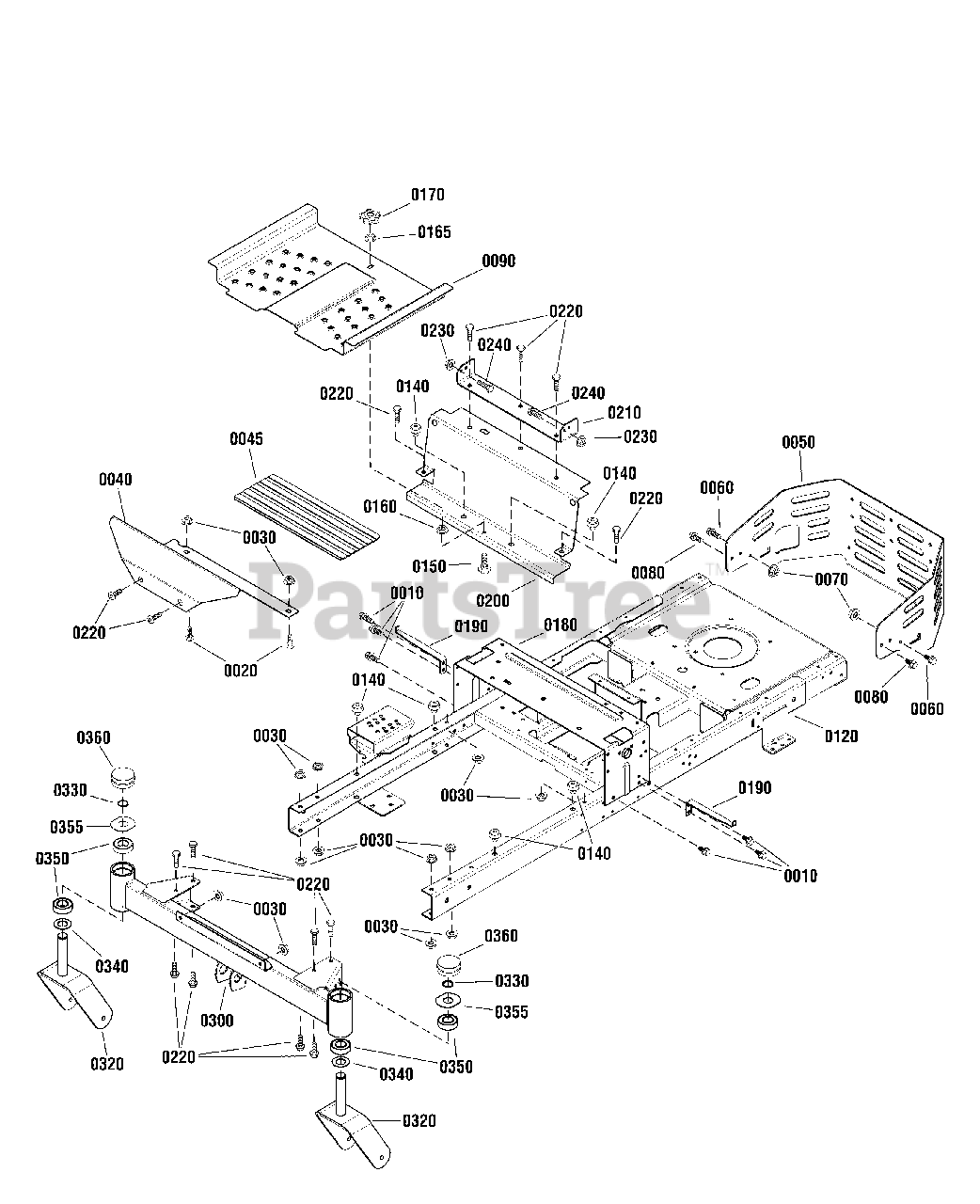

360Z (ZT 2342) (2691412-00) - Snapper 42"/107cm Zero-Turn Mower, 23hp Frame Group Parts Diagram

42"/107cm Zero-Turn Mower, 23hp

Frame Group Parts Diagram

  • Title

0010

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0020

Snapper 703448

BOLT, Carriage, 3/8-16 X 3/4, GR5

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 1758894DYP

FOOTREST

$131.99

$

Usually ships in 2-12 days

0

0045

Snapper 5101374YP

SAFETY WALK

$18.99

$

In Stock, only 1 left!

0

0050

Snapper 1759501DYP

BUMPER, Rear

$335.99

$

Usually ships in 2-12 days

0

0060

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0070

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0080

Snapper 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 1757813DYP

PAN, Foot

$137.99

$

Usually ships in 2-12 days

0

0120

FRAME, Fixed ZT

Note: (Not a serviceable part)

$

$

Not available

0140

Snapper 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0150

Snapper 7090496YP

BOLT, Carriage, 1/4C X 1, GR5

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 5

0

0165

Snapper 703954

NUT, Centerlock, 1/4-20, GR5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0170

Snapper 707785

KNOB, 5 Prong

$5.99

$

Usually ships in 2-12 days

0

0180

Snapper 1758010DYP

BRACKET, Control

$131.99

$

Usually ships in 2-12 days

0

0190

Snapper 1758240AYP

BRACKET, Fender

$9.49

$

Usually ships in 2-12 days

0

0200

Snapper 1757796DYP

BRACKET, Brand

$108.99

$

Usually ships in 2-12 days

0

0210

Snapper 1758835DYP

BRACKET, Seat

$47.99

$

Usually ships in 2-12 days

0

0220

Snapper 707790

SCREW, Button Head, 3/8-16 X .88
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper 5025339YP

NUT, Hex, 8-32

$2.99

$

Usually ships in 2-12 days

0

0240

Snapper 707790

SCREW, Button Head, 3/8-16 X .88
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0300

Snapper 1757819DYP

AXLE, Front

$313.99

$

Usually ships in 2-12 days

0

0320

Snapper 1757845DYP

CASTER, Front

$93.99

$

In Stock, only 2 left!

0

0330

Snapper 703993

RETAINER, Ring

$3.49

$

In Stock, Qty 11

0

0340

Snapper 703199

WASHER, Flat

$4.99

$

In Stock, only 2 left!

0

0350

Snapper 1758354YP

BEARING, 25 MM

$10.99

$

In Stock, only 2 left!

0

0355

Snapper 1722726SM

WASHER

$5.49

$

In Stock, only 1 left!

0

0360

Snapper 1725651SM

COVER, Spindle

$4.49

$

In Stock, Qty 20+

0
