360Z (ZT 2246) (2691500-01) - Snapper 46"/117cm Zero-Turn Mower, 22hp Briggs & Stratton Frame Group (2992586) Parts Diagram

46"/117cm Zero-Turn Mower, 22hp Briggs & Stratton

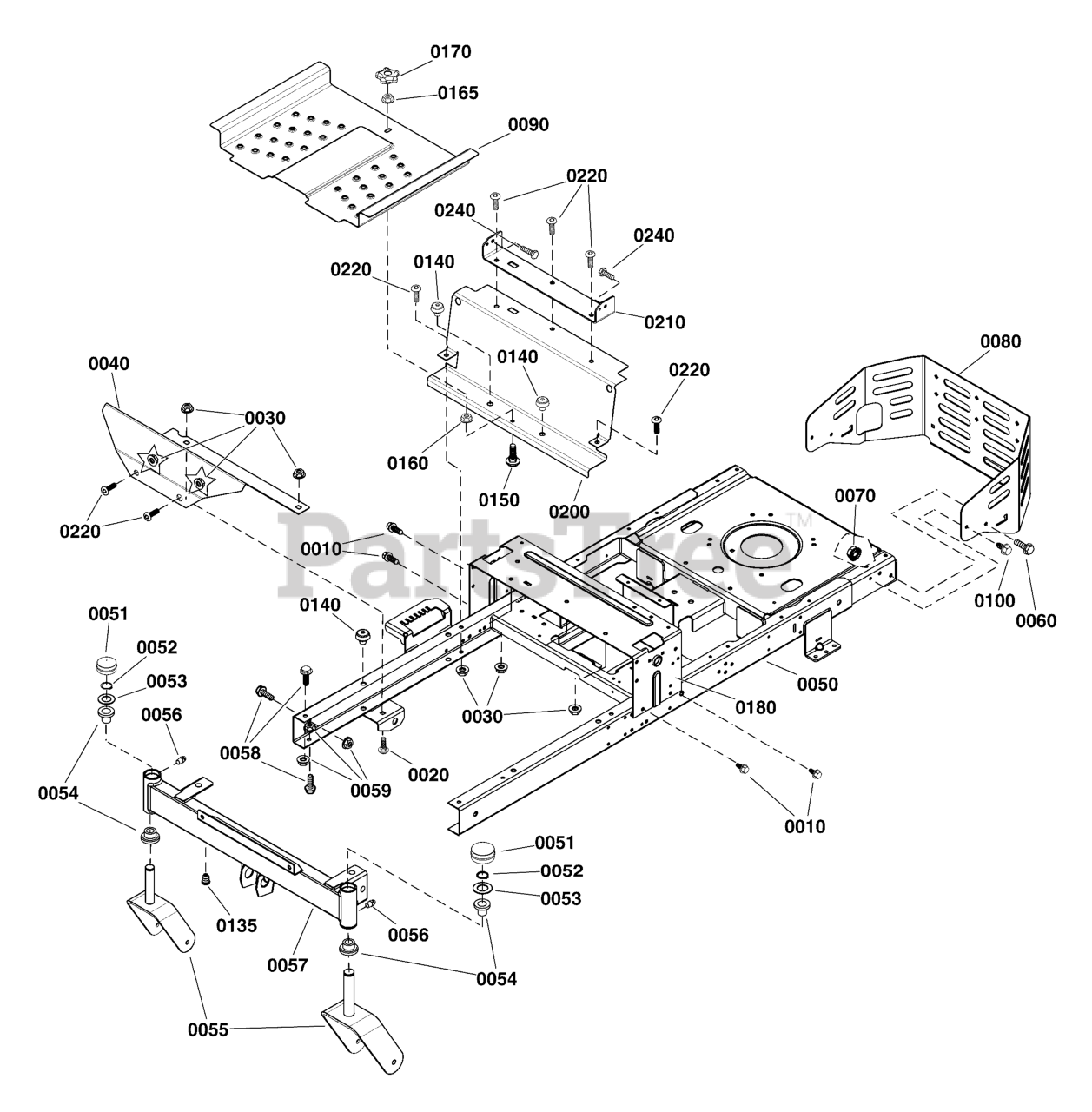

Frame Group (2992586) Parts Diagram

  • Title

0010

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0020

Snapper 703448

BOLT, Carriage, 3/8-16 X 3/4, GR5

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0040

Snapper 84002338

FOOTREST, Front

$104.99

$

Usually ships in 2-12 days

0

0050

FRAME

Note: (Not a serviceable part)

$

$

Not available

0051

Snapper 84002102

CAP, Vinyl

$4.49

$

In Stock, only 1 left!

0

0052

Snapper 703993

RETAINER, Ring

$3.49

$

In Stock, Qty 14

0

0053

Snapper 703149

WASHER, Flat, 1

$3.49

$

In Stock, Qty 20+

0

0054

Snapper 1721682SM

BUSHING, 31/32 x 1-1/4 x 3/4, Powder Metal

$5.49

$

In Stock, Qty 20+

0

0055

Snapper 84002868

CASTER, Yoke

$79.99

$

In Stock, only 1 left!

0

0056

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0057

Snapper 84002873

FRONT AXLE ASSEMBLY

$

$

Currently unavailable

0058

Snapper 704038

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1

$5.99

$

In Stock, only 3 left!

0

0059

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0060

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0070

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0080

Snapper 84002340

BUMPER, Rear

$219.99

$

Usually ships in 2-12 days

0

0090

Snapper 1757813DYP

PAN, Foot

$137.99

$

Usually ships in 2-12 days

0

0100

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0135

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0140

Snapper 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0150

Snapper 7090496YP

BOLT, Carriage, 1/4C X 1, GR5

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 9

0

0165

Snapper 15X143MA

NUT, Center Lock, 1/4-20

$4.99

$

In Stock, Qty 13

0

0170

Snapper 707785

KNOB, 5 Prong

$5.99

$

Usually ships in 2-12 days

0

0180

Snapper 1758010DYP

BRACKET, Control

$131.99

$

Usually ships in 2-12 days

0

0200

Snapper 1757796DYP

BRACKET, Brand

$108.99

$

Usually ships in 2-12 days

0

0210

Snapper 84001615

BRACKET, Seat

$28.99

$

Usually ships in 2-12 days

0

0220

Snapper 84004627

SCREW, Pan head Torx, 3/8-16 x .88

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 703932

SCREW, 5/16-18 x 1/2" Torx Pan Head

$4.99

$

Usually ships in 2-12 days

0

0360

Snapper 84002102

CAP, Vinyl

$4.49

$

In Stock, only 1 left!

0
