360Z (ZT 2246) (2691500-01) - Snapper 46"/117cm Zero-Turn Mower, 22hp Briggs & Stratton Electrical Group (2992267) Parts Diagram

46"/117cm Zero-Turn Mower, 22hp Briggs & Stratton

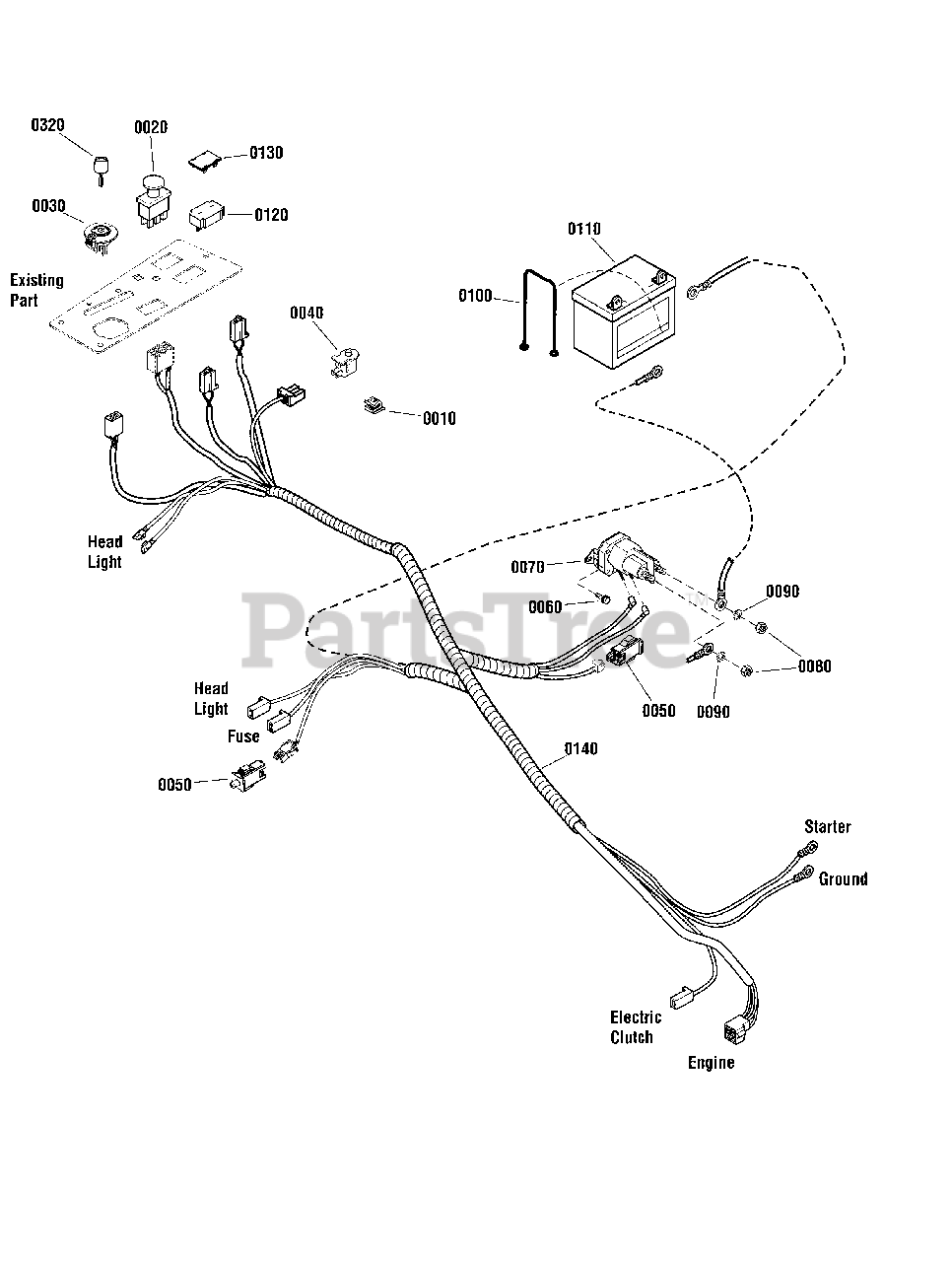

Electrical Group (2992267) Parts Diagram

  • Title

0010

Snapper 2172434SM

CLIP, Wire, .390 Dia.

$4.99

$

Usually ships in 2-12 days

0

0020

Snapper 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0030

Snapper 7106169YP

SWITCH, Ignition, Delta (3 Postition)

$17.99

$

In Stock, Qty 20+

0

0040

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0050

Snapper 7022886YP

SWITCH, DP, NO/NC, Snap-In

$14.99

$

In Stock, Qty 20+

0

0060

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0070

Snapper 1755382YP

SOLENOID, 1/4-20 STD, 2 Spade

$29.99

$

In Stock, Qty 20+

0

0080

Snapper 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 11

0

0100

Snapper 1722009SM

STRAP, Rubber, 13"

$10.99

$

In Stock, only 1 left!

0

0320

Snapper 7106172YP

KEY, Ignition Switch - Pack of 2, CE/CAN

$28.99

$

In Stock, only 3 left!

0

0320

Snapper 7106170YP

KEY, Ignition Switch, Pack of 2, NA/AU

$21.99

$

In Stock, only 1 left!

0

0110

BATTERY, 12 Volt, 230 CCA

$

$

Not available

0120

Snapper 1731185SM

HOUR METER, Digital, No Alarms

$60.99

$

In Stock, only 2 left!

0

0130

Snapper 1722611SM

PLUG, Hole, .85 X 1.73

$6.99

$

In Stock, only 1 left!

0

0140

Snapper 1758084YP

HARNESS, Main, ZTR
(Superseded to 84002334)

$158.99

$

Usually ships in 2-12 days

0
