360Z (ZT 2246) (2691500-00) - Snapper 46"/117cm Zero-Turn Mower, 22hp Briggs & Stratton 46" Mower Deck - Housing, Arbor & Blade Group (2992707) Parts Diagram

46"/117cm Zero-Turn Mower, 22hp Briggs & Stratton

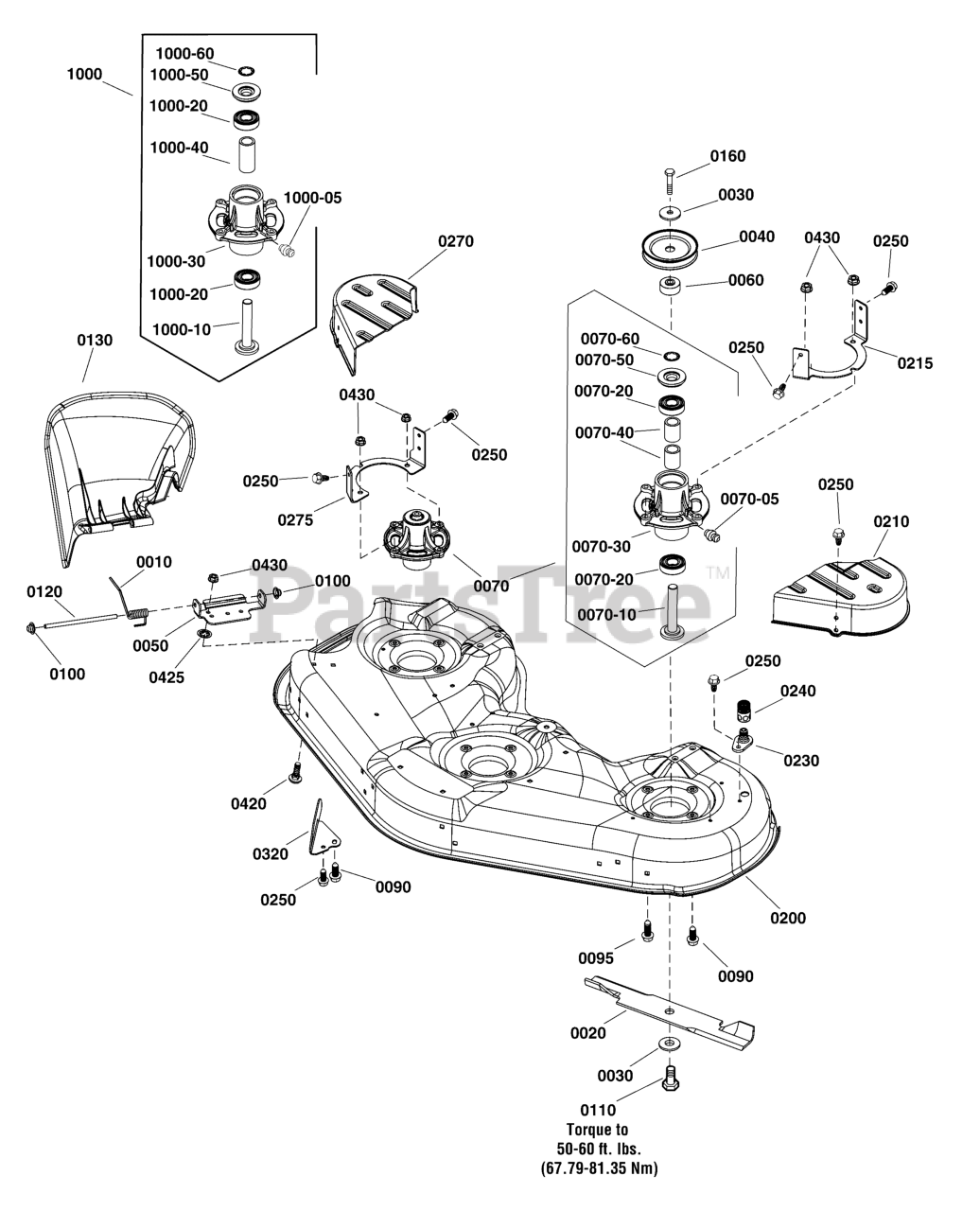

46" Mower Deck - Housing, Arbor & Blade Group (2992707) Parts Diagram

  • Title

0010

Snapper 1755412YP

SPRING, Torsion, Deflector

$6.99

$

Usually ships in 2-12 days

0

0020

Snapper 1737228BZYP

BLADE, Mower, 16.13 Long

$21.99

$

In Stock, Qty 20+

0

0030

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Snapper 1735686YP

PULLEY, Split, 4.6 OD

$19.99

$

In Stock, only 3 left!

0

0050

Snapper 1754868AYP

BRACKET, Hinge, Retro

$17.99

$

Usually ships in 2-12 days

0

0060

Snapper 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0070

Snapper 7502226YP

ARBOR ASSEMBLY
(Superseded to 84003175)

Note: (Replaced by Ref. Nos. 1000, this arbor assembly is an exact replacement)

$100.99

$

In Stock, only 1 left!

0

0070-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Snapper 1760276YP

SHAFT, Spindle

Note: (Replaced by Ref. Nos. 1000-10, this spindle shaft is an exact replacement)

$27.99

$

In Stock, only 2 left!

0

0070-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Snapper 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 11

0

0070-40

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1000-40, this spacer is an exact replacement)

$6.49

$

In Stock, only 1 left!

0

0070-50

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0070-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

1000

Snapper 84003175

ARBOR ASSEMBLY

$100.99

$

In Stock, only 1 left!

0

1000-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1000-10

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 11

0

1000-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-30

Snapper 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

1000-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1000-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, only 3 left!

0

1000-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0095

Snapper 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0100

Snapper 704028

PUSHNUT, 5/16

$5.49

$

In Stock, only 4 left!

0

0110

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 16

0

0120

Snapper 1759064YP

ROD, Deflector

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 1687750YP

DEFLECTOR, Discharge, 46/52

Note: (Includes Ref. Nos. 0010, 0050, 0100, 0120 , 0130, 0420, 0425, 0430)

$37.99

$

In Stock, Qty 20+

0

0160

Snapper 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$

$

Not available

0200

Snapper 1688017

KIT, Mower Deck, w/Decals, 46", Red

$988.99

$

Usually ships in 2-12 days

0

0210

Snapper 1759289YP

COVER, Spindle, 46"/ 52" Mower, LH

$56.99

$

Usually ships in 2-12 days

0

0215

Snapper 84002339

BRACKET, Mounting, LH

$31.99

$

Usually ships in 2-12 days

0

0230

Snapper 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0240

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

Usually ships in 2-12 days

0

0250

Snapper 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0270

Snapper 1759290YP

COVER, Spindle, 46"/52" Mower, RH

$56.99

$

Usually ships in 2-12 days

0

0275

Snapper 84002347

BRACKET, Mounting, RH

$26.99

$

Usually ships in 2-12 days

0

0320

Snapper 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0420

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0425

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0430

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 3 left!

0
