360Z (ZT 21548) (2691828-00) - Snapper 48" Zero-Turn Mower, Fab Deck, 21.5hp CARB 48" Mower Deck - Clutch & Support Group Parts Diagram

48" Zero-Turn Mower, Fab Deck, 21.5hp CARB

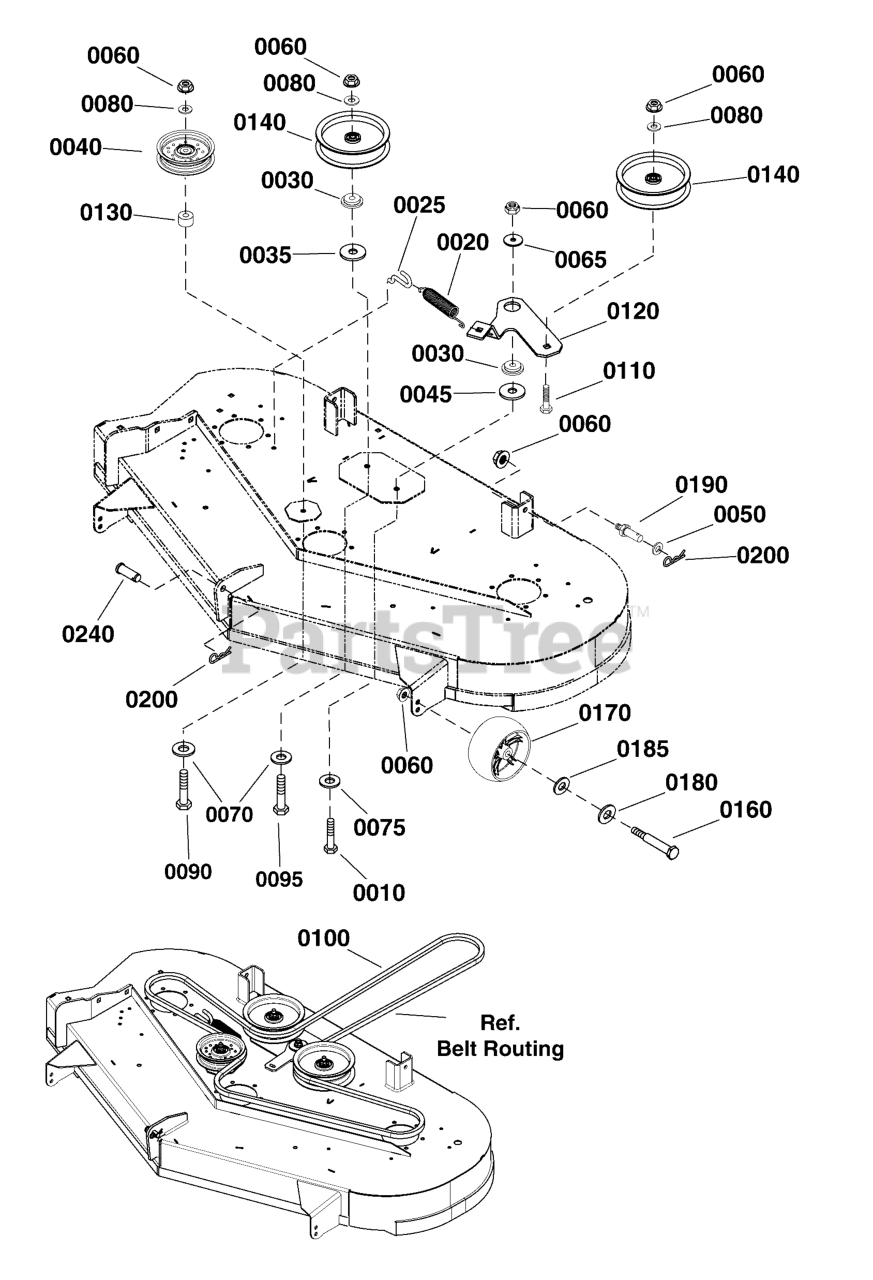

48" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Snapper 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

0020

Snapper 1715772SM

SPRING, Extension

$13.99

$

In Stock, Qty 20+

0

0025

Snapper 1758170YP

ANCHOR, Spring

$8.49

$

In Stock, only 1 left!

0

0030

Snapper 706128

SPACER, Idler

$6.99

$

In Stock, only 4 left!

0

0035

Snapper 1960071SM

WASHER, 3/8

$8.49

$

In Stock, only 1 left!

0

0040

Snapper 1757823YP

PULLEY, Idler, Backside

$22.99

$

In Stock, Qty 13

0

0045

Snapper 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

In Stock, only 3 left!

0

0050

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0060

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0065

Snapper 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

In Stock, only 3 left!

0

0070

Snapper 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 20+

0

0075

Snapper 1919384SM

WASHER, 3/8

$5.49

$

In Stock, only 1 left!

0

0080

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 703133

CAPSCREW, Hex Head, 3/8-16 X 2 3/4, GR5

$3.99

$

Usually ships in 2-12 days

0

0095

Snapper 1923903SM

CAPSCREW, Hex Head, 3/8-16 x 3, Black

$4.49

$

In Stock, only 1 left!

0

0100

Snapper 84003367

V-BELT, HA

$71.99

$

In Stock, Qty 20+

0

0110

Snapper 7900009SM

BOLT, Carriage, 3/8-16 X 2 1/4

$3.99

$

In Stock, only 1 left!

0

0120

Snapper 1760882AYP

ARM, Idler

$52.99

$

Usually ships in 2-12 days

0

0130

Snapper 1667812SM

SPACER, .390 ID .90 OD 0.70 Lg

$5.99

$

In Stock, Qty 16

0

0140

Snapper 84003633

PULLEY, Flat Idler

$39.99

$

In Stock, Qty 12

0

0160

Snapper 1736539YP

BOLT, Shoulder, 3/8-16 X 3.41

$8.99

$

Usually ships in 2-12 days

0

0170

Snapper 1736896YP

WHEEL, Gauge

$16.99

$

In Stock, only 4 left!

0

0180

Snapper 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 8

0

0185

Snapper 0020X3MA

WASHER, Spring

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 704054

PIN, Threaded Shoulder, 3/8-16 X 11/16

$7.49

$

In Stock, Qty 20+

0

0200

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0240

Snapper 5025479YP

PIN, Clevis, 1/2 X 1 23/64

$3.99

$

In Stock, only 2 left!

0
