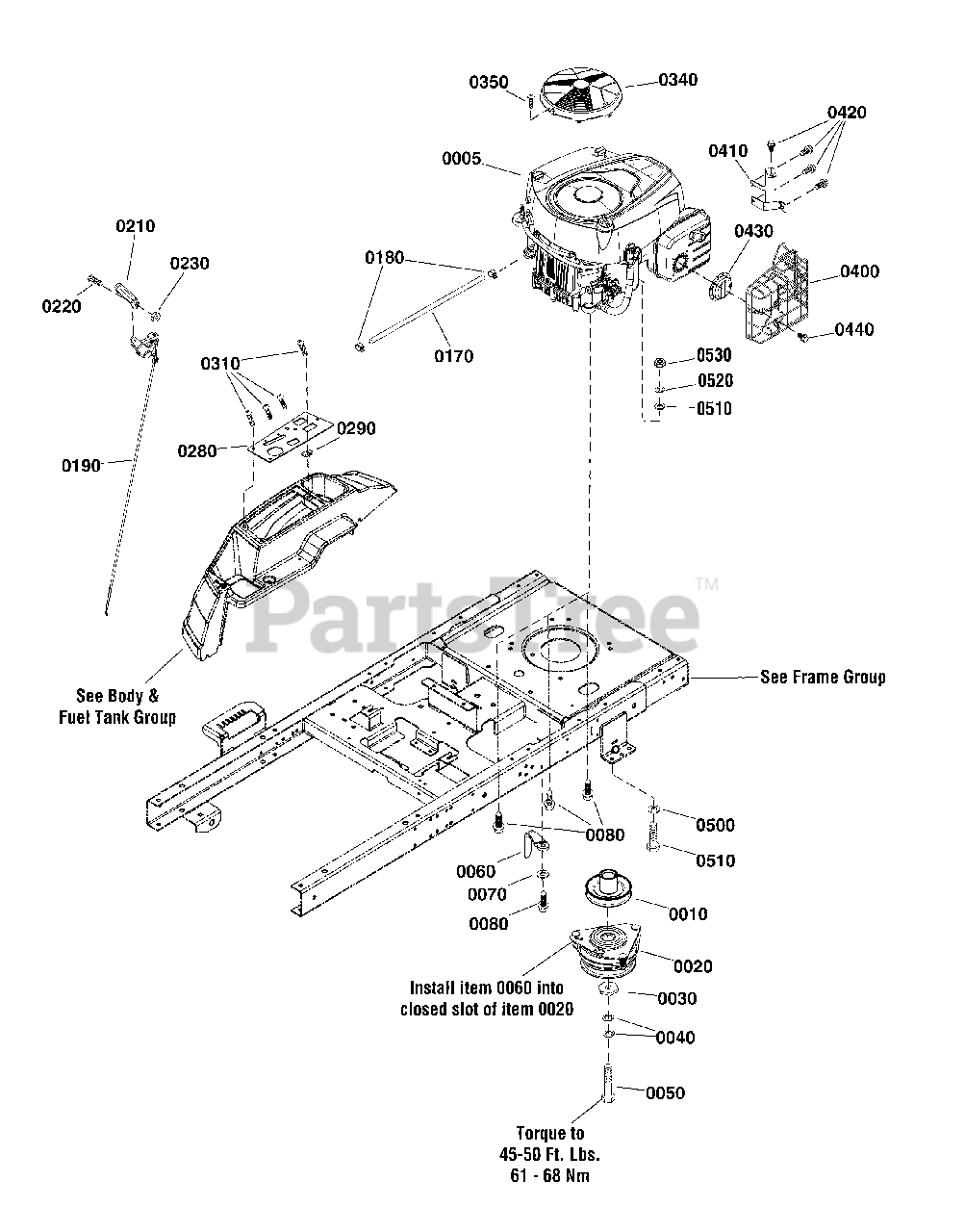

360Z (ZT 1936) (2691499-00) - Snapper 36"/91cm Zero-Turn Mower, FAB Deck, 19hp Engine Group (2992565) Parts Diagram

36"/91cm Zero-Turn Mower, FAB Deck, 19hp

Engine Group (2992565) Parts Diagram

  • Title

0005

Snapper 33S877-0022-G1

*ENGINE, 19 Gross HP B&S Single

Note: (Engine Model: 33S87-0022-G1)

$

$

Currently unavailable

0010

Snapper 1757995YP

PULLEY ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736105SM

CLUTCH, Ogura

$387.99

$

Usually ships in 2-12 days

0

0030

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0040

Snapper 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

0050

Snapper 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

$6.99

$

In Stock, only 2 left!

0

0060

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 10

0

0070

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0170

Snapper 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

0180

Snapper 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

0190

Snapper 1759205YP

CONTROL, Throttle

$43.99

$

In Stock, only 3 left!

0

0210

Snapper 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0220

Snapper 797483

SCREW

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper 703460

NUT

$3.99

$

In Stock, Qty 9

0

0280

Snapper 84001947

PANEL, Control

$25.99

$

Usually ships in 2-12 days

0

0290

Snapper 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0310

Snapper 7090999SM

SCREW, Phillips Head, 1/4-20 X 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0340

Snapper 799358

GUARD, Debris Screen

$45.99

$

In Stock, only 2 left!

0

0350

Snapper 799359

SCREW

$4.49

$

In Stock, only 3 left!

0

0400

Snapper 597456

GUARD, Muffler

$65.99

$

Usually ships in 2-12 days

0

0410

Snapper 597456

GUARD, Muffler

Note: (Included with Ref Nos 0400)

$65.99

$

Usually ships in 2-12 days

0

0420

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0430

Snapper 795038

DEFLECTOR, Muffler

$15.99

$

Usually ships in 2-12 days

0

0440

Snapper 96046

SCREW, Hex Washer Head

$

$

Currently unavailable

0500

Snapper 7091513YP

SCREW, 5/16-24 X 1.75, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 14

0

0510

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

0520

Snapper 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0530

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0
