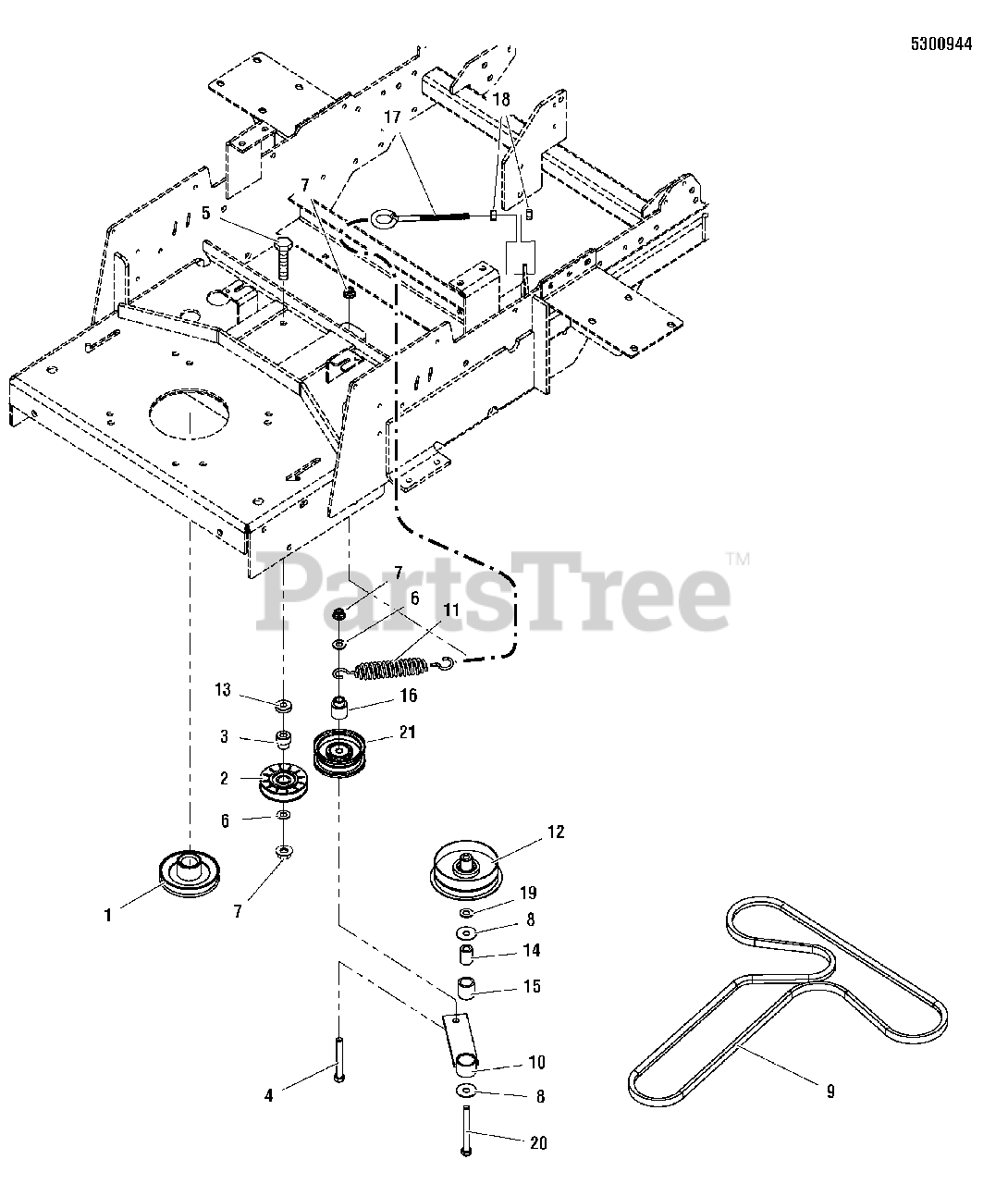

360Z (B 2450 CE) (5900760) - Snapper 50" Zero-Turn Mower, 24hp Pump Drive Group Parts Diagram

50" Zero-Turn Mower, 24hp

Pump Drive Group Parts Diagram

  • Title

1

Snapper 5101296

PULLEY, CRANKSHAFT
(Superseded to 5101296SM)

$32.99

$

Usually ships in 2-12 days

0

2

Snapper 5021079

IDLER PULLEY
(Superseded to 5021079SM)

$30.99

$

In Stock, only 1 left!

0

3

Snapper 5049184

SPACER, HYDRO PULLEY
(Superseded to 5049184SM)

$5.49

$

In Stock, Qty 6

0

4

Snapper 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

5

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 5025165

WASHER, 3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

9

Snapper 5101033

BELT, 79.46 EL, HYDRO DRIVE
(Superseded to 5101033SM)

$58.99

$

In Stock, only 1 left!

0

10

Snapper 5402847D

WELD, IDLER, PUMP DRIVE - RED
(Superseded to 5402847DYP)

$35.99

$

Usually ships in 2-12 days

0

11

Snapper 5022847

SPRING, EXTENSION, SWIVEL END
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 8

0

12

Snapper 5101080

PULLEY, IDLER, SINGLE FLANGE, 4" OD
(Superseded to 5101080SM)

$

$

Not available

13

Snapper 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

14

Snapper 5042658

SPACER, .39 X .75 X 1.06
(Superseded to 5042658SM)

$7.49

$

Usually ships in 2-12 days

0

15

Snapper 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 5045943

SPACER, SHOULDER
(Superseded to 5045943SM)

$11.99

$

In Stock, only 1 left!

0

17

Snapper 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

18

Snapper 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 5025293

WASHER, 3/8 GD. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

20

Snapper 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

21

Snapper 5101105

PULLEY, IDLER, FLAT, 2.75 DIA X .376 ID
(Superseded to 1721133SM)

$29.99

$

In Stock, Qty 20+

0
