36003 (824 QXE) - Toro 24" SnowMaster Snow Thrower (SN: 402082000 - 404309999) Handle and Control Assembly Parts Diagram

24" SnowMaster Snow Thrower

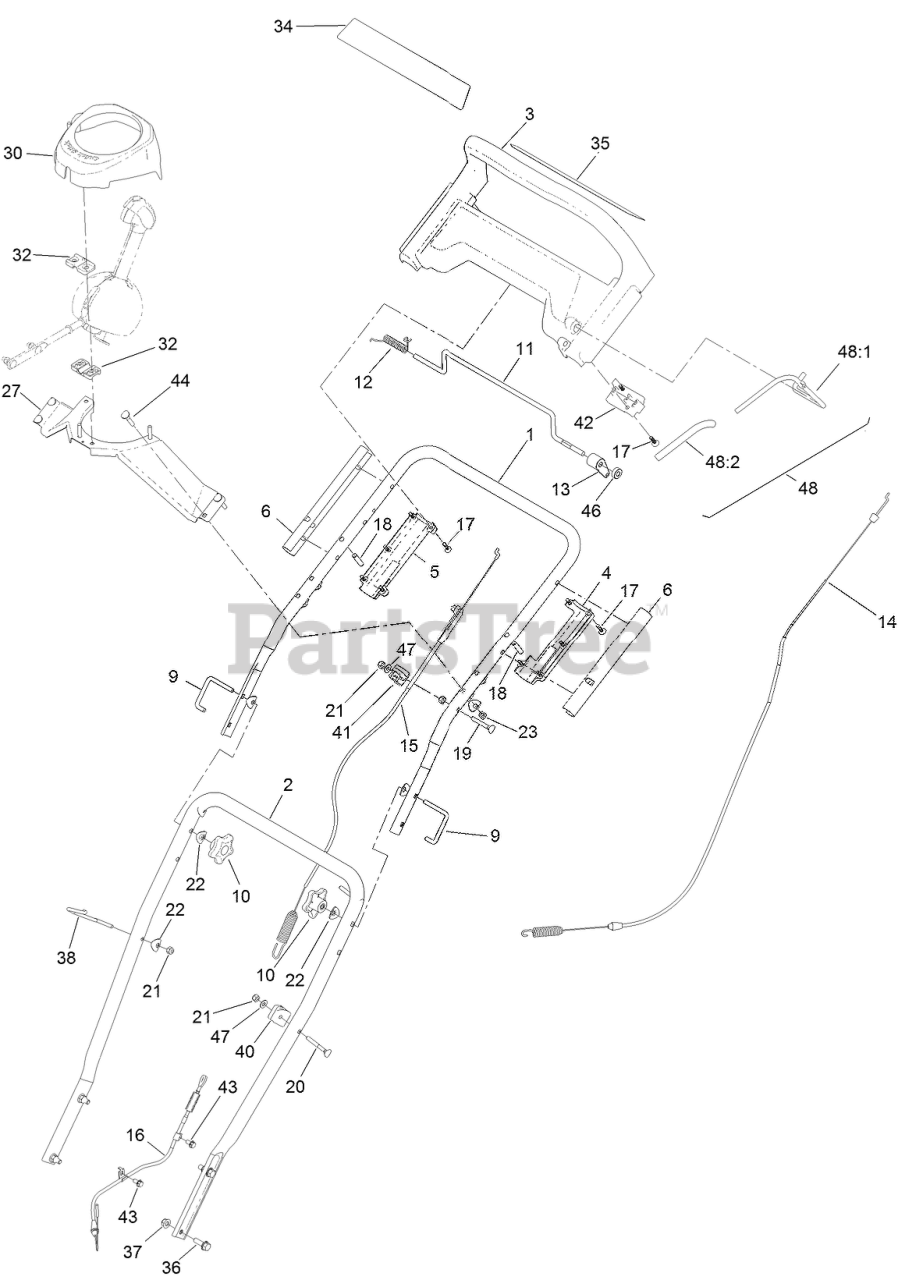

Handle and Control Assembly Parts Diagram

  • Title
1

Toro 120-2333-03

HANDLE-UPPER

$68.99

$

Usually ships in 3-6 days

0

2

Toro 120-2334-03

HANDLE-LOWER

$72.99

$

Usually ships in 3-6 days

0

3

Toro 131-5921

HANDLE

$

$

Not available

4

Toro 120-2336

HANDLE-BOTTOM, LH

$4.99

$

Usually ships in 3-6 days

0

5

Toro 131-1770

HANDLE-BOTTOM, RH

$4.99

$

Usually ships in 3-6 days

0

6

Toro 120-2343

SLEEVE HANDLE

$4.99

$

Usually ships in 3-6 days

0

9

Toro 136-7130

LOCK-HANDLE

$5.49

$

In Stock, Qty 20+

0

10

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

11

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

0

12

Toro 136-7166

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

13

Toro 131-5917

LEVER-TRACTION

$3.99

$

Usually ships in 3-6 days

0

14

Toro 131-5924

CABLE-TRANSMISSION

$21.99

$

In Stock, Qty 9

0

15

Toro 120-2338

CABLE-ROTOR, UPPER

$25.99

$

In Stock, only 2 left!

0

16

Toro 131-1753

CABLE-ROTOR, LOWER

$25.99

$

Usually ships in 3-6 days

0

17

$1.49

$

Usually ships in 3-6 days

0

18

Toro 131-1771

PIN-DOWEL

$0.99

$

Usually ships in 3-6 days

0

19

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

20

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

21

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 9

0

22

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 20+

0

23

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 9

0

27

Toro 120-2342-03

BRACKET-CHUTE, CONTROL

$30.99

$

Usually ships in 3-6 days

0

30

Toro 131-5906

COVER TOP
(Superseded to 139-3507)

$14.99

$

Usually ships in 3-6 days

0

32

Toro 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 7

0

34

Toro 131-1788

DECAL-DISPLAY

$5.99

$

Usually ships in 3-6 days

0

35

Toro 131-1785

DECAL-CONTROL, PANEL

$4.49

$

In Stock, only 1 left!

0

36

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

37

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 136-7147

GUIDE-ROPE

$2.99

$

Usually ships in 3-6 days

0

40

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 13

0

41

Toro 131-5903

CABLE-GUIDE

$3.99

$

Usually ships in 3-6 days

0

42

Toro 131-5901

BAIL-MOUNT

$3.99

$

Usually ships in 3-6 days

0

43

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

44

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 11

0

46

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 20+

0

47

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Toro 131-5943

BAIL ASM

$17.99

$

Usually ships in 3-6 days

0

48:1

BAIL-AUGER

Note: Not serviced separately

$

$

Not available

48:2

Toro 131-5902

COVER-BAIL

$2.99

$

Usually ships in 3-6 days

0
