36002 (724 QXE) - Toro 24" SnowMaster Snow Thrower (SN: 416000000 - 999999999) Ignition and Electrical Assembly Parts Diagram

24" SnowMaster Snow Thrower

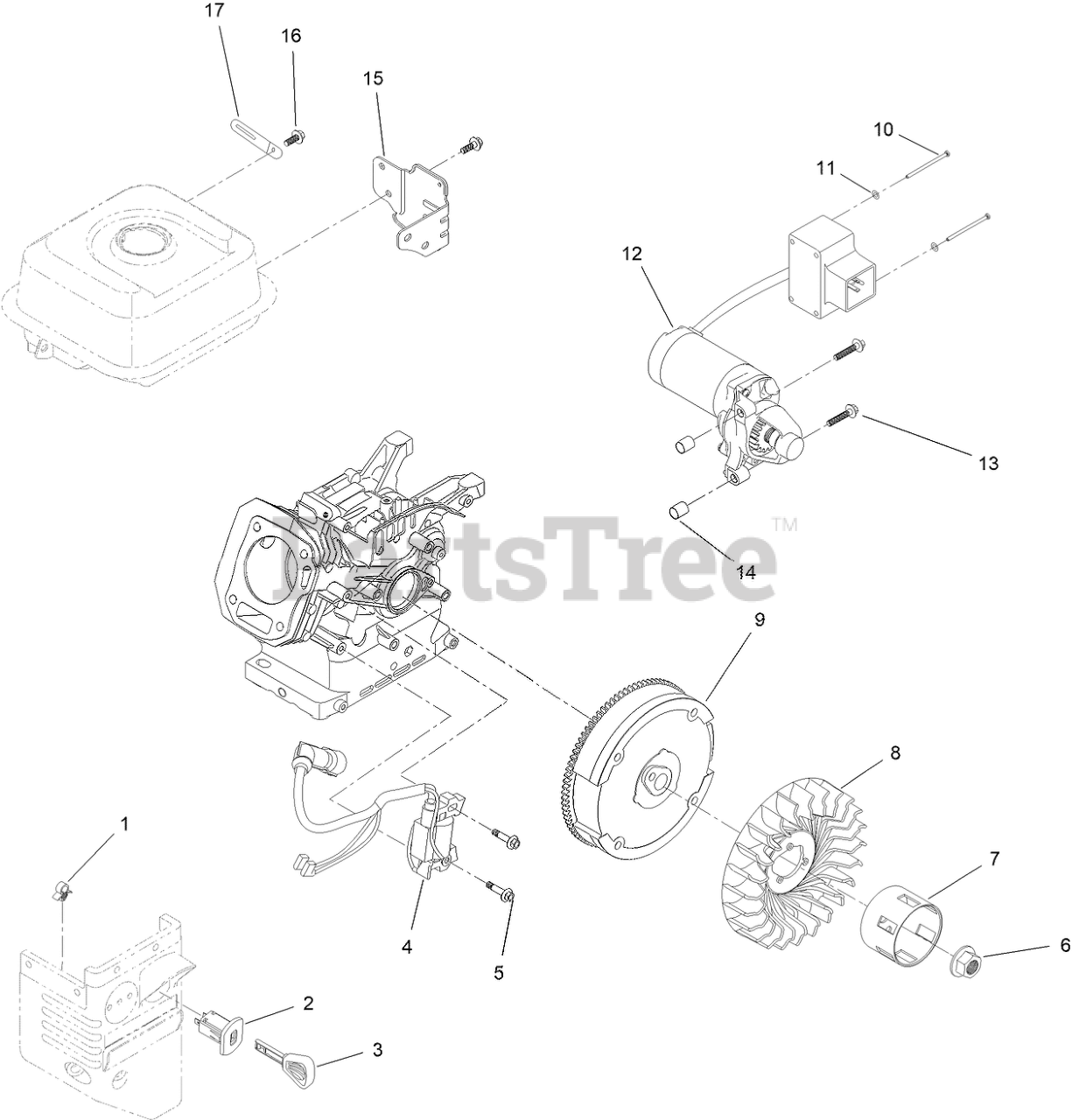

Ignition and Electrical Assembly Parts Diagram

  • Title

1

Toro 121-0326

CLIP

$1.99

$

Usually ships in 3-6 days

0

2

Toro 121-0283

SWITCH-KEY

$9.49

$

In Stock, Qty 7

0

3

Toro 117-7728

KEY

$4.49

$

In Stock, Qty 20+

0

4

Toro 136-7769

IGNITION COIL ASM

$82.99

$

Usually ships in 3-6 days

0

5

Toro 121-0097

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

6

Toro 121-0047

NUT-FLANGE

$3.99

$

Usually ships in 3-6 days

0

7

Toro 127-9106

CUP-STARTER

$23.99

$

Usually ships in 3-6 days

0

8

Toro 127-9002

FAN

$18.99

$

Usually ships in 3-6 days

0

9

Toro 127-9005

FLYWHEEL

$120.99

$

Usually ships in 3-6 days

0

10

Toro 121-0306

SCREW-BHP

$1.49

$

In Stock, Qty 6

0

11

Toro 121-0312

WASHER-PLAIN

$1.49

$

In Stock, only 2 left!

0

12

Toro 144-0986

MOTOR-STARTER

$371.99

$

Usually ships in 3-6 days

0

13

Toro 133-1546

SCREW-FLANGE

$1.99

$

Usually ships in 3-6 days

0

14

Toro 121-0055

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

15

Toro 127-9407

BRACKET-BOX, SWITCH

$11.99

$

Usually ships in 3-6 days

0

16

Toro 127-9123

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

17

Toro 121-0017

CLIP-HARNESS, WIRE

$2.49

$

Usually ships in 3-6 days

0
