36002 (724 QXE) - Toro 24" SnowMaster Snow Thrower (SN: 402082000 - 404309999) BLOWER HOUSING AND SHROUDS ASSEMBLY Parts Diagram

24" SnowMaster Snow Thrower

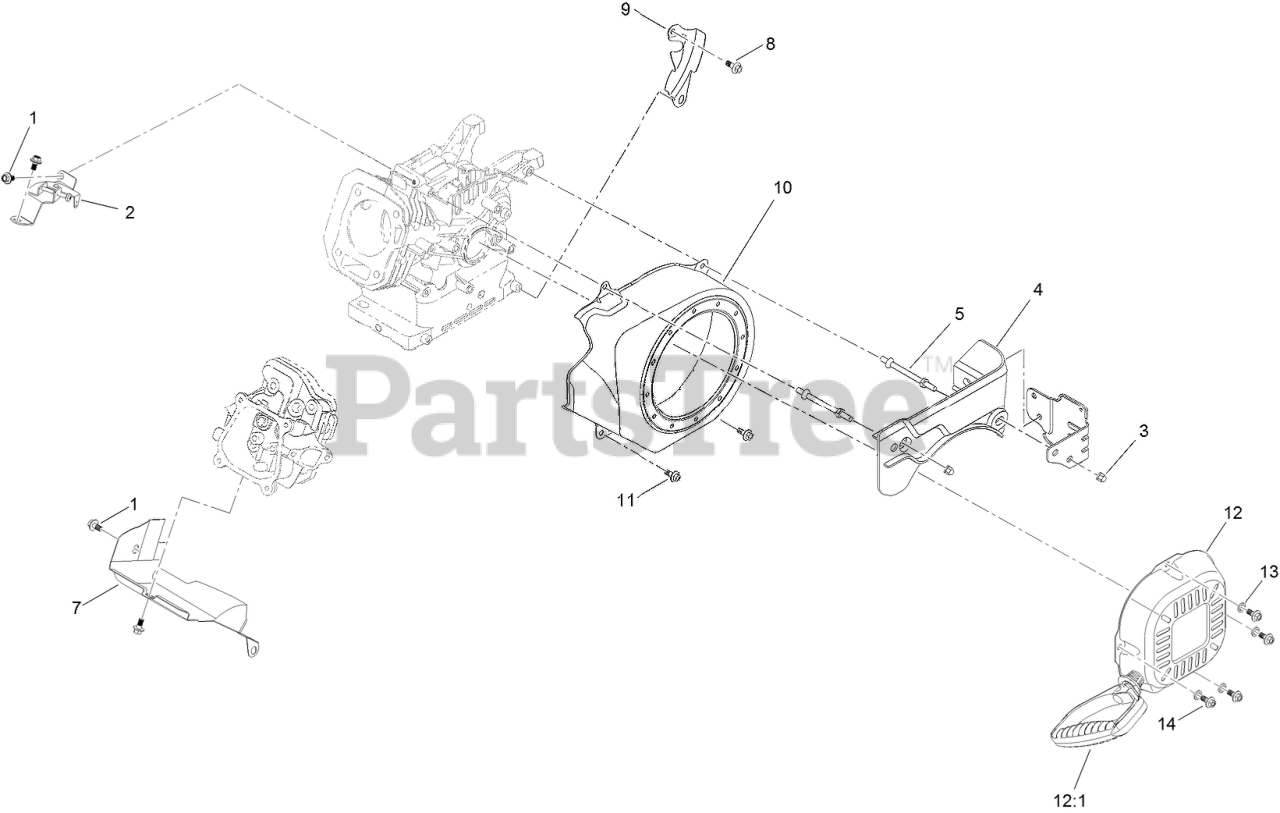

BLOWER HOUSING AND SHROUDS ASSEMBLY Parts Diagram

  • Title

1

Toro 121-0118

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Toro 127-9396

SPEED CONTROL ASM

$14.99

$

Usually ships in 3-6 days

0

3

Toro 127-9383

NUT-ACORN

$3.49

$

In Stock, only 2 left!

0

4

Toro 127-9406

PANEL-FRONT

$18.99

$

Usually ships in 3-6 days

0

5

Toro 127-9110

STUD-MOUNT

$5.99

$

In Stock, only 1 left!

0

7

Toro 127-9096

SHROUD-LOWER

$11.99

$

Usually ships in 3-6 days

0

8

Toro 120-4454

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

9

Toro 127-9121

SHIELD-FLYWHEEL

$10.99

$

Usually ships in 3-6 days

0

10

Toro 127-9401

SHROUD-BLOWER

$70.99

$

Usually ships in 3-6 days

0

11

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 11

0

12

Toro 127-9402

RECOIL STARTER ASM

$66.99

$

In Stock, only 3 left!

0

12:1

Toro 121-0287

HANDLE-RECOIL

$13.99

$

In Stock, only 2 left!

0

13

Toro 127-9380

WASHER-PLAIN

$1.99

$

In Stock, only 1 left!

0

14

Toro 127-9031

SCREW-HHF

$1.49

$

In Stock, only 3 left!

0
