36001 (724 ZXR) - Toro 24" SnowMaster Snow Thrower (SN: 400000000 - 402081999) ROTOR DRIVE ASSEMBLY Parts Diagram

24" SnowMaster Snow Thrower

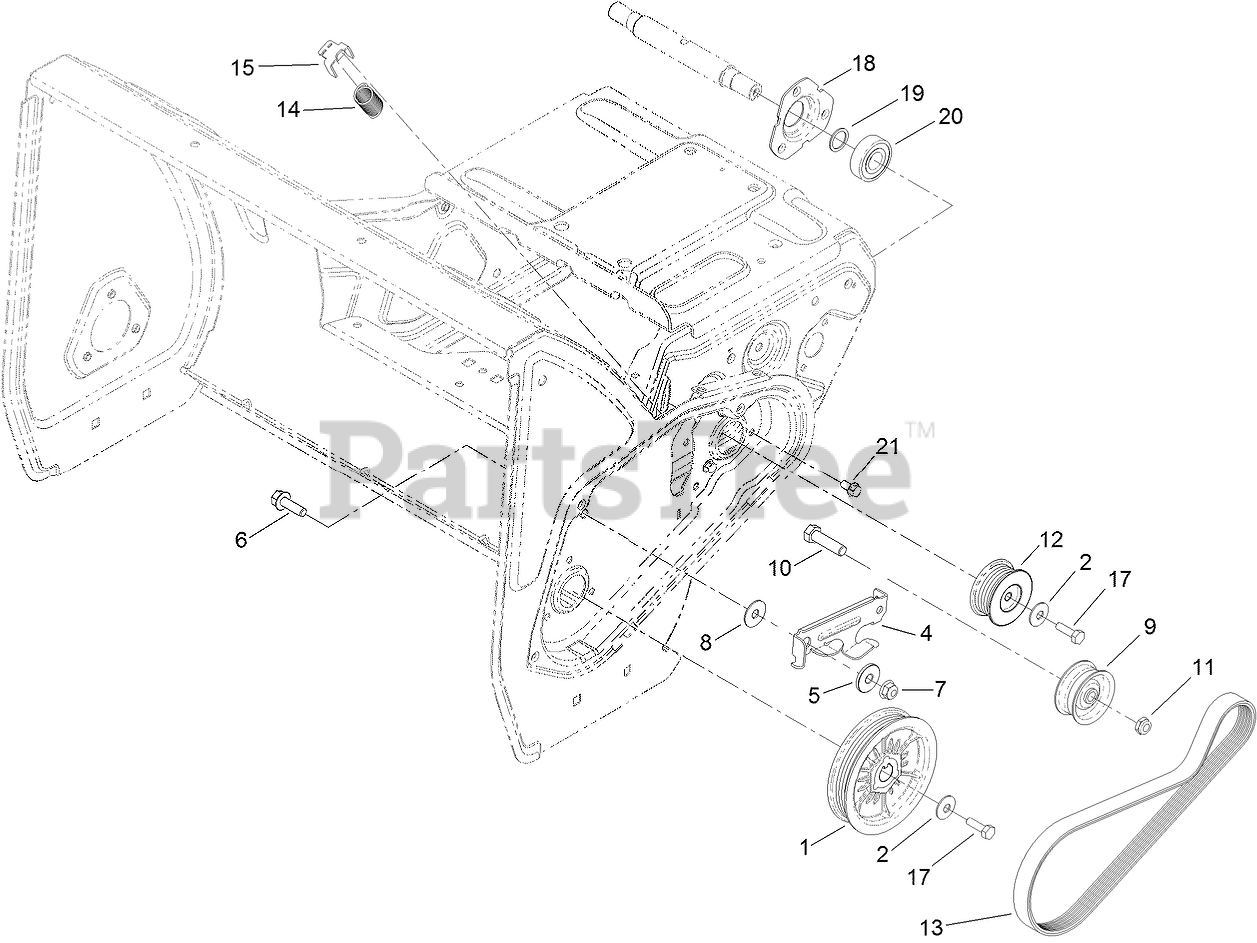

ROTOR DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 130-9574

PULLEY-ROTOR

$77.99

$

In Stock, Qty 5

0

2

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

4

Toro 131-5955

ARM-ENGAGEMENT, ROTOR

$8.99

$

Usually ships in 3-6 days

0

5

Toro 117-7711

BUSHING-IDLER

$2.99

$

Usually ships in 3-6 days

0

6

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 108-4925

WASHER

$1.99

$

In Stock, Qty 5

0

9

Toro 131-5988

PULLEY-IDLER, FLAT

$18.99

$

In Stock, only 4 left!

0

10

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 15

0

11

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

12

Toro 130-9577

PULLEY-JACKSHAFT, ROTOR

$26.99

$

Usually ships in 3-6 days

0

13

Toro 131-5967

BELT-POLY V

$22.99

$

In Stock, Qty 9

0

14

Toro 130-9572

SPRING-EXTENSION

$1.99

$

Usually ships in 3-6 days

0

15

Toro 108-4938

CLIP-SPRING, BRAKE
(Superseded to 136-7133)

$1.99

$

In Stock, Qty 20+

0

17

Toro 9080046

SCREW-HH

$5.49

$

In Stock, Qty 15

0

18

Toro 108-4943

FLANGE-BEARING
(Superseded to 136-7134)

$3.99

$

In Stock, Qty 13

0

19

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

20

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

21

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0
