36001 (724 ZXR) - Toro 24" SnowMaster Snow Thrower (SN: 400000000 - 402081999) CHUTE ASSEMBLY Parts Diagram

24" SnowMaster Snow Thrower

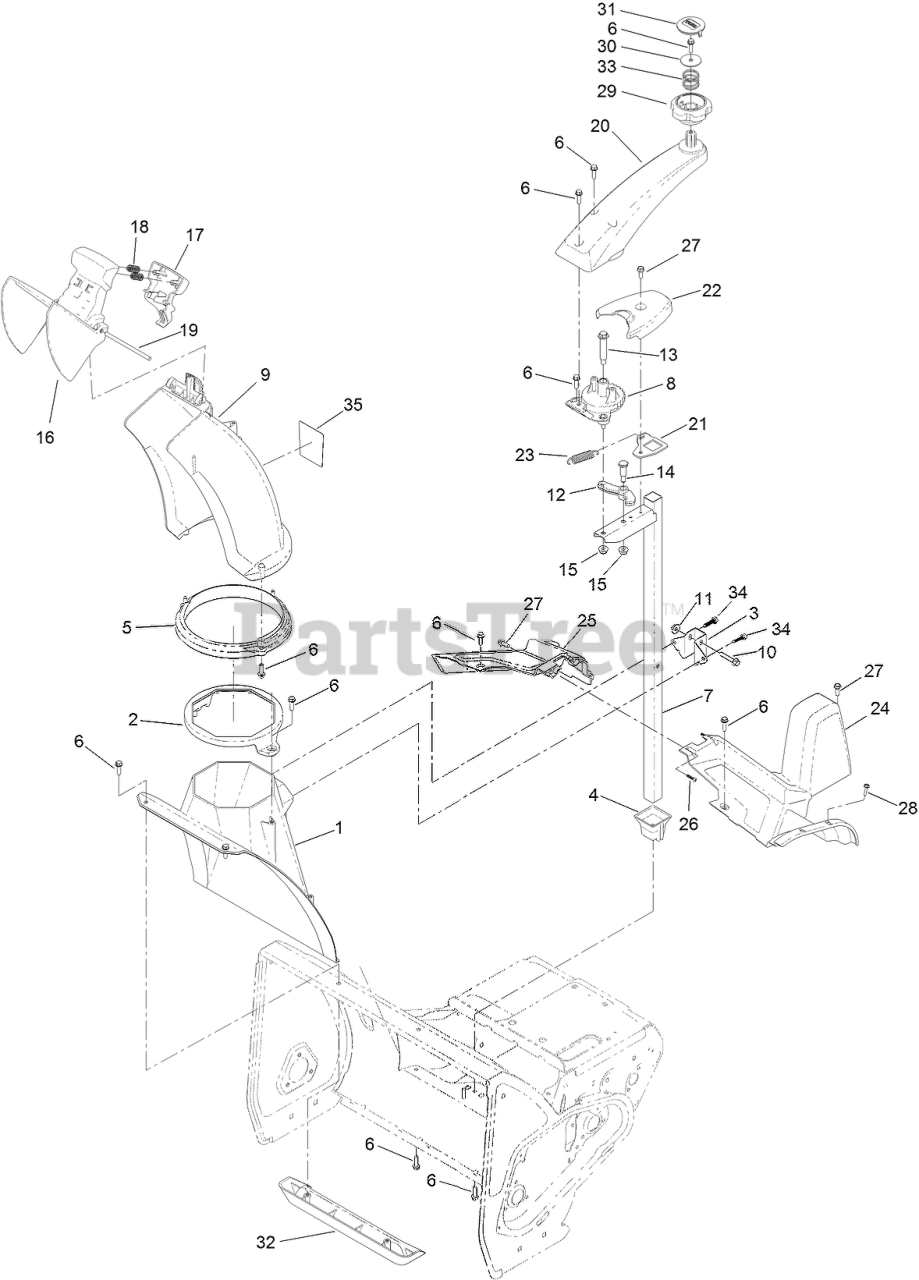

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 130-9587

CHUTE-LOWER

$35.99

$

Usually ships in 3-6 days

0

2

Toro 130-9588

GUIDE-CHUTE

$6.49

$

Usually ships in 3-6 days

0

3

Toro 130-9589-03

BRACKET-POST, SUPPORT (CHUTE)

$20.99

$

Usually ships in 3-6 days

0

4

Toro 130-9590

RETAINER- POST, CHUTE

$2.49

$

Usually ships in 3-6 days

0

5

Toro 130-9596

RING-CHUTE

$8.99

$

Usually ships in 3-6 days

0

6

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

7

Toro 130-9591-03

POST-CHUTE, MANUAL

$51.99

$

Usually ships in 3-6 days

0

8

Toro 131-1798

GEAR-CHUTE, MANUAL

$10.99

$

Usually ships in 3-6 days

0

9

Toro 133-5591

CHUTE-DISCHARGE

$37.99

$

Usually ships in 3-6 days

0

10

Toro 131-5927

SCREW-HHF

$1.49

$

In Stock, Qty 15

0

11

Toro 114-3778

NUT-HEX FLG

$1.49

$

In Stock, Qty 12

0

12

Toro 131-1799

LATCH-CHUTE

$2.99

$

Usually ships in 3-6 days

0

13

Toro 100-9880

BOLT-SHOULDER
(Superseded to 136-7199)

$5.49

$

Usually ships in 3-6 days

0

14

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

16

Toro 131-5916

DEFLECTOR-CHUTE

$21.99

$

Usually ships in 3-6 days

0

17

Toro 117-2314

TRIGGER-DEFLECTOR

$14.99

$

In Stock, only 4 left!

0

18

Toro 110-9360

SPRING-COMPRESSION
(Superseded to 136-7136)

$1.49

$

In Stock, Qty 20+

0

19

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

20

Toro 130-9598

HANDLE-CHUTE, MANUAL

$22.99

$

Usually ships in 3-6 days

0

21

Toro 131-1757

SUPPORT-SPRING

$1.99

$

Usually ships in 3-6 days

0

22

Toro 131-1760

COVER-SPRING

$6.49

$

Usually ships in 3-6 days

0

23

Toro 131-1790

SPRING-EXTENSION

$3.49

$

Usually ships in 3-6 days

0

24

Toro 131-1754

SHROUD-UPPER, LH

$20.99

$

Usually ships in 3-6 days

0

25

Toro 131-1765

SHROUD-LOWER, RH

$13.99

$

Usually ships in 3-6 days

0

26

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

27

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

28

Toro 98-1375

SCREW-HWH

$2.49

$

In Stock, Qty 12

0

29

Toro 131-1774

KNOB-CONTROL, CHUTE

$4.99

$

Usually ships in 3-6 days

0

30

Toro 131-5930

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro 131-1777

INSERT-KNOB

$2.99

$

Usually ships in 3-6 days

0

32

Toro 131-1768

KICKER-HOUSING

$8.49

$

Usually ships in 3-6 days

0

33

Toro 131-5926

SPRING-COMPRESSION

$0.99

$

Usually ships in 3-6 days

0

34

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 6

0

35

$4.49

$

Usually ships in 3-6 days

0
