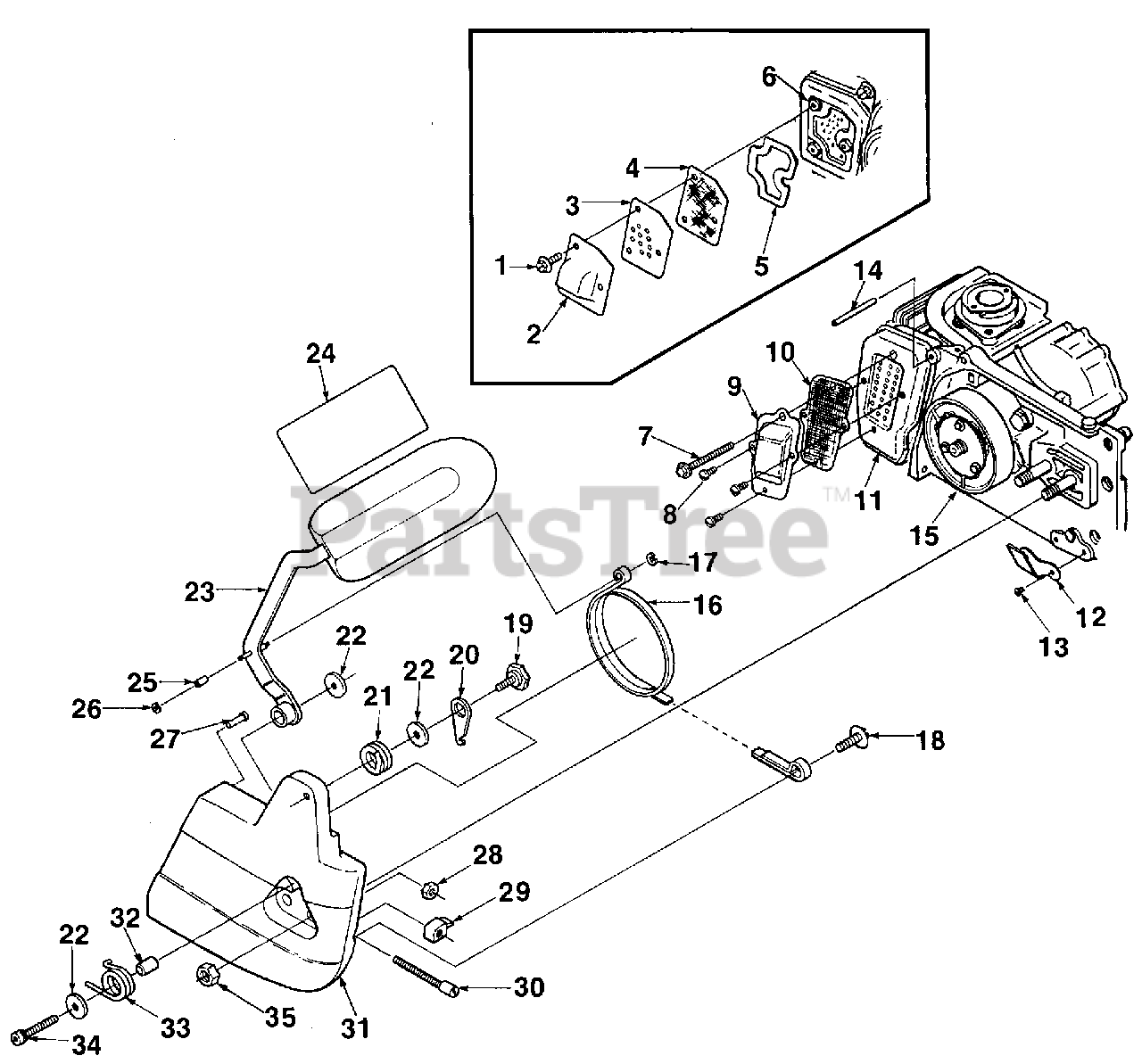

360 (UT-10501) - Homelite Chainsaw Chain Break & Spark Arrestor Parts Diagram

Chainsaw

Chain Break & Spark Arrestor Parts Diagram

  • Title
1

Homelite 88041

SCREW- Hex sems, 8-32 x 3/8 (prior to lot #C-320)

$

$

Not available

2

Homelite 121951

PLATE- Muffler exhaust (prior to lot #C-320)

$

$

Currently unavailable

3

Homelite 12119

BAFFLE (prior to lot#C-320)

$

$

Currently unavailable

4

Homelite D12270B

ARRESTOR- Spark (accessory) prior to lot #C-320)

$

$

Currently unavailable

5

Homelite 12173

GASKET- Exhaust plate (prior to lot #C-320)

$

$

Currently unavailable

6

Homelite A12265

MUFFLER (prior to lot #C-320)

$

$

Currently unavailable

Homelite 12080A

GASKET- Muffler (shown on Fig. 2) (prior to lot #C-320)

$

$

Currently unavailable

7

Homelite 93460

SCREW (After lot #C-320)

$

$

Not available

8

Homelite 82370

SCREW (After lot #C-320)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 947951

PLATE- Exhaust (After lot #C-320

$

$

Currently unavailable

10

Homelite 94797

SCREEN- Spark arrestor (Opt.) (After lot #C-320)

$

$

Not available

11

Homelite 947851

MUFFLER (After lot #C-320)

$

$

Currently unavailable

12

Homelite 70705

STOP- Chain

$

$

Not available

13

Homelite 88042

SCREW- Hex hd. sems 8-32 x 1/2

$

$

Not available

Homelite A93693A

KIT- Chain brake
(Superseded to A93693B)

$

$

Not available

14

Homelite 64870

PIN- Dowel (125 x 1 3/8)

$7.49

$

Usually ships in 3-7 days

0

15

Homelite A936302

DRUM & HUB

$

$

Currently unavailable

16

Homelite A94561

BRAKEBAND

$

$

Currently unavailable

17

Homelite 69599

"E" RING

$

$

Not available

18

Homelite 82258

SCREW- Pan hd. 1/4-20 x 5/8

$

$

Not available

19

Homelite 93773

SCREW- Shoulder

$

$

Not available

20

Homelite 93602A

LEVER- Locking

$

$

Currently unavailable

21

Homelite 93600B

SPRING- Locking lever

$

$

Currently unavailable

22

Homelite 93282

WASHER
(Superseded to 69309A)

$

$

Not available

23

Homelite A97221A

LEVER- Brake w/guard

$

$

Currently unavailable

24

$

$

Not available

25

Homelite 93625

BEARING- Roller

$

$

Not available

26

Homelite 70925

"E" RING

$5.49

$

Usually ships in 3-7 days

0

27

Homelite 70313

SLEEVE- Headed

$

$

Not available

28

Homelite 81206

NUT- Centerlock
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

29

Homelite 651121

PIN- Guide bar adjusting
(Superseded to 651121A)

$

$

Not available

30

Homelite 93962

SCREW- Guide bar adjusting
(Superseded to UP05583)

$20.99

$

Usually ships in 3-7 days

0

31

Homelite A04241

COVER- Drivecase

$

$

Currently unavailable

32

Homelite 93296

SLEEVE- Lever

$4.49

$

Usually ships in 3-7 days

0

33

Homelite 93603

SPRING- Brake lever

$

$

Not available

34

Homelite 804281

SCREW- Soc cap hd.
(Superseded to UP06828)

$

$

Not available

35

Homelite 81196

NUT- Hex 5/16-18
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0
