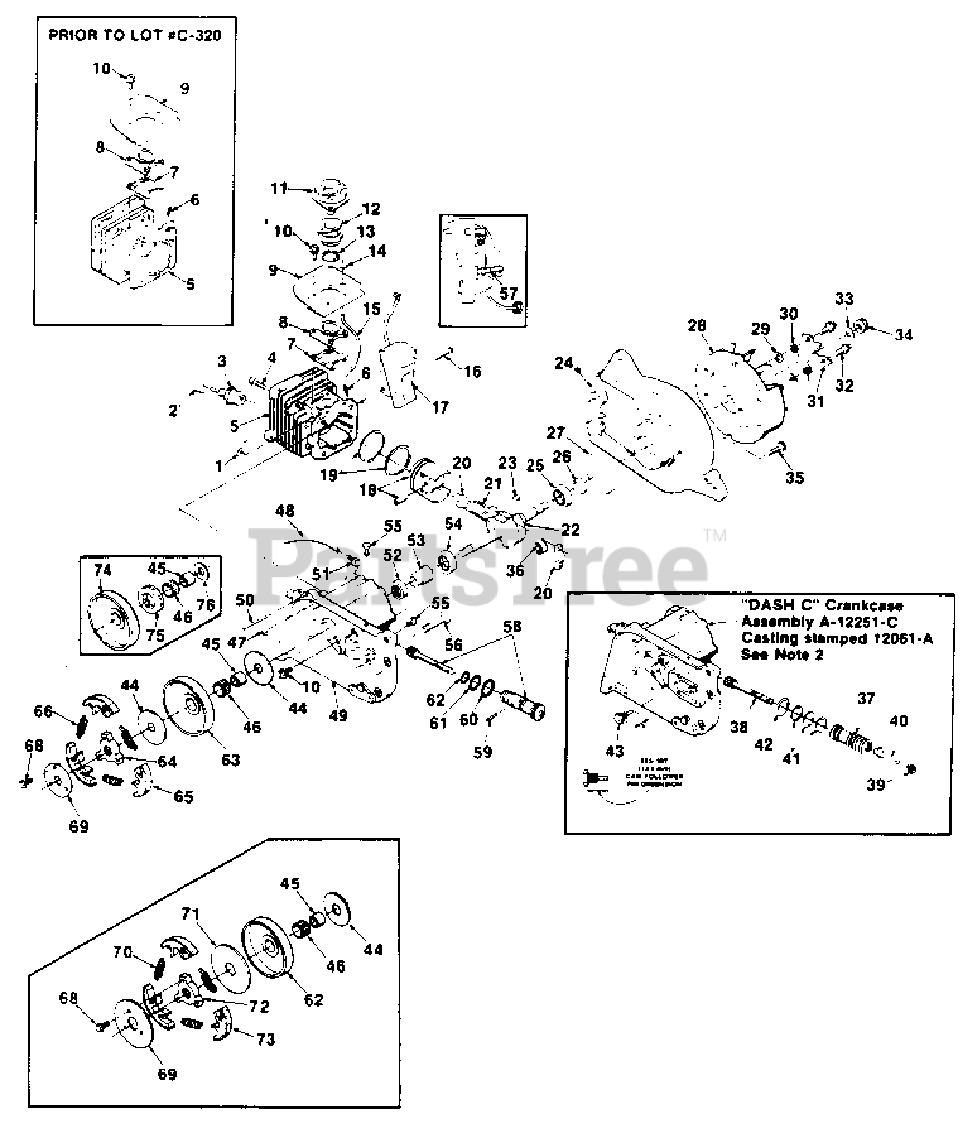

360 (UT-10469) - Homelite Chainsaw Engine Internals Parts Diagram

Chainsaw

Engine Internals Parts Diagram

  • Title

1

Homelite 12021

WASHER

$

$

Not available

2

Homelite 12191

GROMMET- Spark plug

$

$

Not available

3

Homelite 63547S

SPARK PLUG (Champ CJ6)

$9.99

$

Usually ships in 3-7 days

0

4

Homelite 82262

SCREW- Soc. hd. cap #10-24 x 7/8

$

$

Not available

5

Homelite A70716A

CYLINDER (Prior to lot #C-320)

$

$

Currently unavailable

Homelite A94781

CYLINDER (After lot #C-320)

$

$

Currently unavailable

6

Homelite 69833

FITTING

$

$

Not available

7

Homelite 70714

GASKET- Intake adapter

$

$

Not available

8

Homelite 70715

MANIFOLD- Intake

$

$

Not available

9

Homelite 121611B

DEFLECTOR- Air (Intake)

$

$

Currently unavailable

10

Homelite 88042

SCREW- Hex hd. w/washer 8-32 x 1/2

$

$

Not available

11

Homelite A70246B

FLANGE- Carburetor connector

$

$

Currently unavailable

12

Homelite 12048C

CONNECTOR- Carburetor

$

$

Currently unavailable

13

Homelite 12291

SPRING- Garter
(Superseded to UP06644)

$33.99

$

Usually ships in 3-7 days

0

14

Homelite 62740

GROMMET

$

$

Not available

15

Homelite 9311222

LINE- Pulse 5 1/2"

$

$

Not available

16

Homelite 88045

SCREW- Hex sems 8-32 x 1 1/4

$

$

Not available

17

Homelite 12669A

MODULE & CORE

$

$

Currently unavailable

18

Homelite A12257A

PISTON & PIN

$

$

Currently unavailable

19

Homelite 12040

PISTON RING

$

$

Not available

20

Homelite A120681

ROD- Connecting

$

$

Currently unavailable

21

Homelite 69919

SCREW- Soc. hd. 80-32 x 9/16

$

$

Not available

22

Homelite 120371

CRANKSHAFT

$

$

Not available

23

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

24

Homelite A12204A

PLATE- Back

$

$

Currently unavailable

25

Homelite 63867

BEARING- Roller

$

$

Not available

26

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

27

Homelite 58785

O" RING

$

$

Not available

28

Homelite 12101A

ROTOR

$

$

Currently unavailable

29

Homelite 83046

WASHER- Lock #10

$

$

Not available

30

Homelite 12055

SPRING- Starter pawl

$

$

Not available

31

Homelite 12056

PAWL- Starter

$

$

Not available

32

Homelite 65109

STUD- Starter pawl

$

$

Not available

33

Homelite 95479A

WASHER- 3/8"

$

$

Not available

34

Homelite 81255

NUT- 3/8 - 24

$

$

Not available

35

Homelite 88051

SCREW- Hex sems 10-24 x 3/4

$

$

Not available

36

Homelite A12913

ROLLERS- Needle (Set of 25)

$

$

Not available

37

Homelite A12201A

PUMP- Automatic Oil

$

$

Currently unavailable

38

Homelite A12202

PLUNGER- Oil pump

$

$

Currently unavailable

39

Homelite 88041

SCREW- Hex sems 8-32 x 3/8

$

$

Not available

40

Homelite 12141

LEVER- Oil Adjustment

$

$

Currently unavailable

41

Homelite 12095

"O" RING

$

$

Not available

42

Homelite 12155

"O" RING

$

$

Not available

43

Homelite A12144

PIN & PLUG

$

$

Currently unavailable

44

Homelite 63860

WASHER- Thrust

$

$

Not available

45

Homelite 65985B

RACE- Inner

$

$

Not available

46

Homelite 64124

BEARING- Needle
(Superseded to UP06815)

$

$

Not available

47

Homelite 81208

NUT- Centerlock #10-24

$

$

Not available

48

Homelite 9311219

TUBING-Rubber (0il) 4 3/4"

$

$

Not available

49

Homelite A12251E

CRANKCASE

$451.99

$

Usually ships in 3-7 days

0

50

PIN- Dowel (.125 x 1.375) Install in crankcase for chain brake only Pin #14 supplied loose in SL chain brake kit and 360 service crankcase assy,

Note: not available separately. For chain brake mounting only, press pin into hole provided in crankcase boss until there is .375 (.095 MM) remaining for engagement of pin in chainbrake drivecase cover, pin is required only for chainbrake.

$

$

Not available

51

Homelite 50558

FITTING- Oil line

$

$

Not available

52

Homelite 70729

SEAL- (Double lips)

$

$

Not available

53

Homelite 12071

WORM- Gear

$

$

Not available

54

Homelite 63867

BEARING- Roller

$

$

Not available

55

Homelite 12096

BUMPER

$

$

Not available

56

Homelite 58753

BOLT- Guide bar 5/16"

$

$

Not available

57

Homelite 12298

CABLE TIE- Module lead

$

$

Not available

58

Homelite A70962

PUMP- Automatic Oil

$

$

Currently unavailable

59

Homelite 70920

PIN- Pump

$

$

Not available

60

Homelite 70921

"O" RING

$

$

Not available

61

Homelite 12853

"O" RING

$

$

Not available

62

Homelite 12095

"O" RING

$

$

Not available

63

Homelite A95465

SPROCKET & DRUM 7T, 3/8 P

$

$

Not available

Homelite A93867A

KIT- Clutch conversion

$

$

Currently unavailable

64

Homelite 96448

SPIDER Clutch (After lot #C-320)

$25.99

$

Usually ships in 3-7 days

0

65

Homelite A96447A

SHOE- Clutch (After lot #C-320)

$

$

Currently unavailable

66

Homelite 96451

SPRING- Extension (After lot #C-320)
(Superseded to UP07448)

$

$

Not available

Homelite 96449

COVER- Clutch (After lot #C-320)

$

$

Not available

68

Homelite 88041

SCREW- Hex sems 8-32 x .375

$

$

Not available

69

Homelite 93628

COVER- Clutch (Prior to lot #C-320)

$

$

Not available

70

Homelite 93638A

SPRING- Clutch (Prior to lot #C-320)
(Superseded to UP06462)

$

$

Not available

71

Homelite 93643

WASHER- Thrust (Prior to lot #C-320)

$

$

Not available

72

Homelite 93636

SPIDER- Clutch (Prior to lot #C-320)

$

$

Currently unavailable

73

Homelite A93632B

SHOE- Clutch (Prior to Lot #C-320)
(Superseded to UP06461)

$

$

Not available

74

Homelite A94302

DRUM & HUB

$

$

Currently unavailable

75

Homelite 95058A

SPROCKET & RIM 7T 3/8 P (Primary source)

$

$

Currently unavailable

76

Homelite 588331

WASHER- Thrust (Inner) (Prior to Lot #C-320)
(Superseded to 556601)

$

$

Not available
