36 R - Husqvarna String Trimmer (1981-11) Air Filter/Carburetor Parts Diagram

String Trimmer

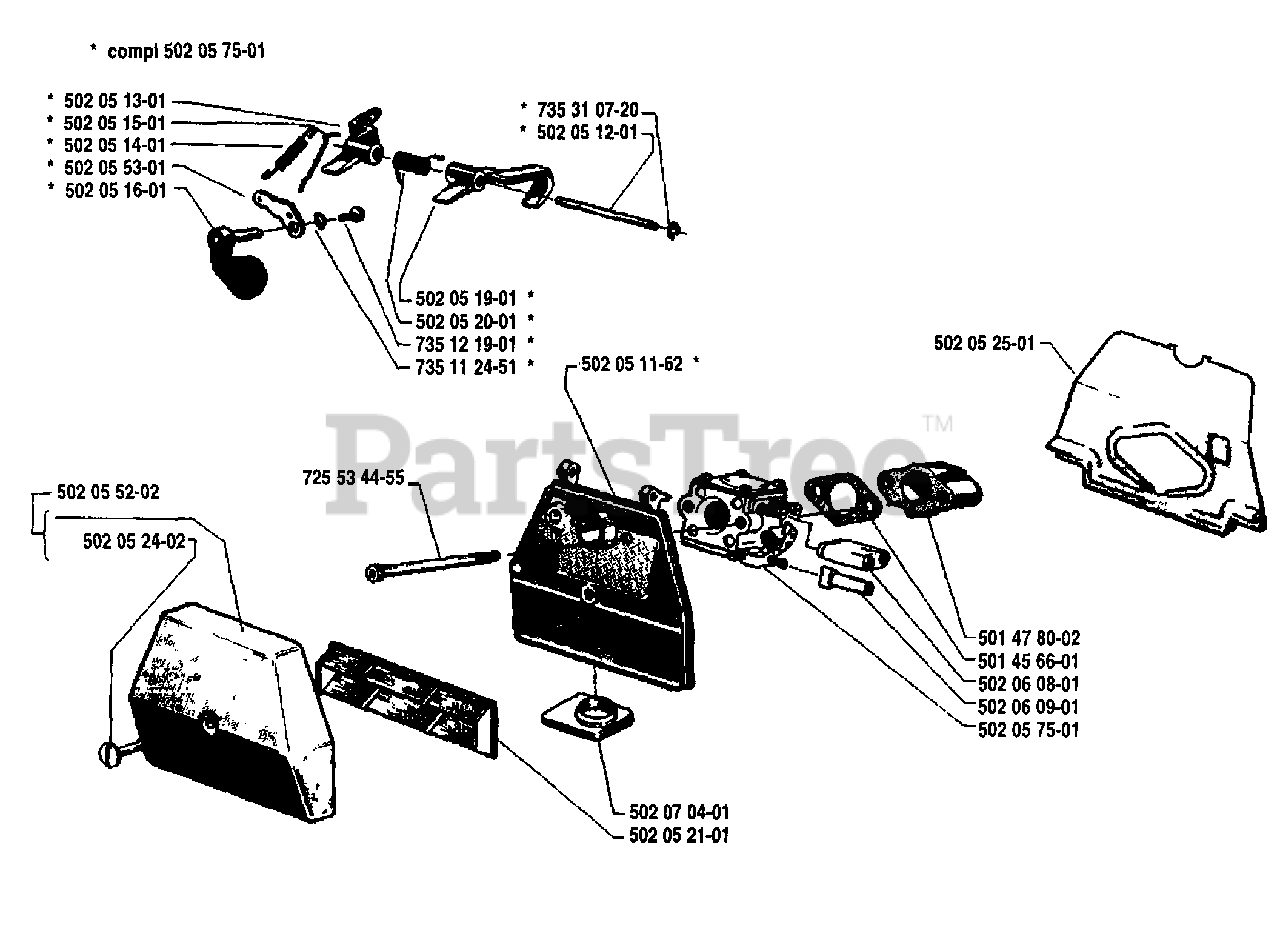

Air Filter/Carburetor Parts Diagram

  • Title

502057501

Husqvarna 502057501

CARBURETOR NLA

$

$

Not available

502051301

Husqvarna 502051301

LEVER

$

$

Not available

502051501

Husqvarna 502051501

SHAFT

$

$

Not available

502051401

Husqvarna 502051401

SPRING

$

$

Not available

502055301

Husqvarna 502055301

LEVER

$

$

Not available

502051601

Husqvarna 502051601

CHOKE CONTROL

$

$

Not available

502051901

Husqvarna 502051901

LEVER

$

$

Not available

502052001

Husqvarna 502052001

SPRING

$

$

Not available

735121901

Husqvarna 735121901

$

$

Currently unavailable

735112451

Husqvarna 735112451

SPRING WASHER 3.2X6

$

$

Not available

502055202

Husqvarna 502055202

COVER

$

$

Not available

725534455

Husqvarna 725534455

SCREW MC6S 5X65

$

$

Not available

735310720

Husqvarna 735310720

E-RING 3.2

$3.49

$

Usually ships in 3-10 days

0

502051201

Husqvarna 502051201

SHAFT

$

$

Not available

502051162

Husqvarna 502051162

AIR FILTER CONN NLA

$

$

Not available

502052501

Husqvarna 502052501

DUST SHIELD, CARB 140R

$

$

Not available

502052402

Husqvarna 502052402

SCREW

$

$

Not available

502070401

Husqvarna 502070401

RUBBER SEAL

$

$

Not available

502052101

Husqvarna 502052101

USE 502 052103 AIR FILTER

$

$

Not available

501478002

Husqvarna 501478002

SPACER

$

$

Not available

501456601

Husqvarna 501456601

GASKET
(Superseded to 501456602)

$

$

Not available

502060801

Husqvarna 502060801

SLEEVE

$

$

Not available

502060901

Husqvarna 502060901

SLEEVE

$

$

Not available

502057501

Husqvarna 502057501

CARBURETOR NLA

$

$

Not available
