36 - Husqvarna Chainsaw (SN: 19941800001 & Above) STARTER Parts Diagram

Chainsaw

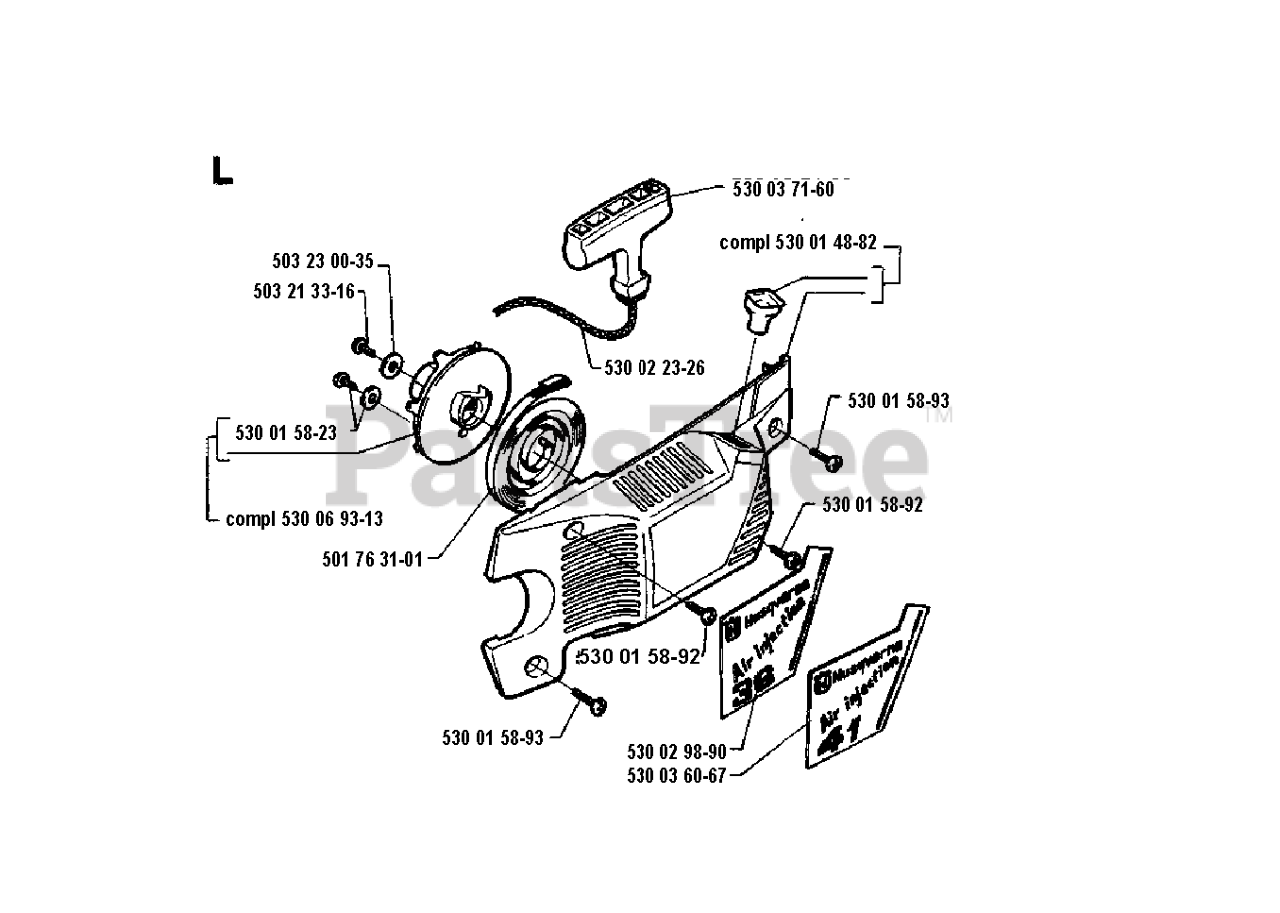

STARTER Parts Diagram

  • Title
530 01 58-92

Husqvarna 530015892

SCREW,STRTR CVR 36/41

$6.49

$

In Stock, Qty 20+

0

530 02 98-90

Husqvarna 530029890

DECAL 36 AIR INJ

$

$

Not available

530 01 58-93

$6.49

$

In Stock, Qty 20+

0

530 03 71-60

Husqvarna 530037160

STARTER HANDLE
(Superseded to 530150318)

$6.49

$

In Stock, Qty 18

0

530 01 48-82

Husqvarna 530014882

FAN HOUSING
(Superseded to 530049811)

$

$

Not available

530 03 60-67

Husqvarna 530036067

DECAL,PLSTIC STRTR HV41 NLA

$

$

Not available

501 76 31-01

Husqvarna 501763101

RECOIL SPRING

$17.99

$

In Stock, only 3 left!

0

530 06 93-13

Husqvarna 530069313

PULLEY 36/41

$

$

Not available

530 02 23-26

Husqvarna 530022326

STARTER ROPE 36/41
(Superseded to 530069232)

$7.49

$

In Stock, Qty 19

0

530 01 58-23

Husqvarna 530015823

SCREW-6-19X9/32 PAN/SEM
(Superseded to 530016080)

$6.49

$

In Stock, only 1 left!

0

503 21 33-16

Husqvarna 503213316

SCREW
(Superseded to 503214972)

$10.99

$

In Stock, Qty 20+

0

503 23 00-35

Husqvarna 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 14

0
