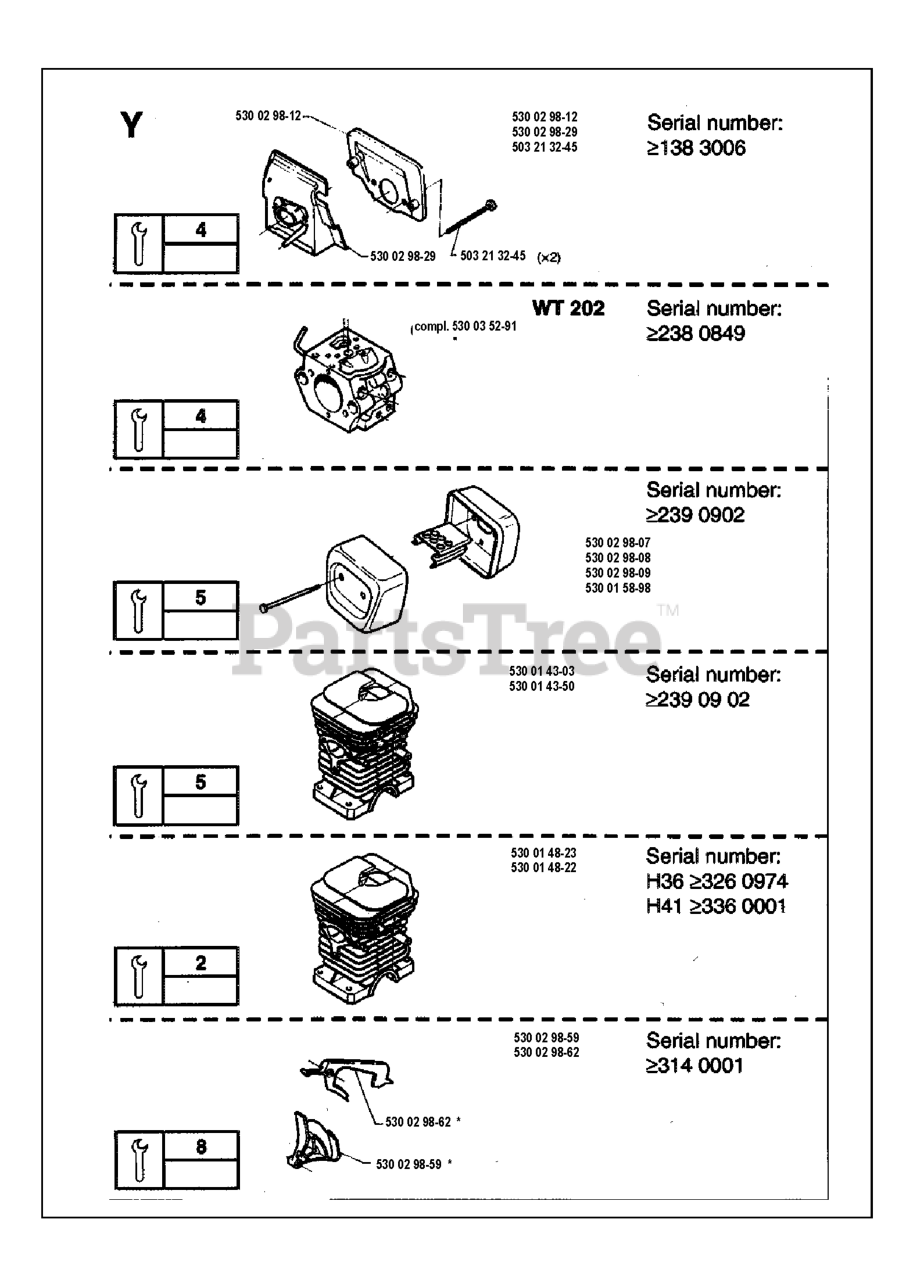

36 - Husqvarna Chainsaw (SN: 19941800001 & Above) SERVICE UPDATES 2 Parts Diagram

Chainsaw

SERVICE UPDATES 2 Parts Diagram

  • Title

530 01 58-98

Husqvarna 530015898

MUFFLER BOLT(X2) 36/41
(Superseded to 530016044)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 239 0902

$6.49

$

In Stock, Qty 20+

0

503 21 32-45

Husqvarna 503213245

SCREW

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 138 3006

$

$

Not available

530 02 98-12

Husqvarna 530029812

AIR FILTER HLDR 36/41
(Superseded to 530036582)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 138 3006

$

$

Not available

530 01 48-22

Husqvarna 530014822

CYLINDER 41CC
(Superseded to 530069941)

Note: SERIAL NUMBER: H36 GREATER THAN OR EQUAL TO 326 0974 H41 GREATER THAN OR EQUAL TO 336 0001

$

$

Not available

530 01 43-50

Husqvarna 530014350

CYL ASS'Y 40MM HV41
(Superseded to 530069941)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 239 09 02

$

$

Not available

530 02 98-29

Husqvarna 530029829

HEAT SHIELD,PLSTC 36/41
(Superseded to 530037465)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 138 3006

$

$

Not available

530 02 98-08

Husqvarna 530029808

MUFFLER,FRONT HALF 36/41
(Superseded to 530037254)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 239 0902

$12.99

$

In Stock, only 4 left!

0

530 01 48-23

Husqvarna 530014823

CYLINDER 36CC
(Superseded to 530069940)

Note: SERIAL NUMBER: H36 GREATER THAN OR EQUAL TO 326 0974 H41 GREATER THAN OR EQUAL TO 336 0001

$

$

Not available

530 02 98-59

Husqvarna 530029859

TRIGGER 36/41
(Superseded to 530069587)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 314 0001

$

$

Not available

530 02 98-62

Husqvarna 530029862

LOCK,TRIGGER 36/41
(Superseded to 530069587)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 314 0001

$

$

Not available

530 03 52-91

Husqvarna 530035291

CARB COMPL (WT202) 36/41
(Superseded to 530071987)

Note: WT 202 SERIAL NUMBER: GREATER THAN OR EQUAL TO 238 0849

$113.99

$

Usually ships in 3-10 days

0

530 02 98-07

Husqvarna 530029807

MUFFLER,CYL SIDE 36/41
(Superseded to 530037251)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 239 0902

$11.99

$

Usually ships in 3-10 days

0

530 02 98-09

Husqvarna 530029809

BAFFLE,MUFFLER 36/41
(Superseded to 530037246)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 239 0902

$6.99

$

In Stock, Qty 5

0

530 01 43-03

Husqvarna 530014303

CYL ASS'Y 38MM HV36
(Superseded to 530069940)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 239 09 02

$

$

Not available

503 21 32-45

Husqvarna 503213245

SCREW

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 138 3006

$

$

Not available
