36 - Husqvarna Chainsaw (SN: 19912200001 - 19941800000) CARBURETOR DETAILS Parts Diagram

Chainsaw

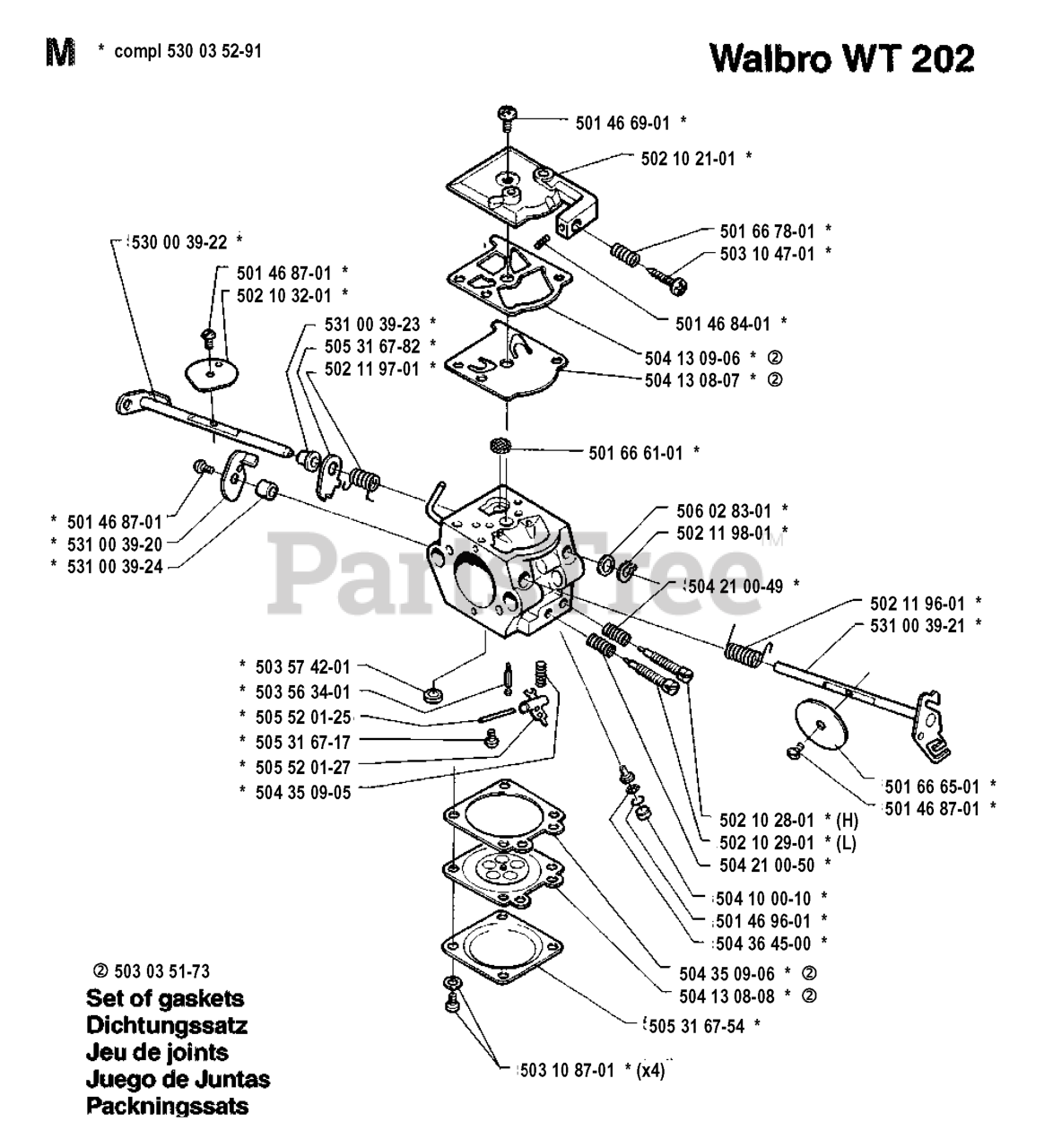

CARBURETOR DETAILS Parts Diagram

  • Title

506 02 83-01

Husqvarna 506028301

WASHER

$13.99

$

Usually ships in 3-10 days

0

501 46 96-01

Husqvarna 501469601

RETAINING RING
(Superseded to 501469502)

$

$

Not available

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

531 00 39-21

Husqvarna 531003921

SHAFT ASSY-THROTTLE

$

$

Not available

501 46 84-01

Husqvarna 501468401

SPRING

$7.99

$

In Stock, only 1 left!

0

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

504 13 08-08

Husqvarna 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

Note: 503 03 51-73 SET OF GASKETS

$51.99

$

In Stock, Qty 10

0

504 35 09-06

Husqvarna 504350906

GASKET

Note: 503 03 51-73 SET OF GASKETS

$11.99

$

In Stock, Qty 7

0

530 00 39-22

Husqvarna 530003922

$

$

Currently unavailable

501 46 69-01

Husqvarna 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

501 66 65-01

Husqvarna 501666501

THROTTLE FLAP

$

$

Not available

501 46 87-01

Husqvarna 501468701

SCREW

$7.99

$

Usually ships in 3-10 days

0

504 21 00-50

Husqvarna 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

502 10 28-01

Husqvarna 502102801

HI-SPEED NEEDLE

Note: H

$

$

Not available

505 52 01-27

Husqvarna 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

504 35 09-05

Husqvarna 504350905

Spring

$

$

Not available

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

505 31 67-17

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

502 11 96-01

Husqvarna 502119601

SPRING

$

$

Not available

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, Qty 5

0

531 00 39-20

Husqvarna 531003920

THROTTLE LEVER

$

$

Not available

502 11 97-01

Husqvarna 502119701

SPRING

$1.49

$

Usually ships in 3-10 days

0

502 10 29-01

Husqvarna 502102901

LO-SPEED NEEDLE

Note: L

$7.99

$

Usually ships in 3-10 days

0

502 11 98-01

Husqvarna 502119801

CLIPS

$9.49

$

Usually ships in 3-10 days

0

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$7.99

$

In Stock, only 4 left!

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

504 13 09-06

Husqvarna 504130906

GASKET

Note: 503 03 51-73 SET OF GASKETS

$11.99

$

In Stock, only 3 left!

0

504 21 00-49

Husqvarna 504210049

SPRING, H-NEEDLE

$13.99

$

In Stock, only 4 left!

0

504 13 08-07

Husqvarna 504130807

PUMP DIAPHRAGM

Note: 503 03 51-73 SET OF GASKETS

$31.99

$

In Stock, Qty 6

0

502 10 32-01

Husqvarna 502103201

Choke Flap

$

$

Not available

503 10 47-01

Husqvarna 503104701

SCREW

$11.99

$

In Stock, only 1 left!

0

504 10 00-10

Husqvarna 504100010

WELCH PLUG
(Superseded to 530035225)

$3.99

$

Usually ships in 3-10 days

0

502 10 21-01

Husqvarna 502102101

Pump Cover

$

$

Not available

531 00 39-23

Husqvarna 531003923

BUSHING

$

$

Not available

505 31 67-54

Husqvarna 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

504 36 45-00

Husqvarna 504364500

FILTER

$0.99

$

In Stock, only 1 left!

0

503035173

Husqvarna 530035173

GASKET SET (WT202)
(Superseded to 530069844)

$20.99

$

In Stock, only 3 left!

0

531 00 39-24

Husqvarna 531003924

SPACER

$

$

Not available

530 03 52-91

Husqvarna 530035291

CARB COMPL (WT202) 36/41
(Superseded to 530071987)

$113.99

$

In Stock, only 1 left!

0

505 31 67-82

Husqvarna 505316782

STARTER LEVER

$2.49

$

Usually ships in 3-10 days

0
