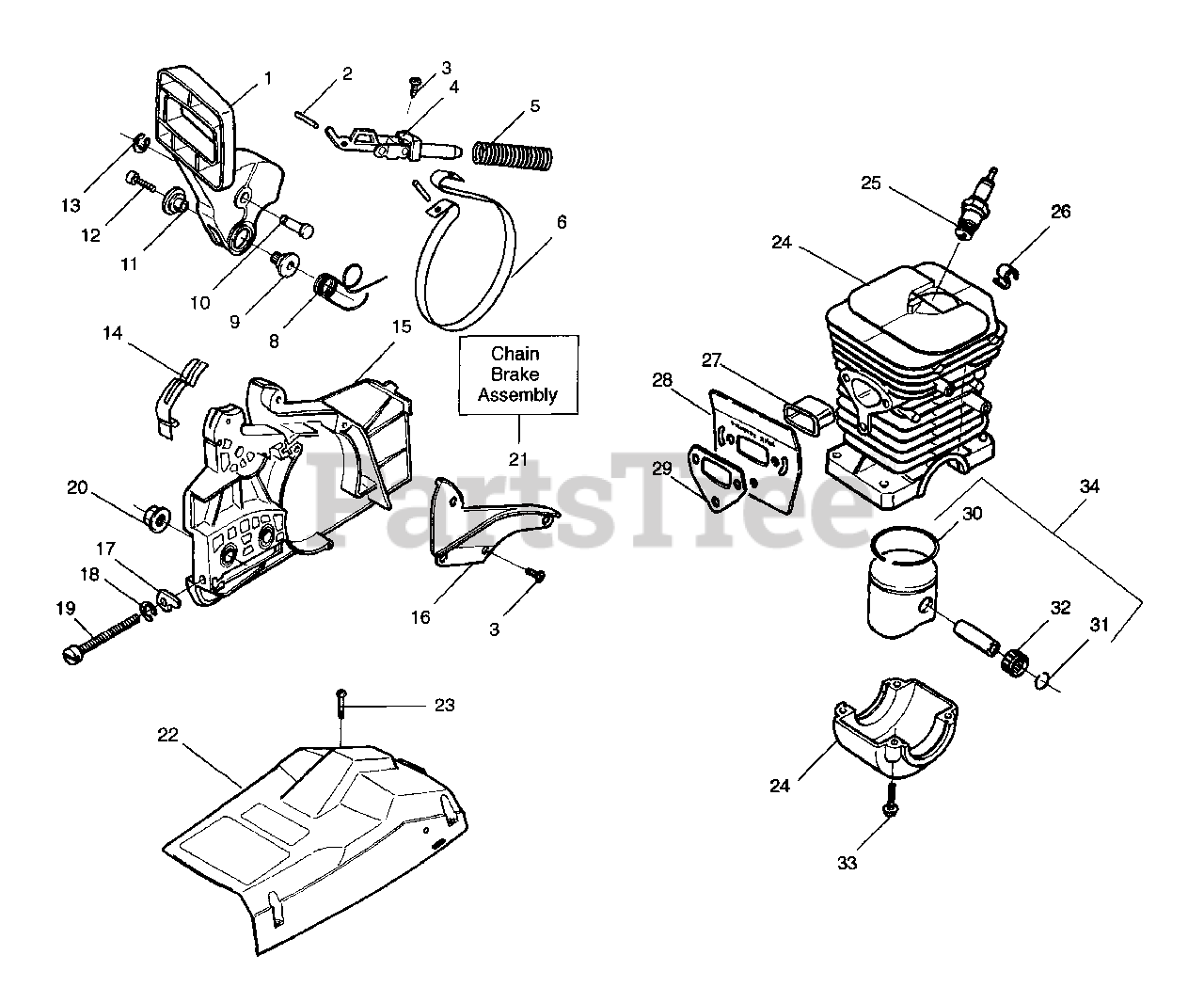

36 - Husqvarna Chainsaw (1997-07) Chain Brake Assembly, Top Cover, Piston/Cylinder Parts Diagram

Chainsaw

Chain Brake Assembly, Top Cover, Piston/Cylinder Parts Diagram

  • Title

1

Husqvarna 530014305

Handguard
(Superseded to 530071348)

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 720123300

Straight Pin

$3.49

$

In Stock, only 4 left!

0

3

Husqvarna 530015911

Screw
(Superseded to 574780301)

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 530014356

Front and Rear Link Assembly

$

$

Not available

5

Husqvarna 501875401

Chain Brake Spring

$

$

Not available

6

Husqvarna 530029874

Brake Band
(Superseded to 545137401)

$7.49

$

In Stock, Qty 7

0

8

Husqvarna 530015910

Handguard Spring

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 501768101

Left Pivot Sleeve

$

$

Not available

10

Husqvarna 530029879

Pivot Pin

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 501768001

Right Pivot Sleeve

$9.99

$

In Stock, Qty 6

0

12

Husqvarna 530015914

Screw

$3.49

$

In Stock, Qty 8

0

13

Husqvarna 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 530029878

Position Spring

$6.49

$

In Stock, Qty 8

0

15

Husqvarna 530037547

Clutch Cover
(Superseded to 530053173)

$

$

Not available

16

Husqvarna 530037546

Chain Brake Cover
(Superseded to 530053173)

$

$

Not available

17

Husqvarna 530016109

Bar Adjusting Pin
(Superseded to 530016180)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 530016110

Screw

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 530015917

Nut

$3.99

$

In Stock, Qty 12

0

21

Husqvarna 530014910

Chain Brake Assembly
(Superseded to 530053173)

Note: (Includes 1 thru 20)

$

$

Not available

22

Husqvarna 530047609

Cylinder Shield Ass' y.

$

$

Not available

23

Husqvarna 530016154

Screw

$3.99

$

In Stock, Qty 18

0

24

Cylinder Kit

$

$

Not available

Husqvarna 530069417

Cylinder (36 CC)
(Superseded to 530069940)

Note: Used on models 36

$

$

Not available

Husqvarna 530069414

Cylinder (40 CC)
(Superseded to 530069941)

Note: Used on models 41

$

$

Not available

25

Husqvarna 952030150

Spark Plug (RCJ-7Y)
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 530015696

Clip

$

$

Not available

27

Husqvarna 530037652

Heat Insulator

$

$

Not available

28

Husqvarna 530037640

Muffler-Plate

$

$

Not available

29

Husqvarna 530019205

Muffler Gasket

$6.49

$

In Stock, only 3 left!

0

30

Husqvarna 530029805

Piston Ring

$6.49

$

In Stock, Qty 17

0

31

Husqvarna 530015697

Piston Pin Retainer

$6.49

$

In Stock, Qty 6

0

32

Husqvarna 530032117

Piston Pin Bearing

$

$

Not available

33

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

34

Piston Ring

Note: (Includes 30 - 32)

$

$

Not available

Husqvarna 530069317

Piston Comp. HV36
(Superseded to 530069944)

Note: Used on models 36

$

$

Not available

Husqvarna 530069454

Kit-Piston

Note: Used on models 41

$

$

Not available

Husqvarna 530031135

Scrench
(Superseded to 587417201)

Note: Not Shown

$9.49

$

In Stock, only 2 left!

0

Husqvarna 101869562

Operator Manual

Note: Not Shown

$8.99

$

Usually ships in 3-10 days

0

Husqvarna 530031136

Worm Gear Puller

Note: Not Shown

$

$

Not available

Husqvarna 530031112

Clutch Ass'y. Tool

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0

Husqvarna 530029887

Kickback Decal

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Husqvarna 530037912

Scabbard
(Superseded to 596703701)

Note: Not Shown

$7.99

$

In Stock, only 1 left!

0
