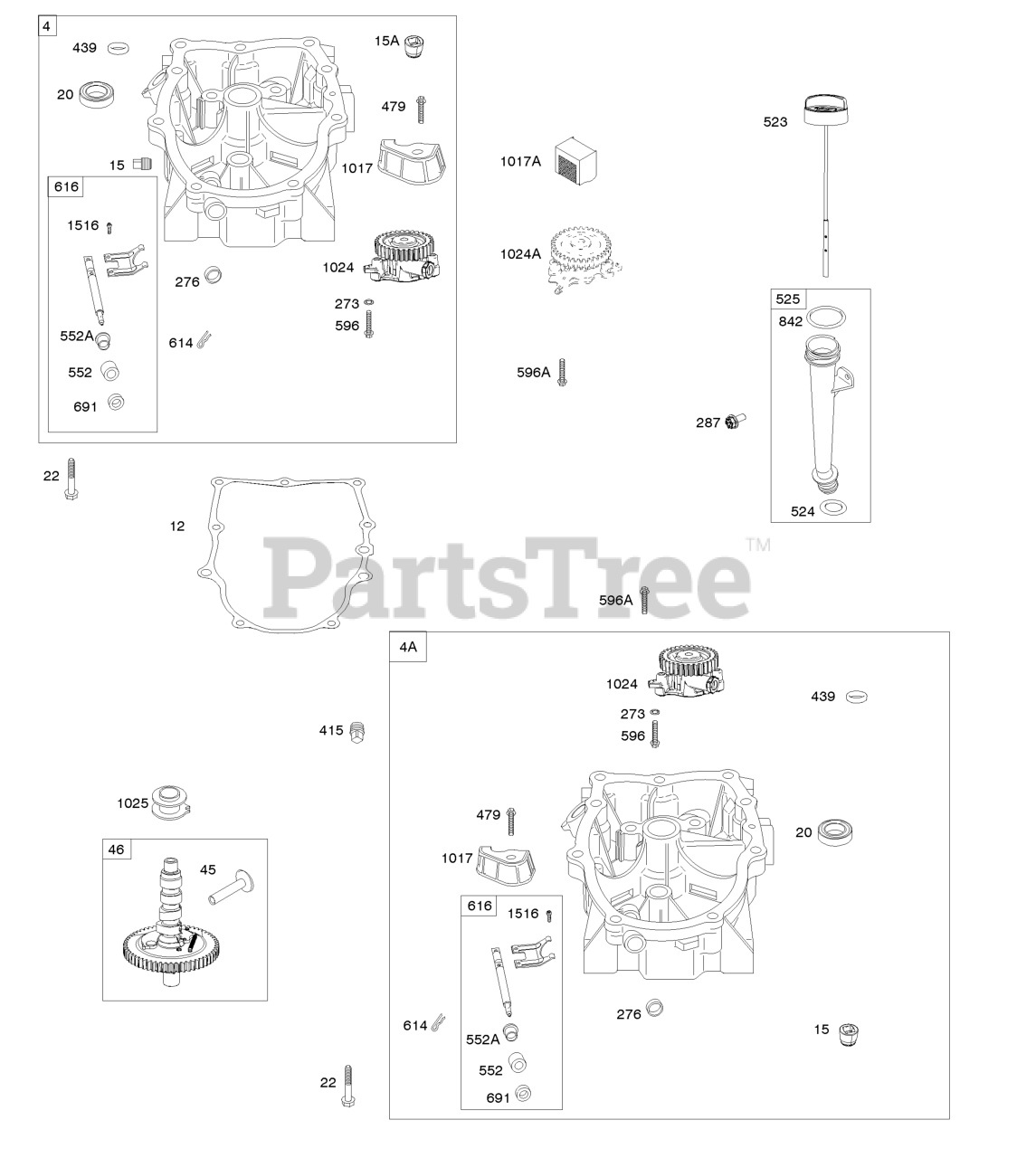

359770-0002-E1 - Briggs & Stratton Vertical Engine Engine Sumps, Camshaft, Dipstick Tube Parts Diagram

Vertical Engine

Engine Sumps, Camshaft, Dipstick Tube Parts Diagram

  • Title

4A

Briggs & Stratton 846624

Sump-Engine

$195.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 845254

Gasket-Crankcase

Note: (Steel Core Gasket)

$45.99

$

In Stock, Qty 12

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

15A

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

45

Briggs & Stratton 843379

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 845649

Camshaft

$184.99

$

Usually ships in 2-12 days

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 690704

Washer-Sealing

Note: (Governor Shaft)

$5.99

$

In Stock, only 1 left!

0

287

Briggs & Stratton 807084

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 7

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

479

Briggs & Stratton 843961

Screw

Note: (Oil Pump Screen)

$4.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 692101

Dipstick

$23.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 692053

Seal-Dipstick Tube

$6.99

$

In Stock, Qty 9

0

525

Briggs & Stratton 692093

Tube-Dipstick

$20.99

$

In Stock, Qty 8

0

552

Briggs & Stratton 690701

Bushing-Governor Crank

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 806686

Bushing-Governor Crank

$8.49

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 807389

Screw

Note: (Oil Pump) (M6x45mm) Used After Code Date 08022600

$3.99

$

Usually ships in 2-12 days

0

596A

Briggs & Stratton 691492

SCREW

Note: (Oil Pump) (M6x30mm) Used Before Code Date 08022700

$3.99

$

In Stock, only 2 left!

0

614

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 806685

Crank-Governor

$30.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 842826

Seal-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 843960

Screen-Oil Pump

Note: Used After Code Date 08022600

$14.99

$

Usually ships in 2-12 days

0

1017A

Briggs & Stratton 690878

Screen-Oil Pump

Note: Used Before Code Date 08022700

$16.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 843959

Pump-Oil

Note: Used After Code Date 08022600

$96.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

Spool-Governor

$22.99

$

In Stock, only 2 left!

0

1516

Briggs & Stratton 846459

SCREW

Note: (Governor Crank)

$3.49

$

Usually ships in 2-12 days

0
