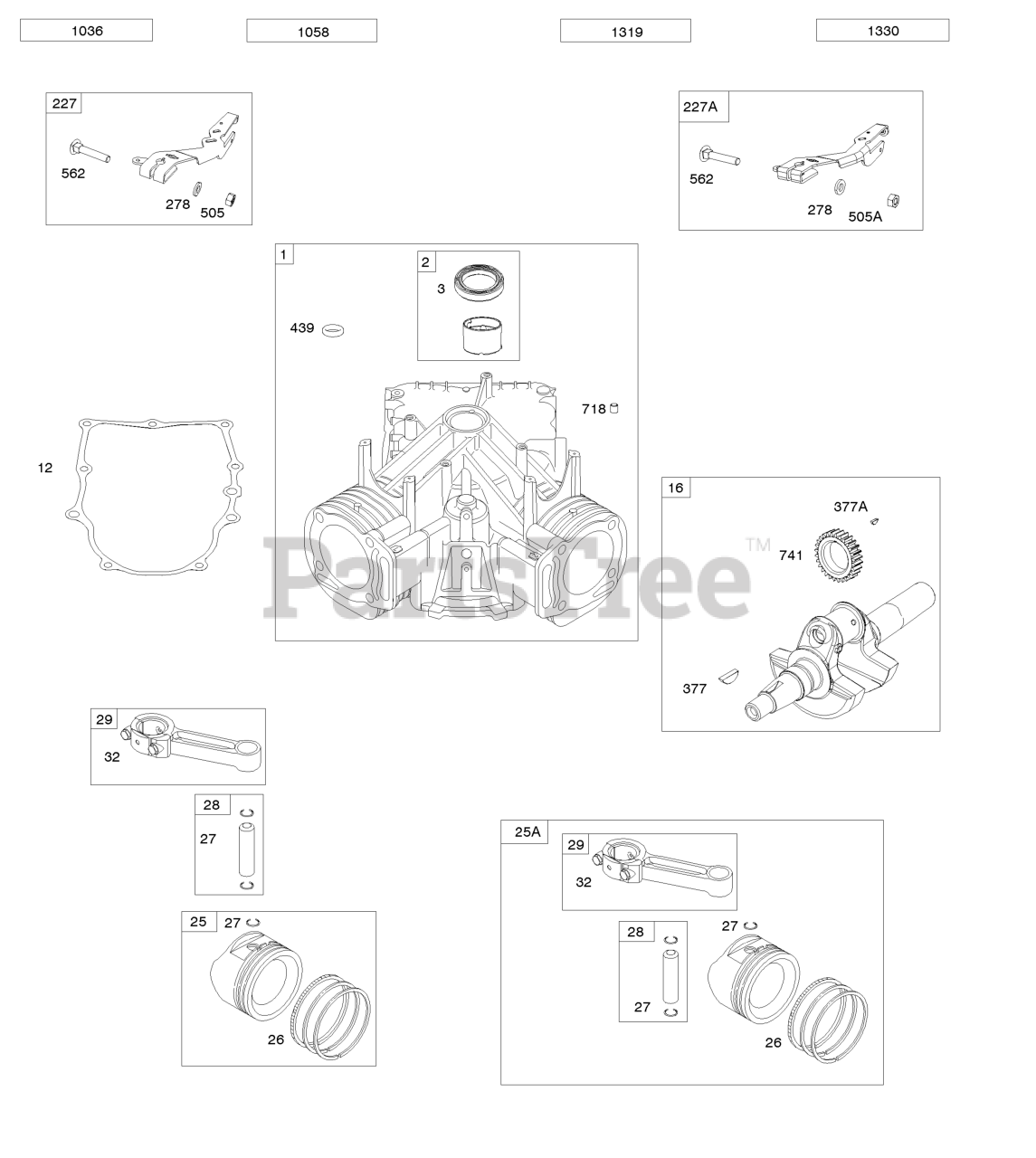

359770-0002-E1 - Briggs & Stratton Vertical Engine Cylinder, Piston/Rings/Connecting Rod, Crankshaft Parts Diagram

Vertical Engine

Cylinder, Piston/Rings/Connecting Rod, Crankshaft Parts Diagram

  • Title

1

Briggs & Stratton 845094

Cylinder Assembly

$564.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 845254

Gasket-Crankcase

Note: (Steel Core Gasket)

$45.99

$

In Stock, Qty 12

0

16

Briggs & Stratton 841934

Crankshaft

Note: Used Before Code Date 07063000

$397.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 843804

CRANKSHAFT

Note: Used After Code Date 07062900

$397.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 843792

Piston Assembly

Note: (Standard) Used After Code Date 07053100

$104.99

$

In Stock, only 3 left!

0

25

Briggs & Stratton 843821

Piston Assembly

Note: (.020" Oversize)

$133.99

$

Usually ships in 2-12 days

0

25A

Briggs & Stratton 844540

Piston Assembly

Note: (Standard) Used Before Code Date 07060100

$149.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843793

Ring Set

Note: (Standard)

$52.99

$

In Stock, Qty 16

0

26

Briggs & Stratton 843822

Ring Set

Note: (.020" Oversize)

$53.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807886

Pin-Piston

Note: Used Before Code Date 07060100

$16.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844541

Pin-Piston

Note: Used After Code Date 07053100

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 807900S

Rod-Connecting

$

$

Not available

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.49

$

In Stock, only 1 left!

0

227A

Briggs & Stratton 845484

Lever-Governor Control

$26.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 842122

Washer

Note: (Governor Control Lever)

$5.49

$

In Stock, only 4 left!

0

377

Briggs & Stratton 808095

Key-Woodruff

$13.99

$

Usually ships in 2-12 days

0

377A

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

505

Briggs & Stratton 690238

Nut

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

505A

Briggs & Stratton 844752

Nut

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690239

Bolt

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

741

Briggs & Stratton 846085

Gear-Timing

$19.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1058

Briggs & Stratton 80013302EN

Operator's Manual

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 3 left!

0
