359 - Husqvarna Chainsaw (SN: 20010100001 - 20014000000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

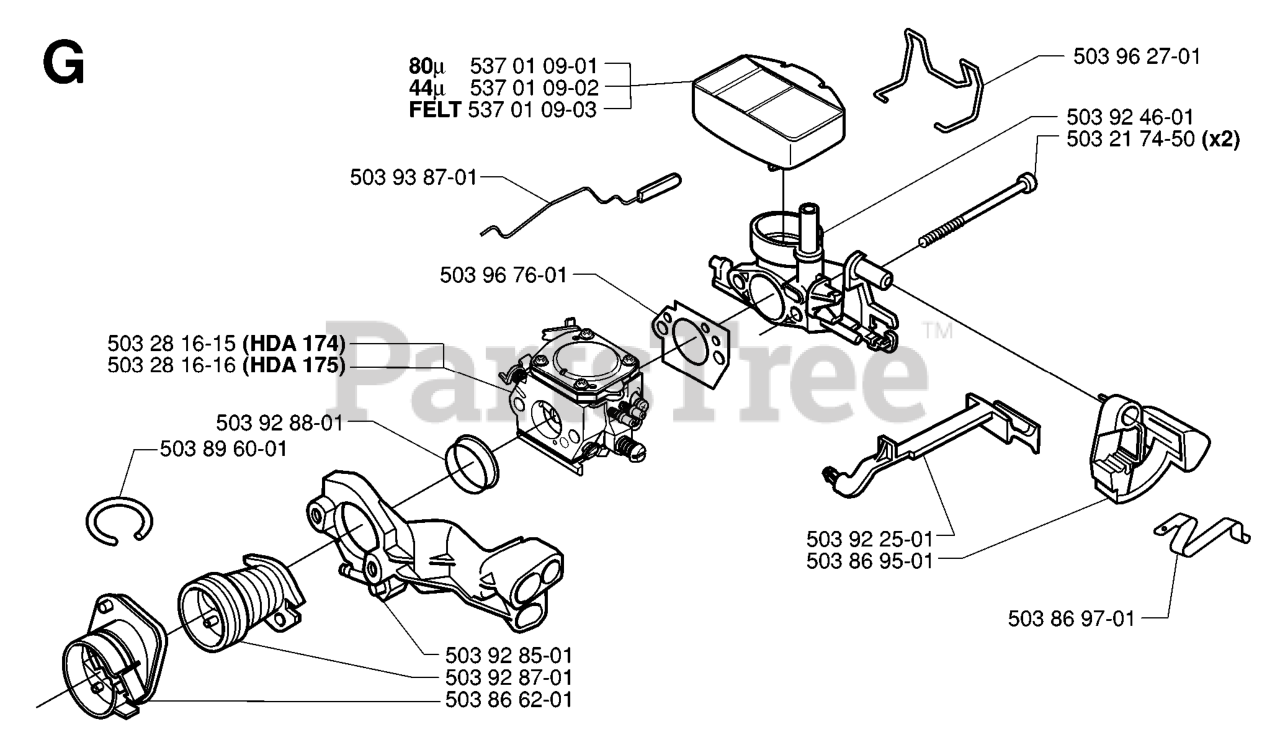

CARBURETOR & AIR FILTER Parts Diagram

  • Title

503 28 16-15

Husqvarna 503281615

CARBURETOR
(Superseded to 503281815)

Note: HDA 174

$148.99

$

In Stock, only 2 left!

0

503 96 27-01

Husqvarna 503962701

LOOP

$5.99

$

Usually ships in 3-10 days

0

503 86 97-01

Husqvarna 503869701

SPRING
(Superseded to 503869702)

$7.49

$

In Stock, Qty 7

0

503 89 60-01

Husqvarna 503896001

HOSE
(Superseded to 544325101)

$7.49

$

In Stock, only 3 left!

0

537 01 09-01

Husqvarna 537010901

AIR FILTER - NYLON (80)

$29.99

$

In Stock, only 1 left!

0

503 96 76-01

Husqvarna 503967601

GASKET

$2.49

$

Usually ships in 3-10 days

0

537 01 09-03

Husqvarna 537010903

AIR FILTER - FELT

Note: FELT

$28.99

$

In Stock, Qty 14

0

503 86 95-01

Husqvarna 503869501

ON/OFF & CHOKE CONTROL
(Superseded to 503869502)

$8.99

$

In Stock, only 1 left!

0

503 93 87-01

Husqvarna 503938701

THROTTLE ROD
(Superseded to 503938702)

$13.99

$

In Stock, Qty 7

0

503 92 87-01

Husqvarna 503928701

BELLOWS
(Superseded to 503928702)

$20.99

$

Usually ships in 3-10 days

0

503 92 88-01

Husqvarna 503928801

RING
(Superseded to 504064401)

$

$

Not available

503 92 46-01

Husqvarna 503924601

PIPE

$

$

Not available

503 92 85-01

Husqvarna 503928501

FLANGE
(Superseded to 503928502)

$5.99

$

In Stock, only 1 left!

0

503 21 74-50

Husqvarna 503217450

SCREW

$6.49

$

In Stock, Qty 5

0

537 01 09-02

Husqvarna 537010902

AIR FILTER - NYLON (44)

$31.99

$

Usually ships in 3-10 days

0

503 86 62-01

Husqvarna 503866201

PARTITION
(Superseded to 537251302)

$11.99

$

Usually ships in 3-10 days

0

503 92 25-01

Husqvarna 503922501

CHOKE CONTROL

$9.49

$

In Stock, only 2 left!

0

503 28 16-16

Husqvarna 503281616

CARBURETOR
(Superseded to 503281816)

Note: HDA 175

$

$

Not available
