359 - Husqvarna Chainsaw (2010-02) Ignition System Parts Diagram

Chainsaw

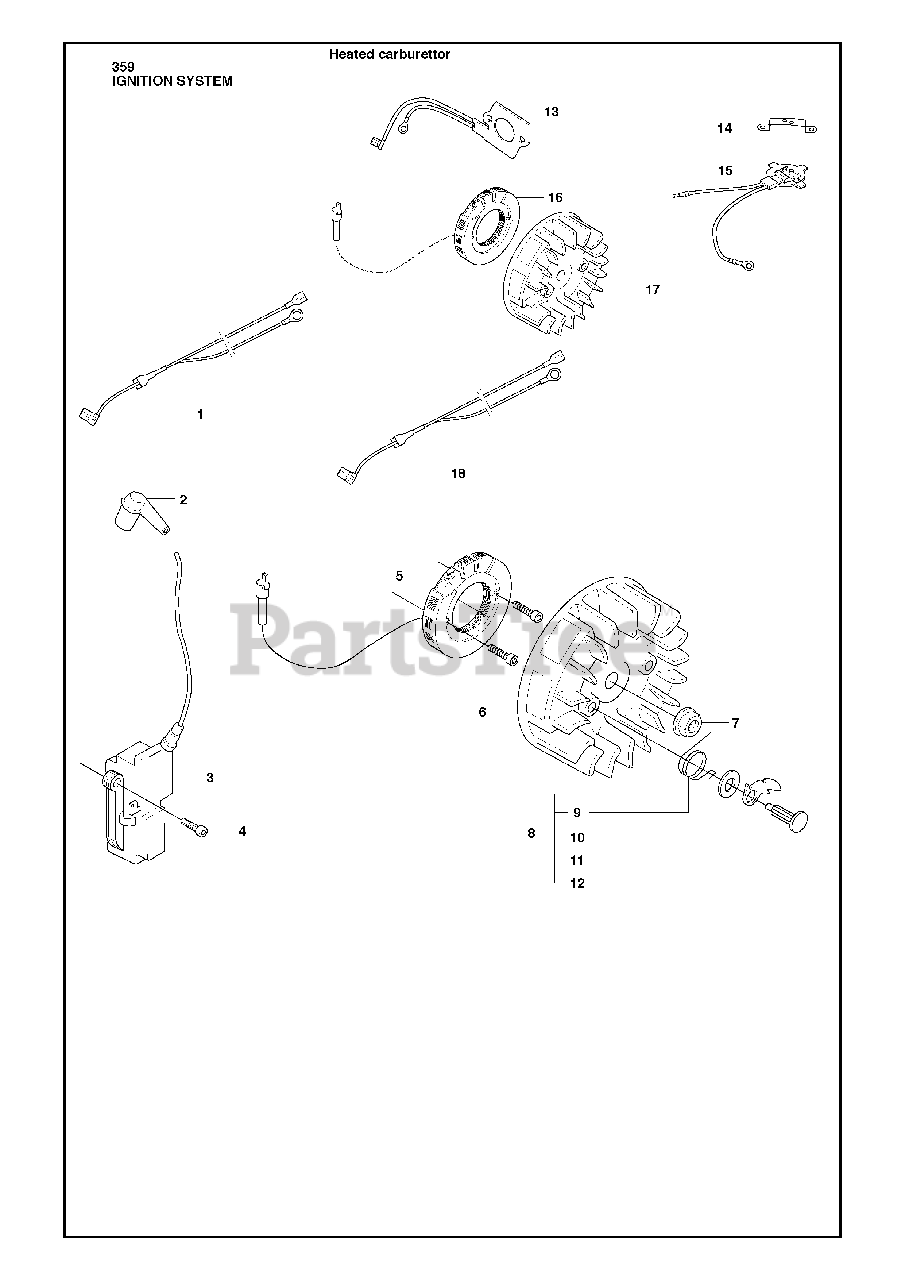

Ignition System Parts Diagram

  • Title

1

Husqvarna 503898701

CABLE ASSY

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0

3

Husqvarna 544047001

IGNITION MODULE

$121.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503215525

SCREW

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 537330201

GENERATOR

Note: G

$159.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503202516

SCREW

$3.49

$

In Stock, only 2 left!

0

7

Husqvarna 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 7

0

8

Husqvarna 503921801

FLYWHEEL

$249.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503921802

FLYWHEEL
(Superseded to 503921804)

Note: G

$249.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503818101

SPRING

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 537103601

PAWL

$

$

Not available

12

Husqvarna 501819903

SCREW

$9.99

$

In Stock, only 3 left!

0

13

Husqvarna 504043201

Heating Plate

Note: G

$48.46

$

Usually ships in 3-10 days

0

14

Husqvarna 537060402

RETAINER

Note: G

$

$

Not available

15

Husqvarna 501986301

THERMOSTAT ASSY

Note: G

$136.99

$

Usually ships in 3-10 days

0

16

Husqvarna 502609601

GENERATOR STATOR

Note: G, Heated carburettor

$107.31

$

Usually ships in 3-10 days

0

17

Husqvarna 503921803

FLYWHEEL
(Superseded to 503921805)

Note: G, Heated carburettor

$278.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503898705

WIRING ASSY

$12.68

$

Usually ships in 3-10 days

0
