359 50C (190-359-100) - Cub Cadet 50" Mower Deck Assembly for Super Garden Tractor Wheels & Mounting Brackets Parts Diagram

50" Mower Deck Assembly for Super Garden Tractor

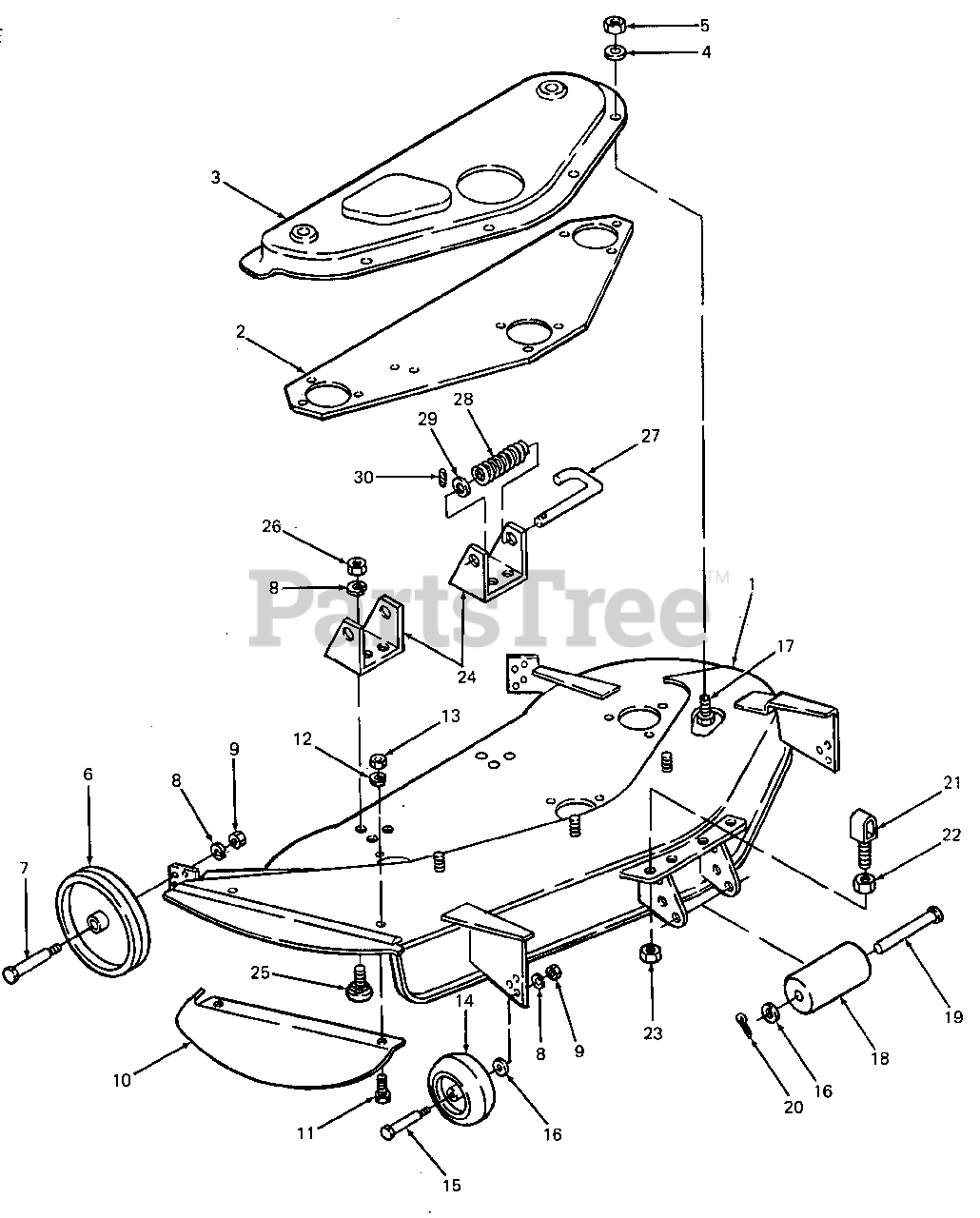

Wheels & Mounting Brackets Parts Diagram

  • Title

1

Cub Cadet 759-3252

Housing Assy, 50" Mower w/Graphics (Includes Ref No. 17 [Qty 8])

Variations

Cub Cadet 759-3252-0716

HSG-MOWER 50GT CUB YEL-99 - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 759-3252-0498

759-3252-0716 - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 777-2196

Graphic, Caution
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 777-6275

Graphic, Thrown Object

$

$

Currently unavailable

Cub Cadet 777-2551

Graphic, 50" Do Not Step

$

$

Currently unavailable

2

Cub Cadet 703-0137

Plate, Spindle Mtg.

$

$

Not available

3

Cub Cadet 703-0136

Cover, Mower Belt
(Superseded to 703-0136-0498)

Variations

Cub Cadet 703-0136-0498

COVER-BELT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 736-0275

Washer, Flat, .34 X .88 X .062

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 734-3000

Wheel, Plastic, 6"

$22.99

$

In Stock, Qty 8

0

7

Cub Cadet 738-3006

Screw, Shoulder

$22.99

$

In Stock, Qty 10

0

8

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3008

Nut, Hex, 3/8-16 GR5

$4.99

$

In Stock, Qty 19

0

10

Cub Cadet 703-0132

Deflector, Shield
(Superseded to 703-0132-0498)

Variations

Cub Cadet 703-0132-0498

Deflector Shield - OLD CUB YELLOW (0498)

$

$

Not available

$

$

11

Cub Cadet 710-3025

Screw, Hex Cap, 5/16-18 X .62 Lg GR5

$3.99

$

In Stock, Qty 8

0

12

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 734-3058

Wheel, 5" Deck
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

15

Cub Cadet 738-3056

Bolt, Shoulder
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .06

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3021

Screw, Hex Cutting, 5/16-18 X .62 Lg

$

$

Not available

18

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

19

Cub Cadet 711-3019

Pin, Clevis, 1/2 Dia X 7.0 Lg
(Superseded to 911-3019)

$29.99

$

In Stock, Qty 5

0

20

Cub Cadet 714-3002

Pin, Cotter, 3/16 Dia X 1.0 Lg

$3.99

$

In Stock, Qty 7

0

21

Cub Cadet 719-3009

Hanger, Front Mower Support
(Superseded to 919-3009)

$69.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-3015

Nut, Hex Jam, 5/8-11 GR5

$4.99

$

In Stock, only 2 left!

0

23

Cub Cadet 712-3016

Nut, Hex Insert Top Lock, 5/8-11 GR5 5/8-11 GR5

$6.99

$

In Stock, Qty 13

0

24

Cub Cadet 703-0101

Bracket, Mower Support

Variations

Cub Cadet 703-0101-0498

SUPPORT BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

$

$

25

Cub Cadet 710-3097

Bolt, Short Neck Carriage, 3/8-16 X 1.0 Lg GR5

$6.99

$

In Stock, Qty 5

0

26

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 747-3013

Pin, Mower Support

$22.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-3007

Spring, Compression
(Superseded to 932-3007)

$

$

Not available

29

Cub Cadet 736-0160

Washer, Flat, .531 X .930 X .050

$4.49

$

In Stock, only 2 left!

0

30

Cub Cadet 715-3003

Pin, Spirol Spring, 3/16 Dia X .75 Lg

$6.99

$

In Stock, Qty 9

0
