358447-0110-01 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

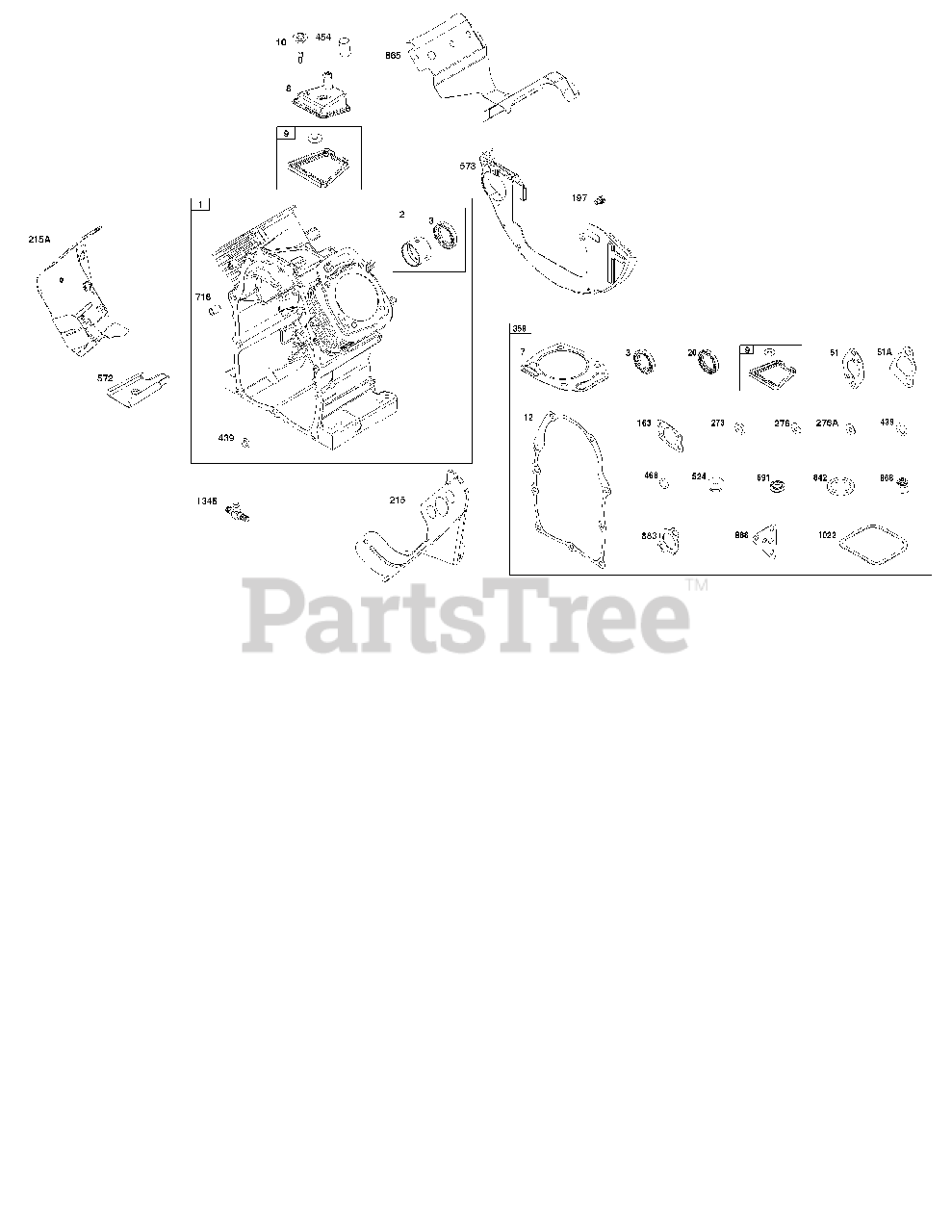

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 692544

Cylinder Assembly
(Superseded to 84003975)

$571.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

$

$

Not available

8

Briggs & Stratton 808984

Breather Assembly

$53.99

$

In Stock, Qty 16

0

9

Briggs & Stratton 844986

Gasket-Breather

$8.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 844986

Gasket-Breather

$8.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 690751

Screw

Note: (Breather Assembly)

$7.49

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

197

Briggs & Stratton 807163

Screw

Note: (Back Plate)

$3.99

$

In Stock, only 1 left!

0

215

Briggs & Stratton 841182

Cover-Cylinder Head

$35.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 841183

Cover-Cylinder Head

$40.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

276

Briggs & Stratton JUMPTO276

WASHER, Sealing

Note: (Part information located in Carburetor Group.)

$

$

Currently unavailable

276A

Briggs & Stratton JUMPTO276A

WASHER, Sealing

Note: (Part information located in Carburetor Group.)

$

$

Currently unavailable

358

Briggs & Stratton 841188

Gasket Set-Engine

$122.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

$5.99

$

In Stock, Qty 20+

0

454

Briggs & Stratton 693289

Cap-Breather

$9.49

$

Usually ships in 2-12 days

0

468

SEAL, O-Ring

$

$

Not available

524

SEAL, O-Ring

$

$

Not available

572

Briggs & Stratton 690686

Baffle-Breather

$14.99

$

In Stock, only 1 left!

0

573

Briggs & Stratton 841310

Plate-Back

$24.99

$

Usually ships in 2-12 days

0

691

SEAL, Governor Shaft

$

$

Not available

718

Briggs & Stratton 806459

PIN, Locating

$

$

Currently unavailable

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

865

Briggs & Stratton 843768

Cover-Air Guide

$39.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

988

Briggs & Stratton JUMPTO988

GASKET, Oil Adapter

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Currently unavailable

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1346

Briggs & Stratton 492031

Valve-Oil Drain Shut Off

$38.99

$

Usually ships in 2-12 days

0
