358 Ts - Shindaiwa Chainsaw (SN: C85115001001 - C85115999999) FUEL SYSTEM Parts Diagram

Chainsaw

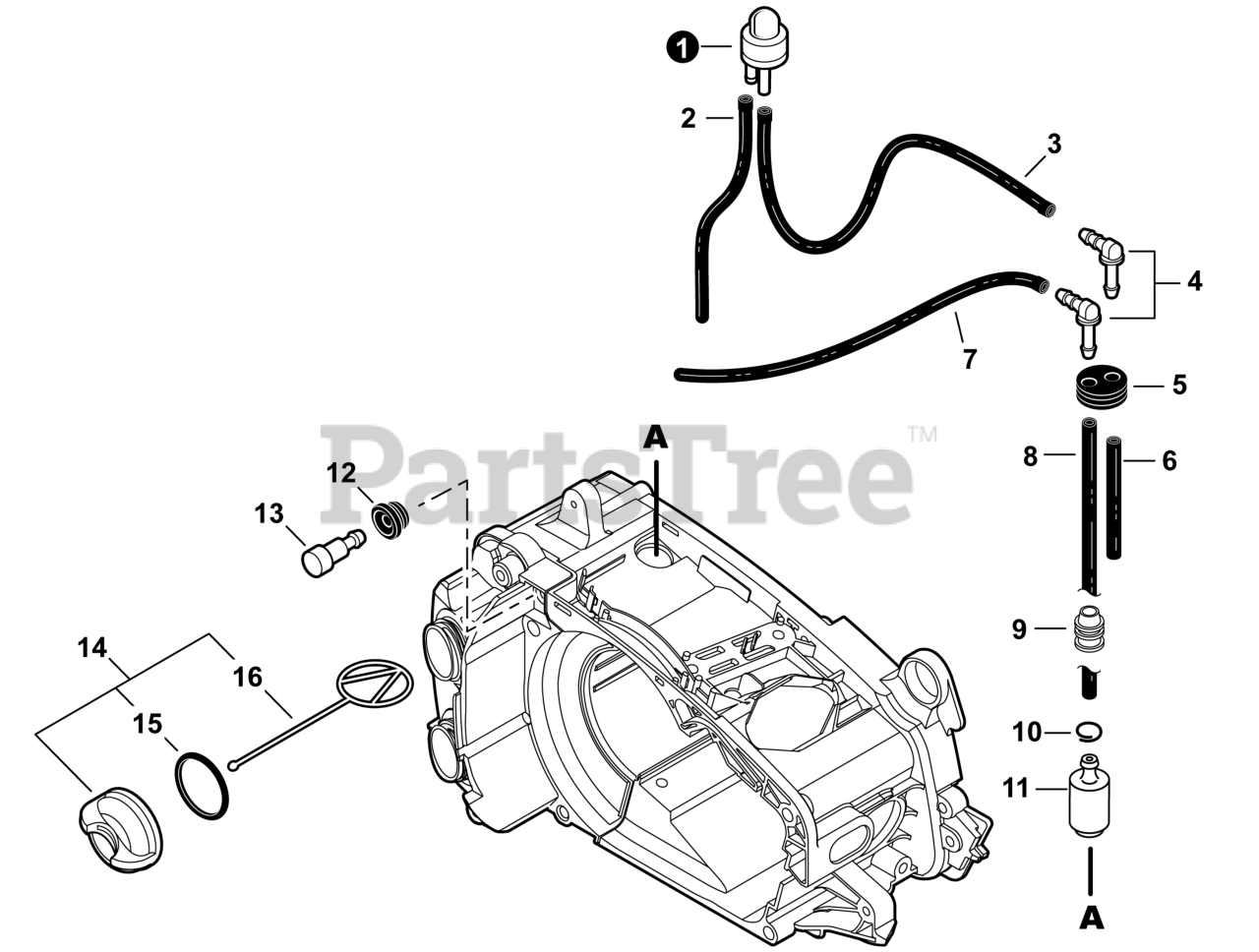

FUEL SYSTEM Parts Diagram

  • Title
1

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

2

Echo V471003401

PIPE 2.4x5x180 - BLACK

$2.99

$

Usually ships in 2-4 days

0

3

Echo V471003381

PIPE 2.4x5x400 - BLACK

$6.49

$

Usually ships in 2-4 days

0

4

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 16

0

5

Echo 13211544331

GROMMET, FUEL

$1.99

$

In Stock, Qty 20+

0

6

Echo V471003391

PIPE 2.4x5x15 - BLACK

$3.49

$

Usually ships in 2-4 days

0

7

Echo V471004151

PIPE 3x5x265 - BLACK

$11.99

$

Usually ships in 2-4 days

0

8

Echo V471002291

PIPE 3x5x140 - BLACK

$2.99

$

In Stock, only 1 left!

0

$1.99

$

In Stock, Qty 7

0

10

$0.99

$

Usually ships in 2-4 days

0

11

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

12

Echo V137000001

GROMMET, FUEL

$1.49

$

In Stock, only 2 left!

0

13

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

14

Echo P021049980

CAP ASSY, FUEL

Note: Includes Items 14-15

$8.99

$

Usually ships in 2-4 days

0

15

$0.99

$

In Stock, Qty 20+

0

16

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
