358 Ts - Shindaiwa Chainsaw (SN: C35813001001 - C35813999999) Chain Brake Parts Diagram

Chainsaw

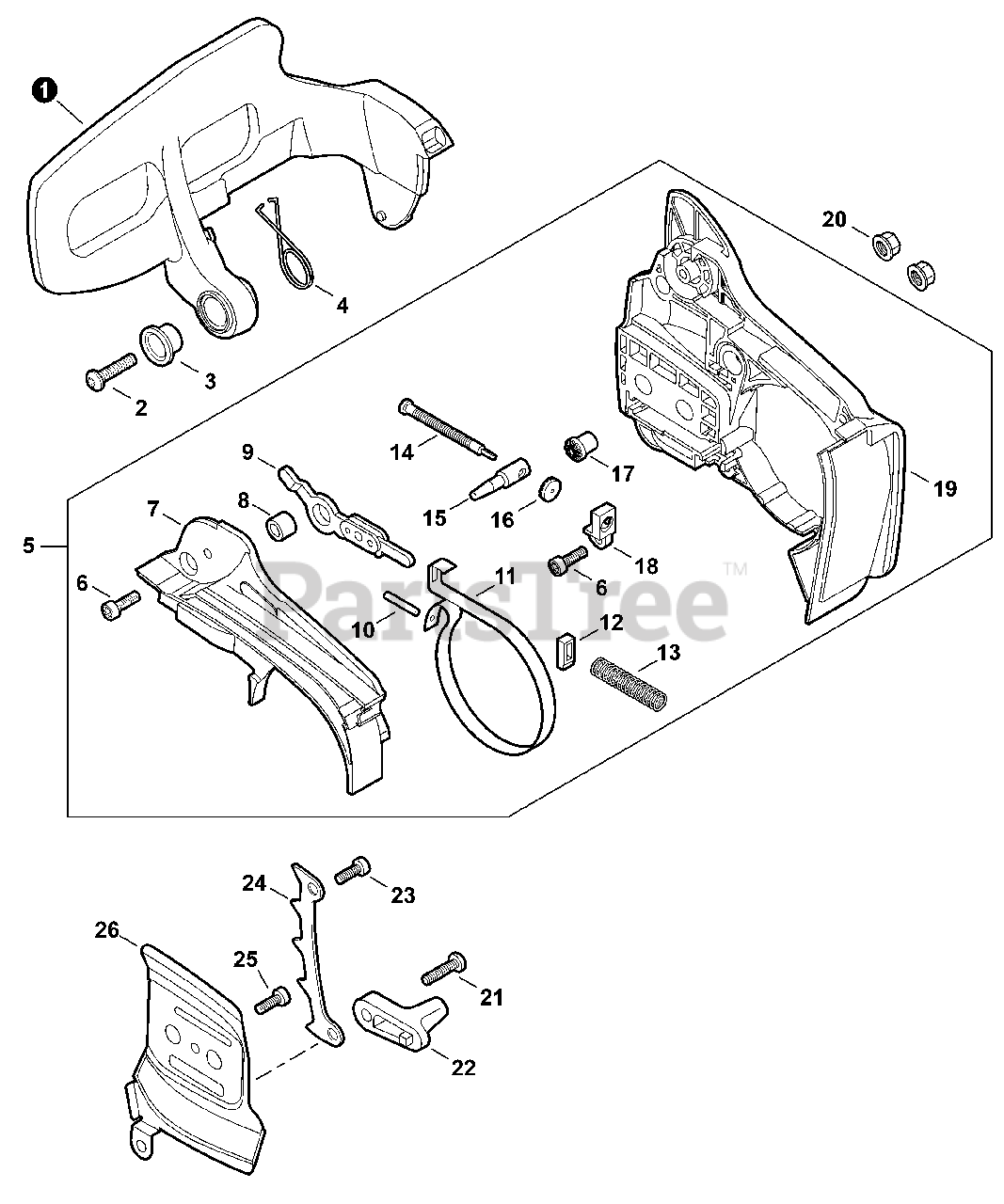

Chain Brake Parts Diagram

  • Title

1

Echo C320000501

LEVER, BRAKE

$31.99

$

In Stock, only 1 left!

0

2

Echo V805000240

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

3

Echo V356000430

COLLAR 10

$2.49

$

In Stock, Qty 6

0

4

Echo V452001380

SPRING, TORSION

$2.49

$

In Stock, only 1 left!

0

5

Echo P021050000

BRAKE ASSY, CHAIN

Note: Includes Items 6-19

$81.99

$

Usually ships in 2-4 days

0

6

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

7

Echo C345000590

COVER, BRAKE

$7.49

$

Usually ships in 2-4 days

0

8

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, only 2 left!

0

9

Echo C334000290

CONNECTOR, BRAKE

$12.99

$

Usually ships in 2-4 days

0

10

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

11

Echo C328000310

BAND, BRAKE

$11.99

$

In Stock, Qty 12

0

12

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

13

Echo V450000070

SPRING, COMPRESSION

$2.49

$

In Stock, only 1 left!

0

14

Echo V203000041

BOLT 5

$5.99

$

In Stock, only 4 left!

0

15

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

16

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 19

0

17

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

18

Echo V355000140

COLLAR 8

$0.99

$

In Stock, Qty 20+

0

19

Echo C300001020

GUARD, SPROCKET

$40.99

$

In Stock, only 3 left!

0

20

Echo V265000200

NUT 8

$1.99

$

In Stock, Qty 20+

0

21

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

22

Echo 43302635430

CHAIN CATCHER

$1.99

$

In Stock, Qty 17

0

23

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

24

Echo C304000000

SPIKE, BUMPER

$4.49

$

In Stock, only 4 left!

0

25

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

26

Echo C305000430

PLATE, GUIDE - INNER

$9.99

$

In Stock, Qty 20+

0
