358 Ts - Shindaiwa Chainsaw (SN: C35714001001 - C35714999999) Oil System Parts Diagram

Chainsaw

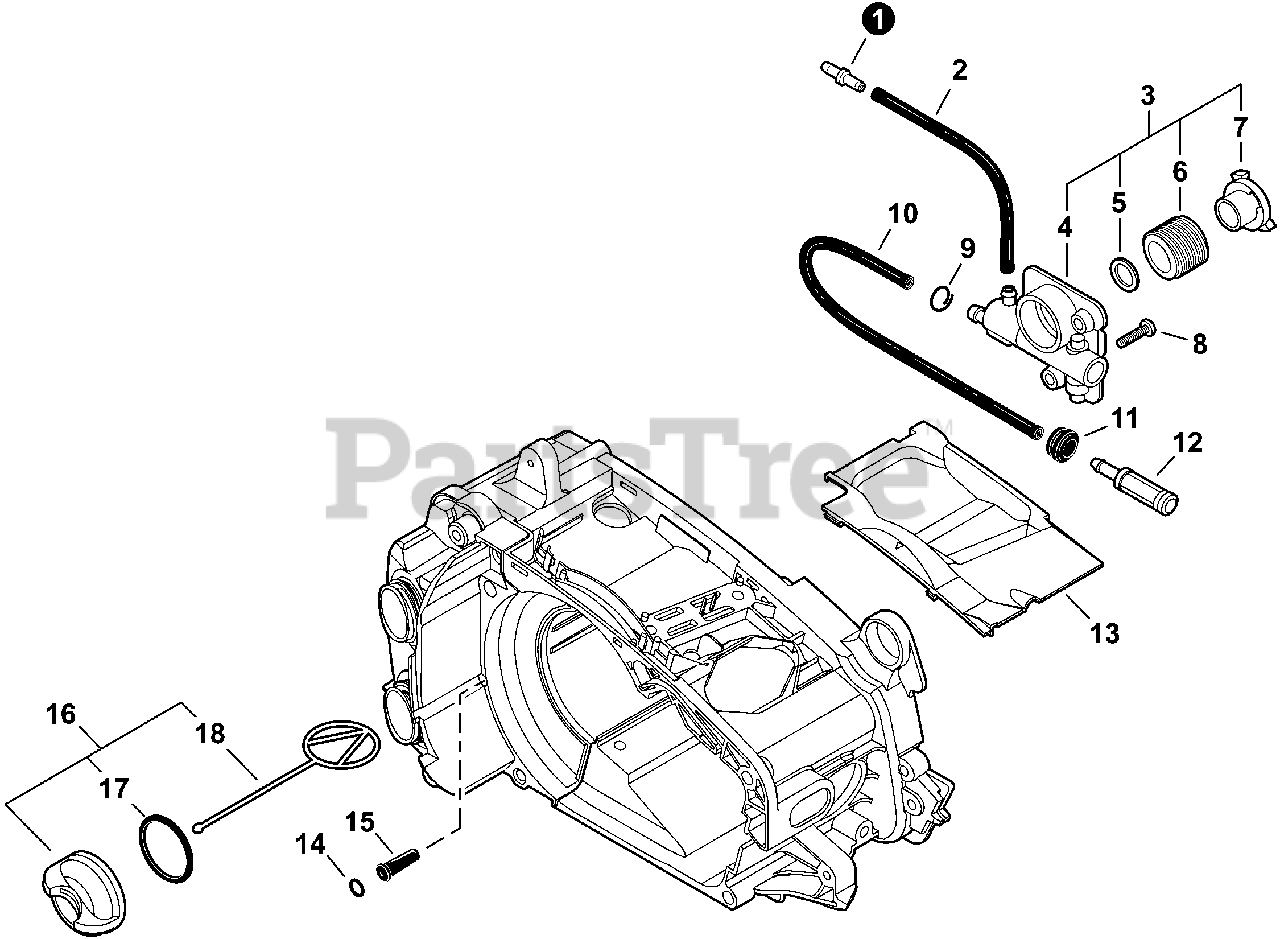

Oil System Parts Diagram

  • Title

1

Echo V187000010

CONNECTOR, PIPE

$4.99

$

In Stock, only 1 left!

0

2

Echo 13201211960

PIPE, 3×6×45 BLACK
(Superseded to 13201211961)

$4.99

$

Usually ships in 2-4 days

0

3

Echo P021010890

AUTO-OILER ASSY

Note: Includes Items 4-7

$71.99

$

In Stock, Qty 10

0

4

Echo C022000020

AUTO-OILER

$57.99

$

In Stock, only 1 left!

0

5

Echo V308000030

WASHER 10.5×17.4×1.8

$2.99

$

In Stock, only 1 left!

0

6

Echo V652000030

GEAR, WORM

$11.99

$

In Stock, only 1 left!

0

7

Echo V356000290

COLLAR 10

$3.49

$

In Stock, only 2 left!

0

8

Echo V804000050

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

9

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

10

Echo V471000740

PIPE, OIL 3×6×160
(Superseded to V471000741)

$1.49

$

In Stock, only 3 left!

0

11

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

12

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

13

Echo A127000410

COVER, DUST
(Superseded to A127000411)

$2.99

$

In Stock, only 2 left!

0

14

Echo 90072400004

O-RING S-4

$1.99

$

In Stock, only 3 left!

0

15

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

16

Echo P021005581

CAP ASSY, BLACK

Note: Includes Items 17-18

$7.49

$

In Stock, Qty 20+

0

17

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

18

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0
