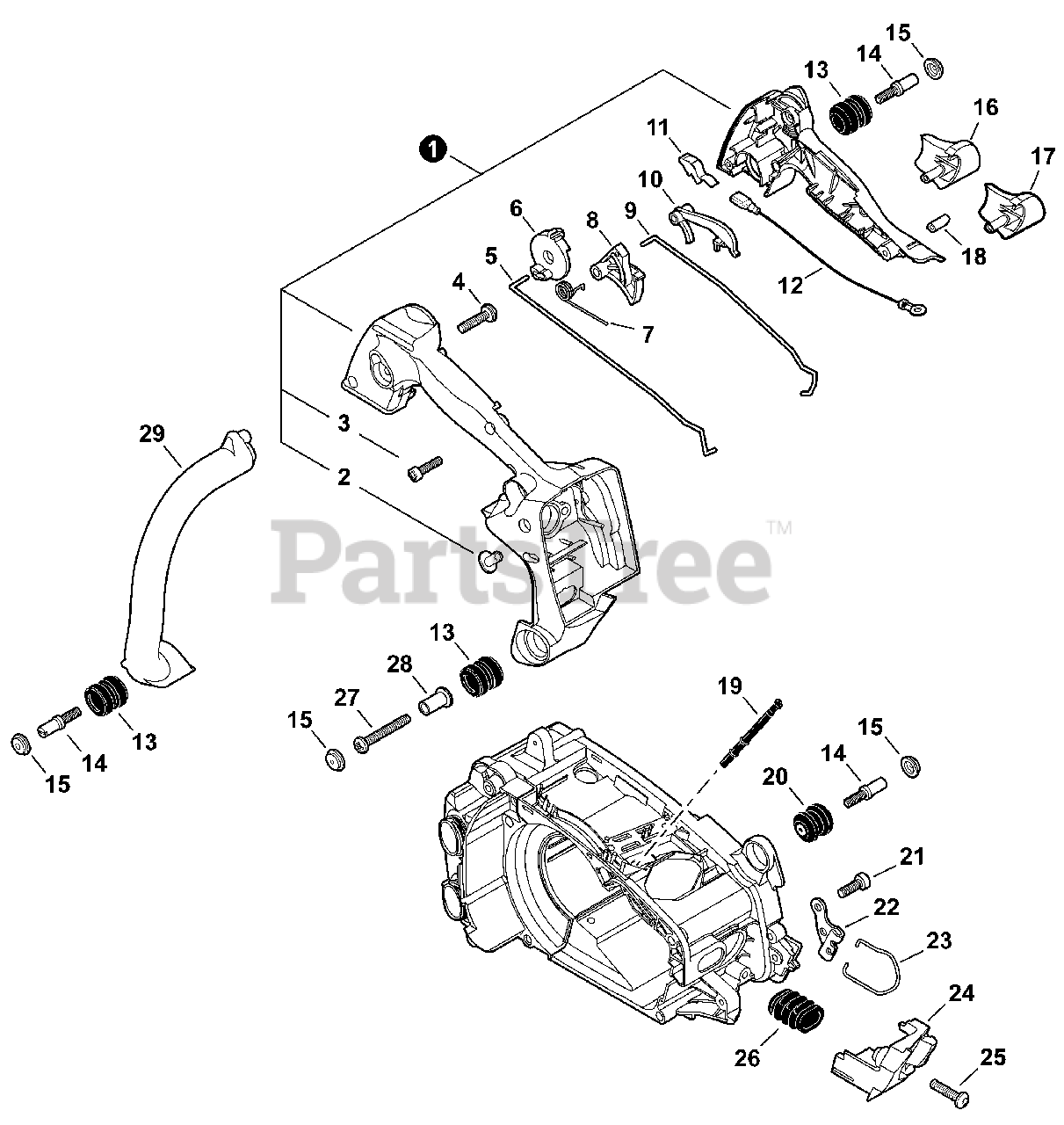

358 Ts - Shindaiwa Chainsaw (SN: C35714001001 - C35714999999) Handles, Throttle Control Parts Diagram

Chainsaw

Handles, Throttle Control Parts Diagram

  • Title

1

Echo P021046301

HANDLE SET, REAR

Note: Includes Items 2-3

$20.99

$

Usually ships in 2-4 days

0

2

Echo 13002033330

NUT 5

$3.49

$

In Stock, Qty 5

0

3

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 16

0

4

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

5

Echo A240000200

ROD, CHOKE

$5.49

$

In Stock, only 1 left!

0

6

Echo A253000130

LEVER, CONTROL

$5.99

$

Usually ships in 2-4 days

0

7

Echo V452000010

SPRING, TORSION

$1.49

$

In Stock, Qty 13

0

8

Echo C450000850

TRIGGER, THROTTLE

$11.99

$

Usually ships in 2-4 days

0

9

Echo C454000491

ROD, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

10

Echo C460000041

LOCKOUT, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

11

Echo V486000371

TERMINAL, GROUND

$4.49

$

In Stock, only 1 left!

0

12

Echo V485002441

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

13

Echo V400000070

CUSHION 4

$9.49

$

In Stock, Qty 20+

0

14

Echo V202000000

BOLT 4×12

$5.99

$

In Stock, Qty 17

0

15

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

16

Echo C401000340

SUPPORT, HANDLE - LARGE

$3.99

$

Usually ships in 2-4 days

0

17

Echo C401000300

SUPPORT, HANDLE - SMALL

$4.99

$

Usually ships in 2-4 days

0

18

Echo C401000330

PLUG

$2.99

$

Usually ships in 2-4 days

0

19

Echo V470001910

PIPE, PULSE 3×7×80

$3.49

$

In Stock, only 1 left!

0

20

Echo 10091018830

CUSHION
(Superseded to 10092139130)

$8.49

$

In Stock, Qty 8

0

21

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

22

Echo C626000070

BRACKET, STRAP

$3.99

$

Usually ships in 2-4 days

0

23

Echo C646000100

RING, HARNESS

$2.99

$

In Stock, only 1 left!

0

24

Echo A429000160

COVER

$4.99

$

Usually ships in 2-4 days

0

25

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

26

Echo A239000000

BELLOWS, INTAKE

$3.99

$

Usually ships in 2-4 days

0

27

Echo 9148104035

SCREW, TAPPING 4×35

$0.99

$

In Stock, Qty 6

0

28

Echo V352000020

COLLAR 4

$2.99

$

In Stock, Qty 7

0

29

Echo C400001150

HANDLE, FRONT

$28.99

$

In Stock, Qty 5

0
