35777A-0113-E1 - Briggs & Stratton Vertical Engine Engine Sump, Cylinder, Gasket Set - Engine, Piston, Rings, Connecting Rod Parts Diagram

Vertical Engine

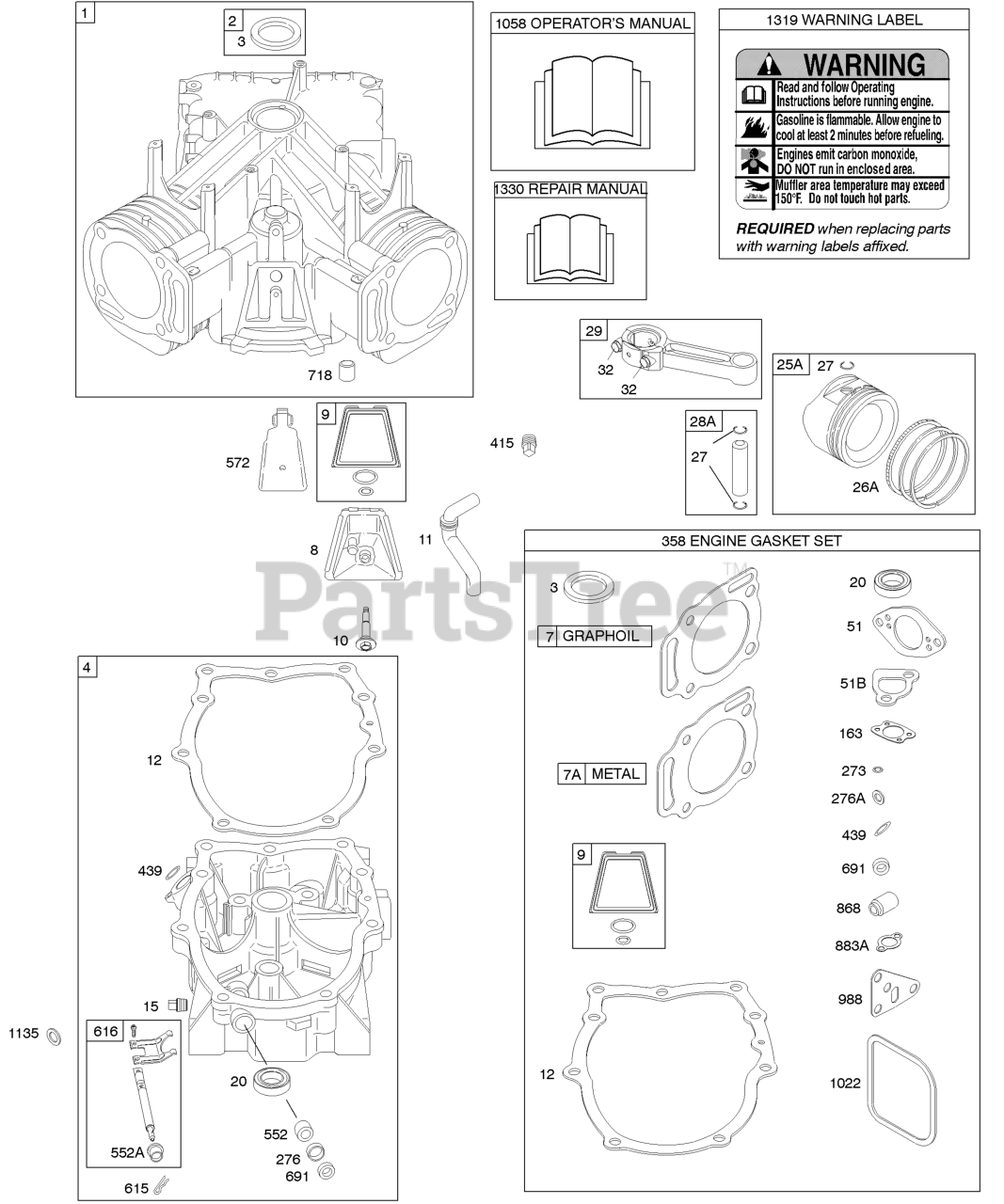

Engine Sump, Cylinder, Gasket Set - Engine, Piston, Rings, Connecting Rod Parts Diagram

  • Title

1

Briggs & Stratton 809180

Cylinder Assembly

$436.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 808846

Sump-Engine
(Superseded to 843954)

$208.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 690888

Gasket-Cylinder Head
(Superseded to 845884)

Note: (Graphoil)

$30.99

$

In Stock, Qty 6

0

7A

Briggs & Stratton 805653S

Gasket-Cylinder Head

Note: (Metal)

$35.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 808988

Breather Assembly

$38.99

$

In Stock, Qty 7

0

9

Briggs & Stratton 809094

Gasket-Breather
(Superseded to 844986)

$8.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 690751

Screw

Note: (Breather Assembly)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 806083S

Tube-Breather

$16.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 846487

Gasket-Crankcase

$41.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (Square Head)

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

25A

Briggs & Stratton 808337

Piston Assembly
(Superseded to 843821)

Note: (.020 Oversize)

$133.99

$

Usually ships in 2-12 days

0

25A

Briggs & Stratton 808326

Piston Assembly
(Superseded to 844540)

Note: (Standard)

$149.99

$

Usually ships in 2-12 days

0

26A

Briggs & Stratton 807995

Ring Set
(Superseded to 843822)

Note: (.020 Oversize)

$53.99

$

Usually ships in 2-12 days

0

26A

Briggs & Stratton 807889

Ring Set
(Superseded to 843793)

Note: (Standard)

$52.99

$

In Stock, Qty 16

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28A

Briggs & Stratton 807886

Pin-Piston

$16.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807803

Rod-Connecting

Note: (.020" Undersize)

$65.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900S

Rod-Connecting

Note: (Standard)

$

$

Not available

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.49

$

In Stock, only 1 left!

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: (Manifold/Carburetor Spacer)

$2.99

$

In Stock, Qty 20+

0

51B

Briggs & Stratton 692035

Gasket-Intake

Note: (Manifold/Heads)

$3.49

$

In Stock, Qty 17

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

Note: (Used With Metal Air Cleaner Base)

$5.49

$

In Stock, only 2 left!

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 690704

Washer-Sealing

Note: (Crankcase Cover/Sump)

$5.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: (Rocker Cover) Used Before Code Date 01120300

$6.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover) Used After Code Date 01120200

$3.99

$

In Stock, Qty 17

0

358

Briggs & Stratton 808389

Gasket Set-Engine
(Superseded to 847319)

Note: Used Before Code Date 01120300

$123.99

$

In Stock, only 2 left!

0

358

Briggs & Stratton 841188

Gasket Set-Engine

Note: Used After Code Date 01120200

$122.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 690283

Plug
(Superseded to 794903)

Note: (Square Head)

$5.49

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump) or (Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

552

Briggs & Stratton 690701

Bushing-Governor Crank

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 806686

Bushing-Governor Crank

$8.49

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 690686

Baffle-Breather

$14.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 806685

Crank-Governor

$30.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 690680

Seal-Governor Shaft
(Superseded to 842826)

$7.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883A

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 4 left!

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1058

Briggs & Stratton 277107

Operator's Manual

$5.49

$

Usually ships in 2-12 days

0

1135

Briggs & Stratton 806497

Washer

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 3 left!

0
