35777A-0113-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Pump, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

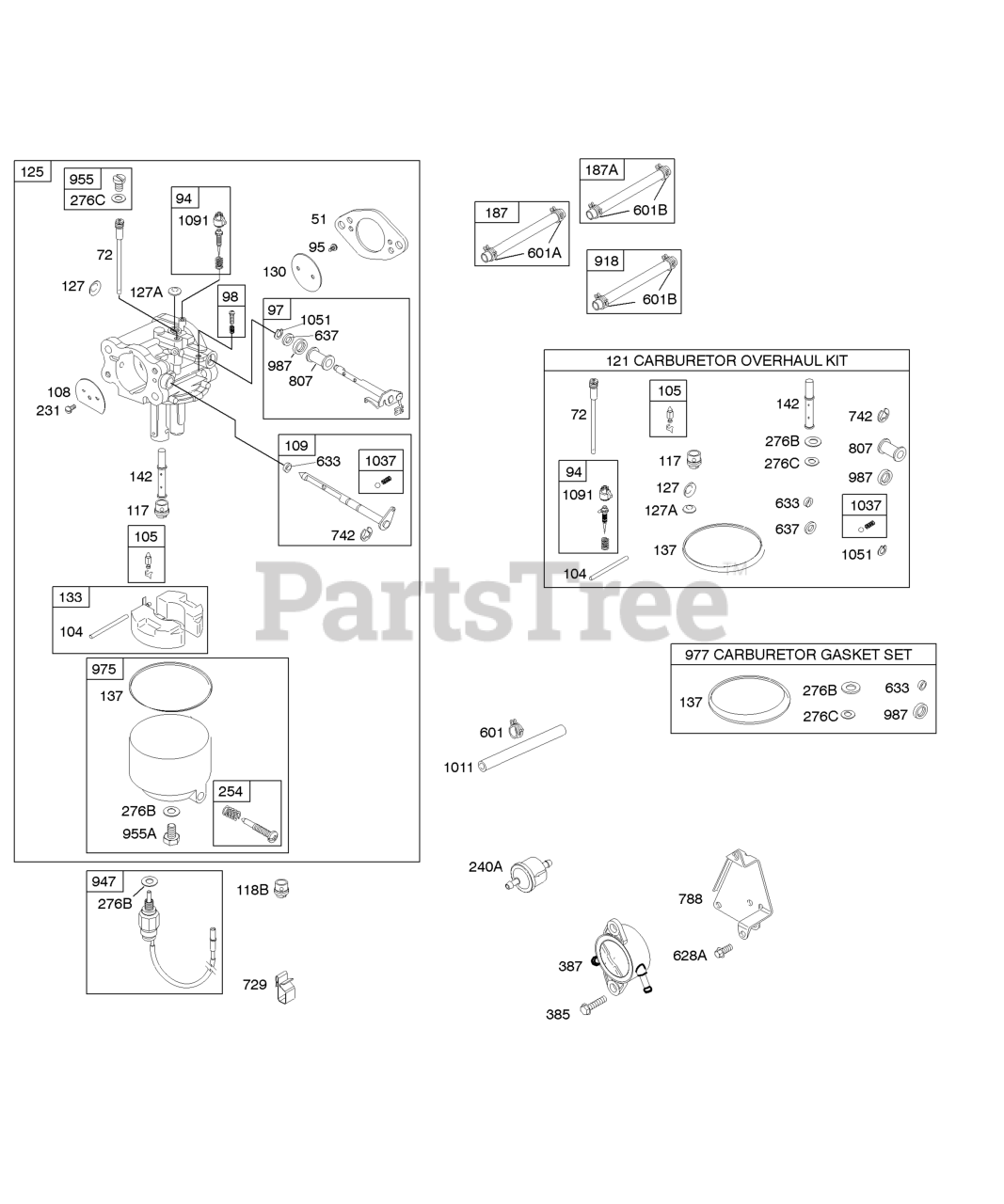

Carburetor, Fuel Pump, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 691694

Gasket-Intake

Note: (Manifold/Carburetor Spacer)

$2.99

$

In Stock, Qty 20+

0

72

Briggs & Stratton 806480

Tube-Jet

$31.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 808374

Kit-Idle Mixture
(Superseded to 842885)

$42.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690728

Screw
(Superseded to 690718)

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 808375

Shaft-Throttle

$52.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 807705

Kit-Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690739

Pin-Float Hinge

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 807706

Valve-Float Needle

$41.99

$

In Stock, Qty 7

0

108

Briggs & Stratton 690729

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 807711

Shaft-Choke

$32.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 806471

Jet-Main

Note: (Standard)

$18.99

$

Usually ships in 2-12 days

0

118B

Briggs & Stratton 809693

Jet-Main

Note: (High Altitude)

$

$

Not available

121

Briggs & Stratton 842886

Kit-Carb Overhaul

$202.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 808725

Carburetor

$

$

Not available

127

Briggs & Stratton 690730

Plug-Welch
(Superseded to 690731)

Note: (9mm Diameter)

$7.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 690731

Plug-Welch

Note: (6.9mm Diameter)

$7.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 806470

Valve-Throttle

$10.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 807710

Float-Carburetor

$41.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 806481

Gasket-Float Bowl

$13.99

$

In Stock, Qty 11

0

142

Briggs & Stratton 691555

Nozzle-Carburetor

Note: (Standard)

$39.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 841858

Line-Fuel
(Superseded to 842459)

Note: (Cut To Required Length)

$

$

Not available

231

Briggs & Stratton 690728

Screw
(Superseded to 690718)

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240A

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

Note: (Includes Paper Element With A 40 Micron Rating)

$7.99

$

In Stock, Qty 20+

0

254

Briggs & Stratton 807713

Drain-Carburetor Bowl
(Superseded to 807715)

$100.99

$

In Stock, only 1 left!

0

276B

Briggs & Stratton 806476

Washer-Sealing

Note: (Float Bowl)

$6.99

$

In Stock, only 2 left!

0

276C

Briggs & Stratton 806477

Washer-Sealing

Note: (Carburetor Plug)

$7.99

$

In Stock, only 1 left!

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 7

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691638

Clamp-Hose

Note: (Silver)

$4.99

$

Usually ships in 2-12 days

0

601A

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

601B

Briggs & Stratton 841859

Clamp-Hose

Note: (Silver)

$4.49

$

Usually ships in 2-12 days

0

628A

Briggs & Stratton 806660

Screw

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 690738

Seal-Choke/Thr Shaft

$11.99

$

Usually ships in 2-12 days

0

637

Briggs & Stratton 690735

Washer

Note: (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 807136

Clip-Wire

Note: (Black)(Spring Steel)

$4.49

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 805578

Retainer-E Ring

$4.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

807

Briggs & Stratton 690733

Spacer-Throttle

$15.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 393815

Hose-Vacuum
(Superseded to 791880)

Note: (Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 806472

Solenoid-Fuel

$166.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 807714

Plug-Carburetor

$7.99

$

Usually ships in 2-12 days

0

955A

Briggs & Stratton 691511

Plug-Carburetor

$10.99

$

In Stock, only 2 left!

0

975

Briggs & Stratton 807715

Bowl-Float

$100.99

$

In Stock, only 1 left!

0

977

Briggs & Stratton 808325

Gasket Set-Carburetor
(Superseded to 807962)

$

$

Not available

987

Briggs & Stratton 691548

Seal-Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

1011

Briggs & Stratton 692929

Tube-Vent

Note: (Cut To Required Length)

$8.99

$

Usually ships in 2-12 days

0

1037

Briggs & Stratton 807717

Ball-Choke Locator
(Superseded to 807711)

$32.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 690736

Ring-Retaining

$6.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691515

Cap-Limiter

$8.99

$

Usually ships in 2-12 days

0
